Portable digital manometer for simple pressure measurements

PC Mano Series Manometer [portable digital manometer]

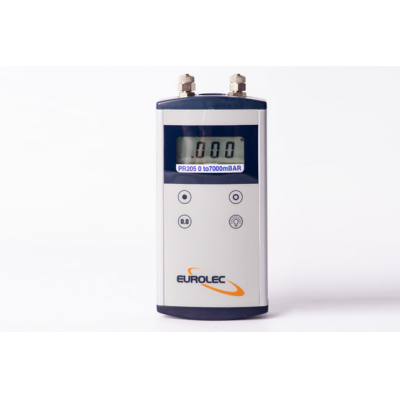

Eurolec portable digital manometer

Eurolec Instrumentation is a market leading manufacturer of portable digital manometers.

The PC Mano Series manometer is a range of compact, professional, high quality, and lightweight handheld manometer. They are suitable for vacuum, gauge, differential, and absolute pressure measurements.

The handheld manometers have a battery that can last up to 350 hours, auto-shutdown, auto-ranging, a backlit display, and a water-resistant screen. It is the most advanced manometer available.

The PC Mano Series covers differential pressure measurements ranging from 0-20mBar to 0-7000mBar (7Bar). This makes them ideal for a range of applications, including tank level measurements, HVAC, measuring gas flow, process industry pressure measurements, air flow, and clean rooms.

Each device comes with a two-year warranty.


Features of the portable digital manometer:

Wide range A variety of professional, compact, and lightweight thermometers and probes provide features useful for many different applications.
Smooth, water-proof surface

A hygienic surface makes it ideal for food manufacturing, HACCP compliance, and pharmaceutical and laboratory environments.

Long battery life It can last up to 350 hours, and can enable auto-shutdown to conserve battery life.
Auto-ranging It can change the settings itself which means the user does not need to do it manually.
Backlit display A simple-to-use display makes it suitable for all environments, situations, and applications. It also saves power.
Compact

It is small and compact at 137mm x 69mm x 27mm.

Wide range of pressure measurements A differential pressure range covering 0 - 20mBar up to 0 - 7000mBar (7Bar) makes it suitable for a wide range of applications and environments.
Guaranteed quality A 2-year warranty guarantees it is a future investment.

Technical information about the portable digital manometer:

Eurolec Instruments manufactures the PC Mano P1, P2, P3, P4, P5, and P6.

Specification PC Mano P1 PC Mano P2 PC Mano P3 PC Mano P4 PC Mano P5 PC Mano P6
Instrument type Handheld manometer Handheld manometer Handheld manometer Handheld manometer Handheld manometer Handheld manometer
Case type Lightweight water-proof case Lightweight water-proof case Lightweight water-proof case Lightweight water-proof case Lightweight water-proof case Lightweight water-proof case
Range 0 – 20mBaR differential 0 – 100mBaR differential 0 – 500mBaR differential 0 – 1000mBaR differential 0 – 2000mBaR differential 0 – 7000mBaR differential
Resolution 0.01 0.01/0.1 0.1/1 0.1/1 0.1/1 0.001/0.01
Units mBar, Pa, inH20 mBar, Pa, inH20 mBar, Pa, inH20, PSI mBar, Pa, inH20, PSI mBar, Pa, inH20, PSI mBar, Pa, inH20, PSI
Accuracy

± 0.25% full scale ±

1 digit

± 0.25% full scale ±

1 digit

± 0.25% full scale ±

1 digit

± 0.25% full scale ±

1 digit

± 0.25% full scale ±

1 digit

± 0.25% full scale ±

1 digit
Maximum overpressure 50mBar 750mBar 2000mBar 2000mBar 4000mBar 10 Bar
Power supply 9v PP3 (MN1604) 9v PP3 (MN1604) 9v PP3 (MN1604) 9v PP3 (MN1604) 9v PP3 (MN1604) 9v PP3 (MN1604)
Operating temperature 5°C to +40°C 5°C to +40°C 5°C to +40°C 5°C to +40°C 5°C to +40°C 5°C to +40°C
Dimensions 137mm x 69mm x 27mm 137mm x 69mm x 27mm 137mm x 69mm x 27mm 137mm x 69mm x 27mm 137mm x 69mm x 27mm 137mm x 69mm x 27mm

Optional accessories for the portable digital manometer:

  • System calibration certificates traceable to NPL (UK).
  • Pressure pump, hose, and T piece for calibration purposes.
  • THCC executive style carrying case.
  • THCCS carrying pouch with belt clip.
