Dry block temperature calibrator

CS and CSEC series thermometer probe calibration service [manufacturer of temperature calibration equipment]

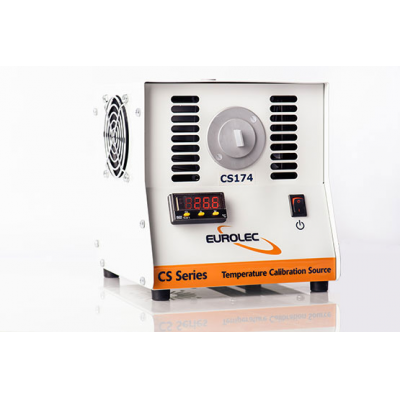

Eurolec Dry block temperature calibrator

Eurolec Instrumentation is a market leading manufacturer of dry block temperature calibrators. The CS and CSEC series is a range of cost-effective and accurate temperature calibration sources for probe thermometers.

The portable dry block calibrators feature a range of temperature calibration sources. These are suitable for laboratory and on-site thermometer calibration. They cover temperatures ranging from -20°C to 650°C, which makes it suitable for a wide range of applications.

The dry well calibrators feature a PID Controller with a platinum film sensor which makes it reliable and accurate. The CS and CSEC Series thermometer probes comply with the ISO9001 and HACCP quality standards.


The technical information of the CS series dry block temperature calibrator is:

Specification CS173 CS174 CS174-IN CS175 CS175-IN
Range +30°C to +200°C 40°C below ambient to +85°C 40°C below ambient to +85°C 40°C below ambient to +85°C 40°C below ambient to +85°C
Accuracy 0.1°C 0.1°C 0.1°C 0.01°C 0.01°C
Emissivity ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit ± 0.05°C ± 1 digit ± 0.05°C ± 1 digit
Stability Better than 0.03°C Better than 0.03°C Better than 0.03°C Better than 0.03°C Better than 0.03°C
Heating time 30°C to 150°C, 15 minutes 20°C to 60°C, 6 minutes 20°C to 60°C, 6 minutes 20°C to 150°C, 15 minutes 20°C to 150°C, 15 minutes
Cooling time Non-forced 20°C to 0°C, 7 minutes 20°C to 0°C, 7 minutes 20°C to 0°C, 7 minutes 20°C to 0°C, 7 minutes
Power supply 110vAC or 220vAC 110vAC or 220vAC 110vAC or 220vAC 110vAC or 220vAC 110vAC or 220vAC
Operating temperature +5°C to +40°C +5°C to +40°C +5°C to +40°C +5°C to +40°C +5°C to +40°C
Weight 4kg 4.2kg 4.2kg 4.2kg 4.2kg
Dimensions

196mm x 179mm x 180mm

196mm x 179mm x 180mm

196mm x 179mm x 180mm

196mm x 179mm x 180mm

196mm x 179mm x 180mm

The technical information of the CS high temperature series dry block temperature calibrator is:

Specification CS350 CS650
Range +30°C to +350°C

+30°C to +650°C

Accuracy 0.1°C 0.1°C
Emissivity

± 0.5°C 30°C to +350°C,

± 1°C to 200°C

± 0.5°C 30°C to +350°C,

± 1°C to 200°C

Stability Better than 0.1°C Better than 0.1°C
Heating time 15 minutes 25 minutes
Cooling time

Non-forced natural cooling

Non-forced natural cooling

Power supply 110vAC or 220vAC 110vAC or 220vAC
Operating temperature +5°C to +40°C +5°C to +40°C
Weight 5kg 6kg
Dimensions 253mm x 209mm x 180mm 253mm x 209mm x 180mm

The technical information of the CSEC series dry block temperature calibrator is:

Specification CSEC1 CSEC2 CSEC3
Range +30°C to +200°C

30°C below ambient to +85°C

30°C below ambient (minimum -10°C) to +105°C
Resolution 0.1°C 0.1°C 0.1°C
Accuracy ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit
Stability Better than 0.03°C Better than 0.03°C Better than 0.03°C
Power supply 220vAC 110vAC or 220vAC 110vAC or 220vAC
Operating temperature +5°C to +40°C +5°C to +40°C +5°C to +40°C
Weight 3kg

2.7kg

2.7kg

Dimensions 172mm x 164mm x 130mm 172mm x 164mm x 130mm 172mm x 164mm x 130mm

Contact Eurolec Instrumentation Ltd
