Industrial digital manometer for reliable pressure measurements

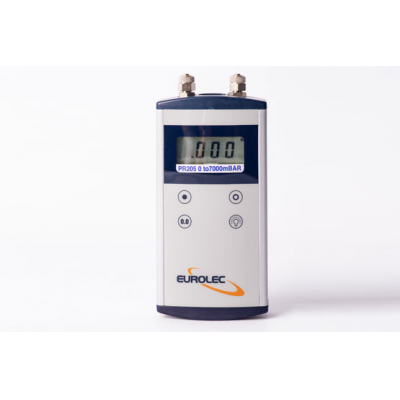

Industrial digital manometer [PR Series Manometer]
Eurolec Instruments has six models of the industrial digital manometers. The digital manometers feature a wide range of pressure scales. This feature enables quick, simple and reliable measurement of pressure levels.
The heavy-duty manometer comes with a rugged metal case, which extends the life span of the pressure meter and makes it ideal for industrial use.
The industrial digital manometers are ideal for the following locations and applications
- Pharmaceutical
- Manufacturing factories
- Clean rooms
- Field measurements
- Differential pressure measurements in HVAC
- Process engineering
- Tank level measurements
- Non-corrosive substance
- Non-ionic liquids and gases
Features of the heavy-duty manometers
- High performance manometer thermometers
- Wide range of pressure scales available
- Rugged metal case
- Auto-ranging display
- Hygienically smooth surface
- Splash resistant surface
- Compact size
- Low power usage
- Backlit display
The industrial digital manometer is available with the following accessories
- System calibration certificates traceable to NPL (UK)
- Pressure/vacuum pump, hose and T piece for calibration purposes
- THCC executive style carrying case
- THCCS carrying pouch with belt clip
Technical Information
|
Specification |
PR200 | PR201 | PR202 | PR203 | PR204 | PR205 |
| Case type | Rugged splash resistant metal case | Rugged splash resistant metal case | Rugged splash resistant metal case | Rugged splash resistant metal case | Rugged splash resistant metal case | Rugged splash resistant metal case |
| Range | 0 - 20m BAR differential | 0 - 20m BAR differential | 0 - 20m BAR differential | 0 - 20m BAR differential | 0 - 20m BAR differential | 0 - 20m BAR differential |
| Resolution | 0.01 | 0.01/0.1 | 0.1/1 | 0.1/1 | 0.1/1 | 0.001/0.01 |
| Units | mBar, Pa, inH20 | mBar, kPa, inH20 | mBar, kPa, inH20, PSI | mBar, kPa, inH20, PSI | mBar, kPa, inH20, PSI |
mBar, kPa, PSI |
| Accuracy (combined linearity and hysteresis) | ± 0.25% Full scale ± 1 Digit | ± 0.25% Full scale ± 1 Digit | ± 0.25% Full scale ± 1 Digit | ± 0.25% Full scale ± 1 Digit | ± 0.25% Full scale ± 1 Digit | ± 0.25% Full scale ± 1 Digit |
| Maximum over pressure | 50 mBar | 750 mBar | 2000 mBar | 2000 mBar | 4000 mBar | 10 Bar |
For more information on the industrial digital manometer, contact us now.
