MSF network time server to supply time to a Windows sever or workstation when configured as a server.

The TS-500-MSF is stand-alone unit with an internal MSF antenna that receives the reliable radio time signal transmission form Anthorn in Cumbria.

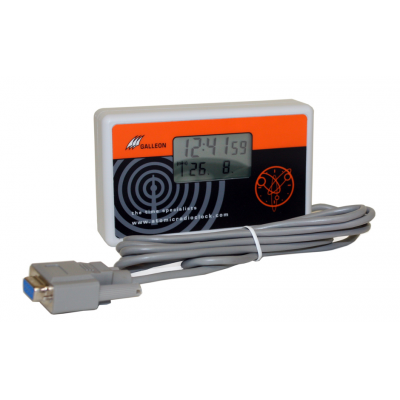

In addition to supplying time to your network the unit has a two line display that shows time, date and status of the unit.


Workstation atomic radio network time server

Up and running in just a few minutes the TS-500-MSF sits safely behind your firewall providing accurate time to your server or domain. Battery operated and supplied with all the necessary software drivers and mounting brackets the TS-500-MSF is the perfect solution for any small to medium sized network.

Key Benefits

  • Stand-alone unit with integrated MSF antenna
  • Screen with signal strength and synchronised time
  • Accuracy ±20ms
  • Battery powered
  • Three year warranty

Technical specification for TS-500-MSF Network Time Server

Antenna Signal MSF (60kHz)
Power Supply 2 x 1.5V (AAA) batteries (supplied)
Protocols SNTP via Time-Sync Software
Connections RS232 Serial Interface
Mounting Indoor; Free standing or bracket.
Operating System Requires MS Windows (version dependent on existing system)
Humidity Max. 85%
Operating Temperatures 0-50°C (32-122°F)
Network Accuracy ± 20 ms, Typical

What's in the box

  • TS-500-MSF unit
  • Instruction Manual
  • Batteries
  • NTP Software CD

Additional Extras

The following products are also available for use with the TS-500-MSF:

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Additional Software Licenses (available from 5 to 300+ clients)
