Waterproof Rack Mount Cabinet | Waterproof Protection for Servers and Networks

Waterproof Rack Mount Cabinet [SPRI-770R]

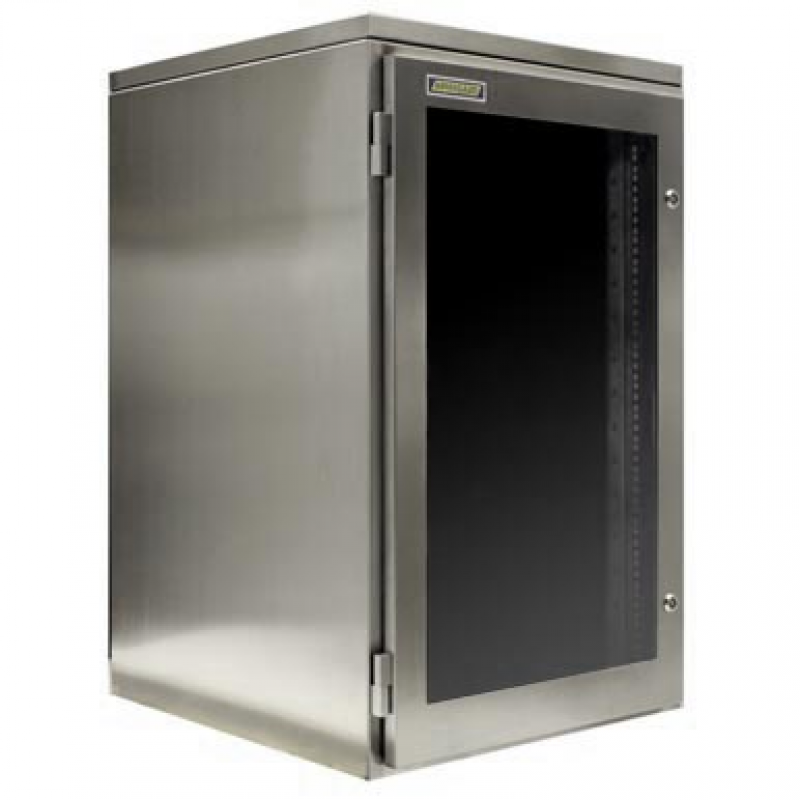

Waterproof Rack mount cabinet for server protection

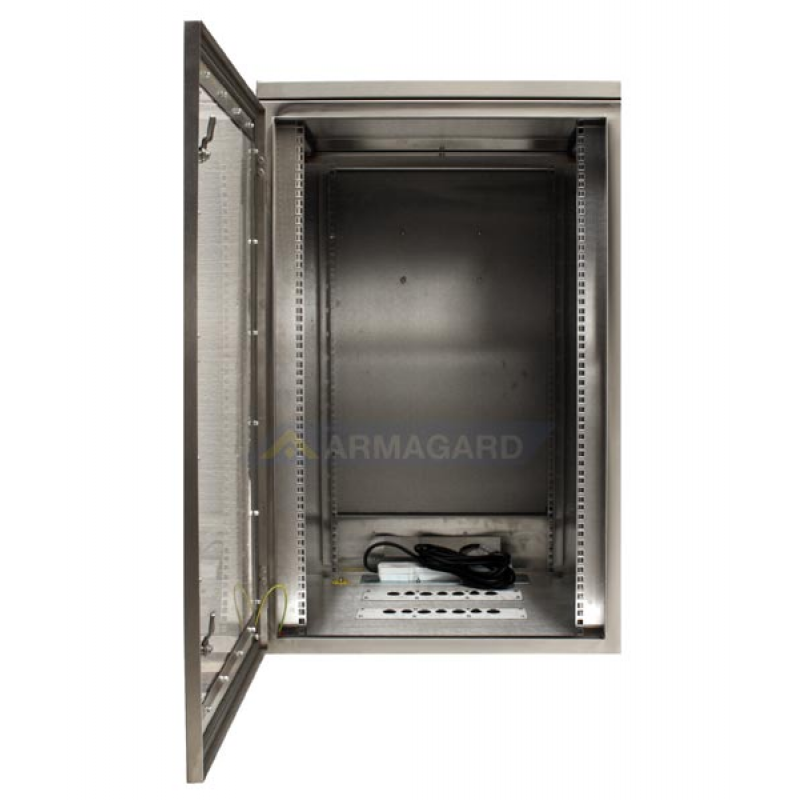

Waterproof rack mount cabinet open showing inside of unit

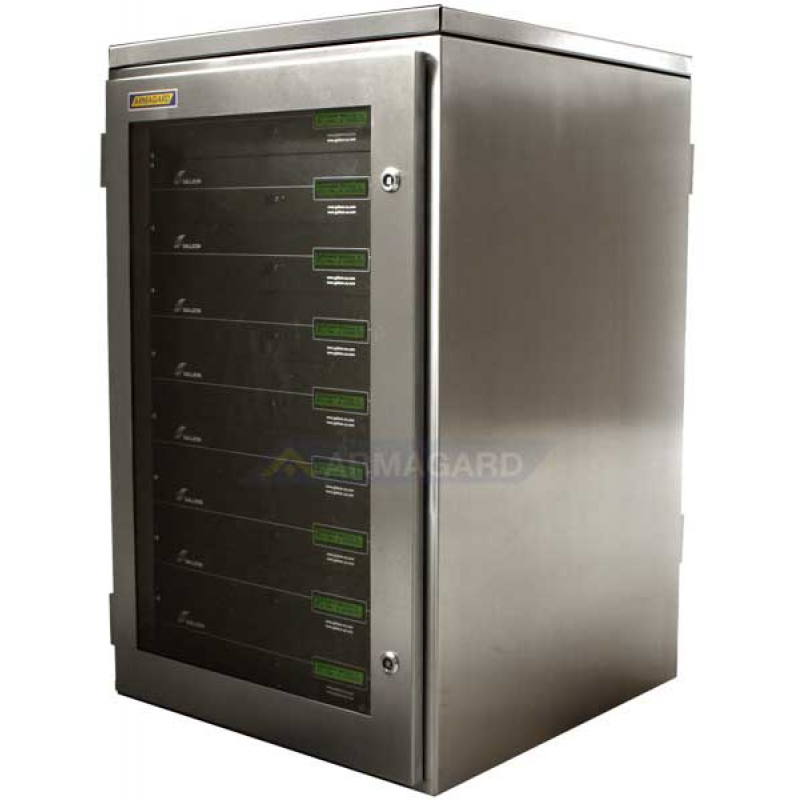

Waterproof rack mount cabinet full of rackmount servers

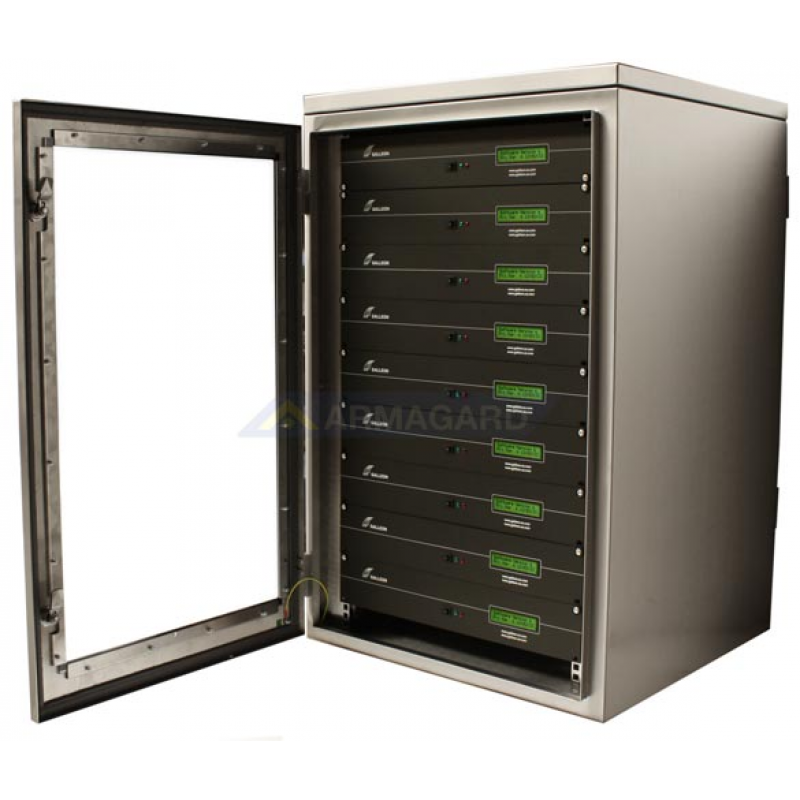

Waterproof rack mount cabinet with door open showing servers

Armagard's 770R waterproof rack mount cabinet is a protective cabinet that house's conventional rackmountable server equipment. Built to IP65, this stainless steel server cabinet can protect the enclosed equipment from wet or humid conditions and is ideal for food processing or washdown areas.


The Armagard SPRI-700 series Waterproof rack mount cabinet is manufactured from 316 grade stainless steel and is sealed to IP65. It is suitable for any standard EIA 19" rackmountable device that needs to be operated in wet or washdown locations.

Ideal for:

  • Server Rooms.
  • Factory Floors.
  • Wet/Washdown environments.
  • Industrial Applications.

At a glance:

Size (HxWxD)mm:
945 x 600 x 645
Material:
Stainless Steel
Max. Capacity:
18U
Mounting:
Floor
IP rating:
IP65
Product Code:
SPRI-770R-UK



Features & Benefits

Used across Europe to house servers and other rackmountable devices the 700 series server cabinet can be supplied with surge protected mains power block, air circulation fan and optional heater unit for cold environments.

Feature Benefit
Manufactured from food grade (316) stainless steel 316 stainless steel has a high resistance to corrosion and staining. It is low maintenance, and also has antibacterial properties. Ideal for wet or humid conditions or in food preparation areas
18U storage capacity Plenty of room to house numerous 19" rackmountable equipment
Water repellent seals Fitted as standard to the door, locks and window prevent damage to the enclosed equipment by ingress of liquids and allows light or heavy wash down of the enclosure
Internal fan(s) Maintain a stable, uniform internal temperature reducing strain on all enclosed components and extending life span
Heater & air-conditioning modules These optional extras allow the installation of this unit at extremes of temperature ranging from -5°C to +40°C
Surge protected four way mains distribution Prevents damage to enclosed equipment from 'spikes' of electricity thus extending lifespan
Stainless Steel Quarter Turn Locks Maintain a tight waterproof seal around the enclosure door. Other lock options are available for installation in areas where abuse or theft is a concern

Specifications & Guarantees:

All Armagard enclosures are constructed according to European IP and International NEMA standards, ensuring protection from liquids and particulates.

Specifications:

Height:
900mm
Width
600mm
Depth:
600mm
IP rating:
IP65
Product Code:
SPRI-770r-UK

We guarantee:



  • 5 Year Warranty of all mechanical parts
  • Fast delivery
  • Informed and helpful staff
  • High quality engineering
  • Over 14 years of industry experience
