Curved touch screen for engaging interactive displays

Curved touch screen [15” – 85” Touchfoil and Touchglass]

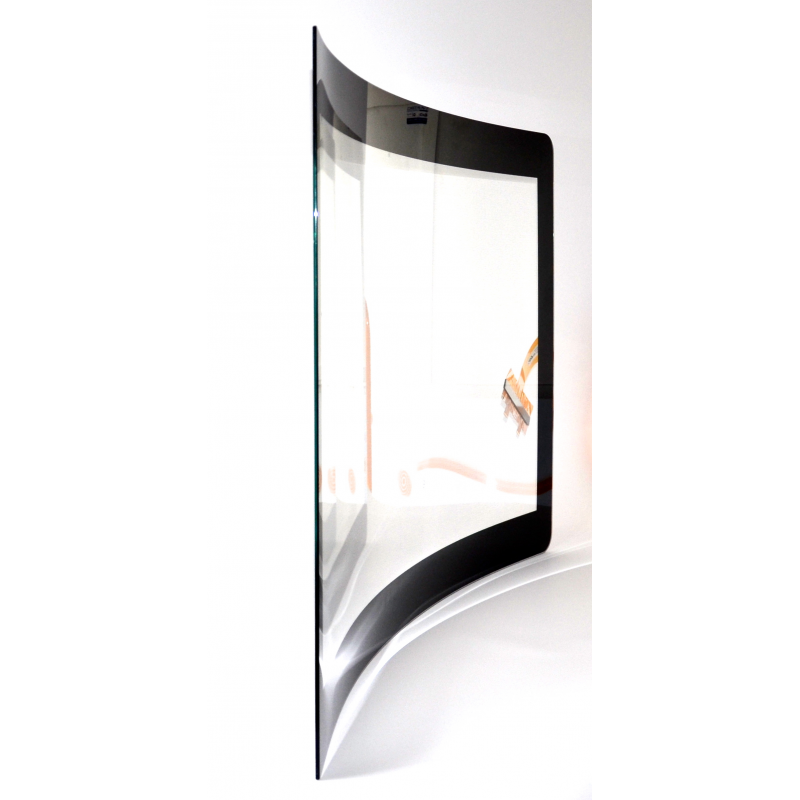

The curved touch screen glass product by VisualPlanet

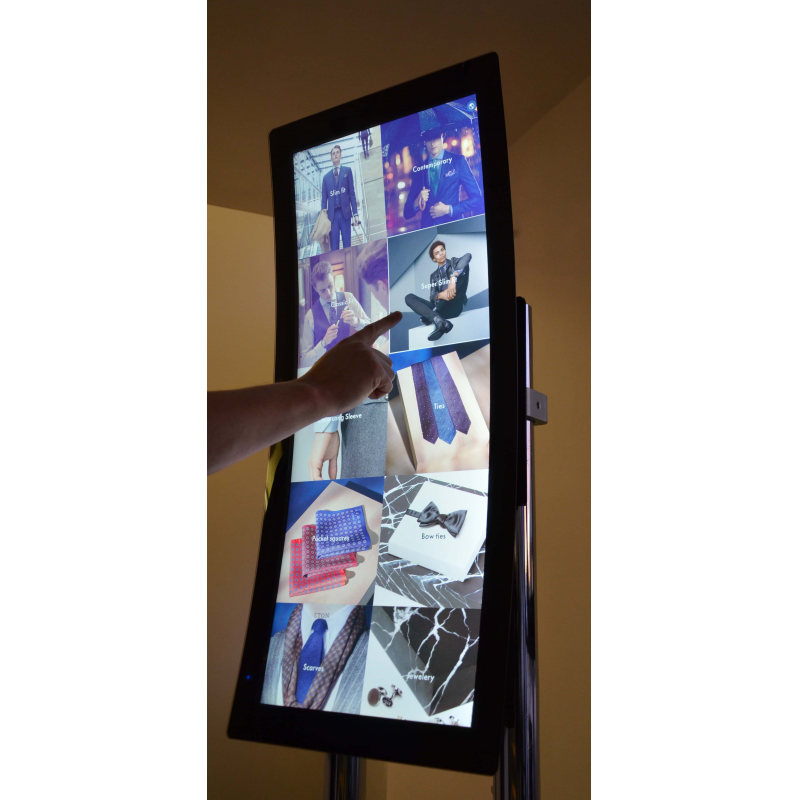

A curved touch screen retail display

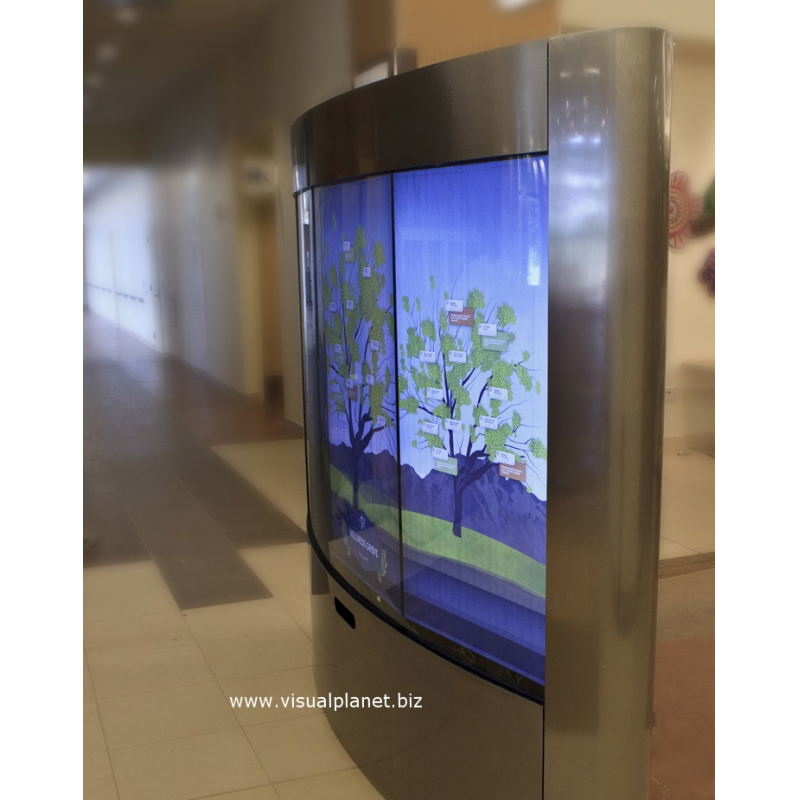

A VisualPlanet curved touch screen

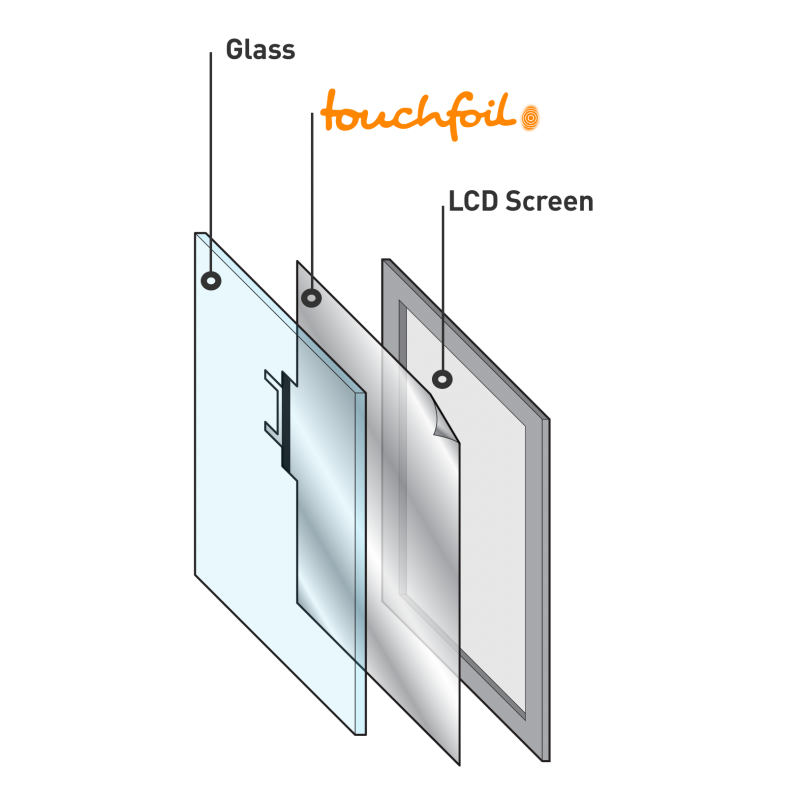

A diagram showing how to make a flat or curved touch screen
The VisualPlanet Touchfoil to make a curved touch screen

Do you need a curved touch screen? With VisualPlanet’s projected capacitive (PCAP) technology, you benefit from bespoke touch screens in the size of your choice.

Curved PCAP screens are ideal for gaming machines, interactive vending machines, interactive digital signage and more.

Contact VisualPlanet to find out more.

Curved touch screen for engaging interactive displays

Curved touch screens are ideal for customer-facing displays in the entertainment and retail industry. Curved displays are prominent, attractive and encourage engagement with your touch screen device.

VisualPlanet is a leading manufacturer of PCAP touch foils applied to curved or flat glass. A PCAP foil is laminated to the back of a glass panel to convert it into a touch-sensitive surface.

VisualPlanet works with leading glass manufacturers to supply curved glass suitable for 4K, ultra-high-definition displays.

Each touch screen can be manufactured in the size and shape of your choice. You benefit from unique, interactive solutions that generate additional revenue for your business.

PCAP glass touch screens are durable and robust. The PCAP touch sensor sits behind glass up to 10 millimetres thick, so the digital screen is protected from damage. Your gaming or vending machine has a long life with reduced downtime and maximum profitability.

VisualPlanet has over 15 years of experience and has worked with customers all over the world, including BMW, Adidas and Samsung. As a leading manufacturer of interactive touch foils, VisualPlanet provides a two-year warranty and outstanding customer support.

PCAP touch screen foils are ideal for:

  • Gaming machines
  • Interactive vending machines
  • Self-service kiosks and wayfinding
  • Interactive digital signage
  • Self-service ticket machines
  • Interactive shop windows
  • Industrial touch screens

The benefits of a PCAP curved touch screen

  • Robust: PCAP touch screens are resistant to accidental and deliberate damage. You receive the maximum return on investment.
  • Engaging: A curved touch screen is more attractive than a flat display, encouraging utilisation of the touch screen device.
  • Customised: Choose the exact size you want.
  • Versatile: Use curved touch screens in indoor and outdoor locations for gaming, retail, digital signage and more.
  • Reliable: VisualPlanet touch screens work reliably in heavy rain, dirty environments and hot and cold weather.

PCAP touch foil and glass technical specifications

Detection method Projected Capacitive using a 10-micrometre copper sensing array.
Sizes 15 to 85 inches (larger available on request).
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response 6 to 8 milliseconds.
Controller board USB controller board. Specification depends on size of foil.
Operational temperature range -10°C to +60°C.
Humidity 95% at +60°C.
Transmittance 87.8%.
Clarity 98.6%.
Haze 2.23%.

Contact VisualPlanet to discuss the best PCAP foil and glass for your curved touch screen.
