Versatile touch glass for engaging interactive displays

Touch glass [Touchglass]

A man using a touch glass interactive table

A woman using a touch glass interactive vending machine

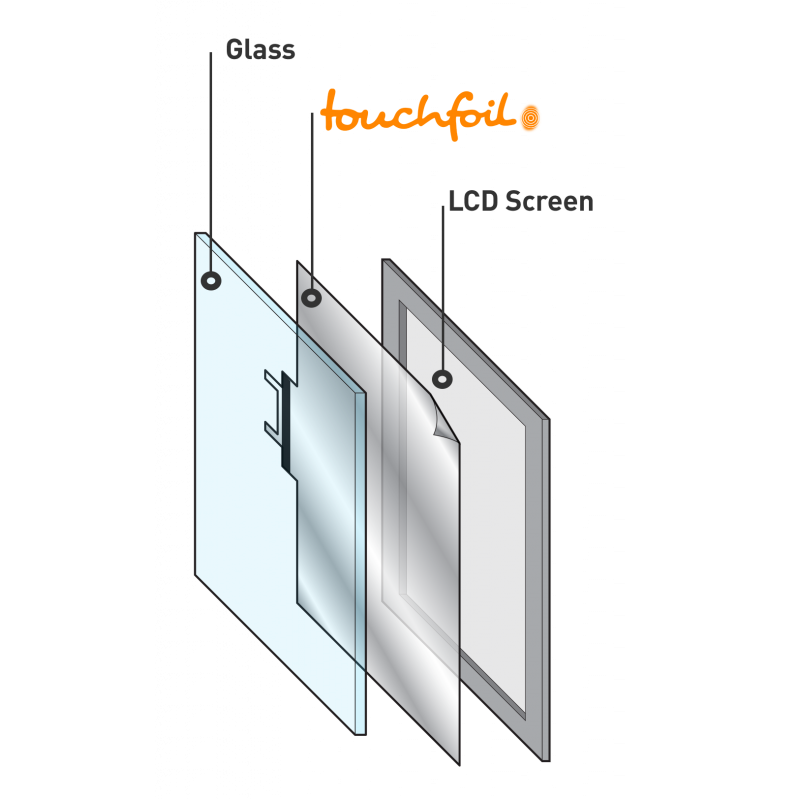

Diagram of how to assemble touch glass and touch foil from VisualPlanet

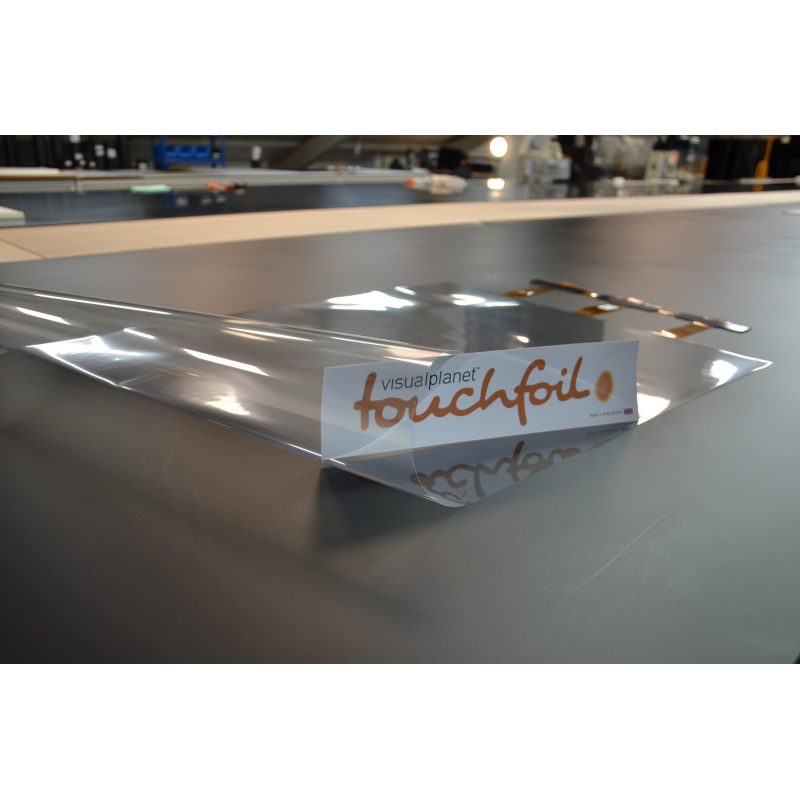

A PCAP foil before being applied to touch glass

Projected capacitive (PCAP) touch glass allows you to create provides bespoke, interactive experiences. Choose from flat or curved glass in the best size for you. VisualPlanet’s Touchglass^TM is ideal for indoor and outdoor touch screens in commercial, public and industrial environments.

Contact Visual Planet to find out more.

Request a Quote

Touch glass delivers an engaging, interactive experience

Projected capacitive touch glass is the ideal touch screen solution for all environments. VisualPlanet’s Touchglass^TM offers a number of benefits:

Custom options: Choose the exact size you need, from a 15-inch screen for ticket machines to large screens for interactive retail displays. VisualPlanet can provide glass lamination and printing according to your specifications.

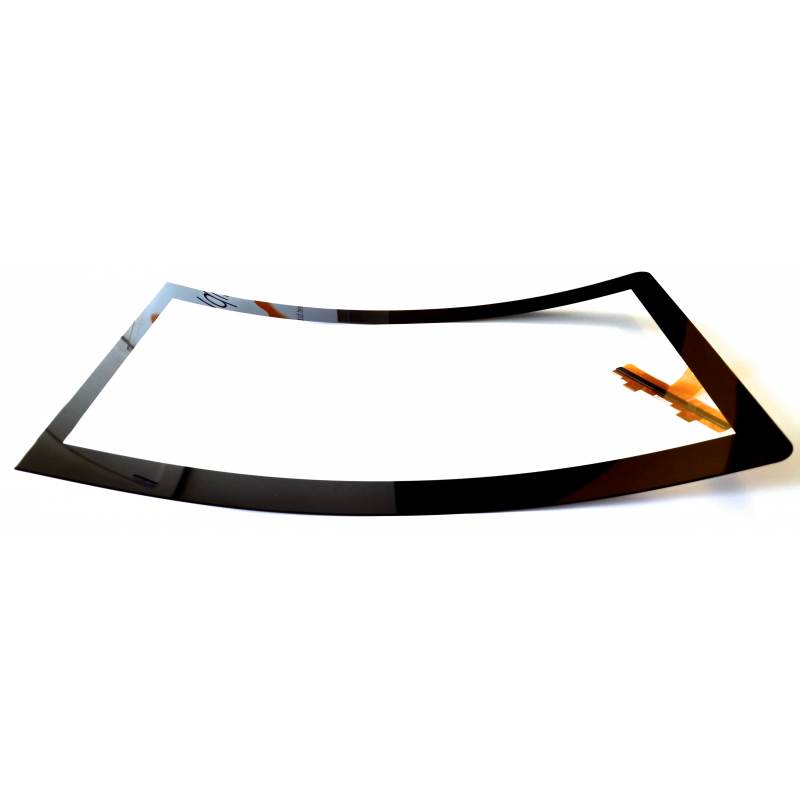

Curved or flat glass: VisualPlanet works with leading glass manufacturers to provide curved glass for use with the latest LCD screens. Curved touch screens create the most prominent interactive displays that attract customers and generate revenue: ideal for gaming machines.
Toughened: PCAP touch glass screens can be up to 10 millimetres thick. Toughened glass protects the LCD screen from damage. VisualPlanet’s Touchglass^TM is ideal for vandal-proof touch screens in public environments, such as self-service kiosks, wayfinding and outdoor digital signage.
Weatherproof: VisualPlanet’s PCAP glass and sensors work in heavy rain and from -10°C to +60°C. VisualPlanet provides anti-glare glass for sunlight readable touch screens. You benefit from maximum utilisation of your interactive screen in all weather.
Dual touch or multi-touch: Choose the dual touch option for displays that respond to two touches at the same time. Choose the multi-touch option for screens that respond to 32 touches. Multi-touch screens allow you to create the most engaging interactive experiences that fully engage customers with your brand.
Reliable: VisualPlanet’s PCAP foil laminates to the back of the glass screen, so it doesn’t degrade through frequent use. Touchglass^TM can be used for dustproof and waterproof enclosures up to IP68, making it suitable for industrial touch screens. Your display will have a long, reliable life for the maximum return on investment.

Versatile touch glass for all environments

VisualPlanet’s Touchglass^TM is suitable for a range of indoor and outdoor touch screens:

Gaming machines
Interactive vending machines
Self-service kiosks and wayfinding
Interactive digital signage
Self-service ticket machines
Interactive shop windows
Industrial touch screens

VisualPlanet has over 15 years’ experience manufacturing PCAP technology. As the originator of the touch foil format, the company has industry-leading expertise and can provide the ultimate touch screen solution for you. VisualPlanet’s products come with a two-year warranty and outstanding customer support.

Use the form below to find out more.

Touchglass^TM technical specifications

Detection method	Projected Capacitive using a 10-micrometre copper sensing array.
Sizes	15 to 85 inches (larger available on request).
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
Transmittance	87.8%.
Clarity	98.6%.
Haze	2.23%.
