Projected capacitive touch screen for an enhanced customer experience

Projected capacitive touch screen [15” to 85” Touchfoil]

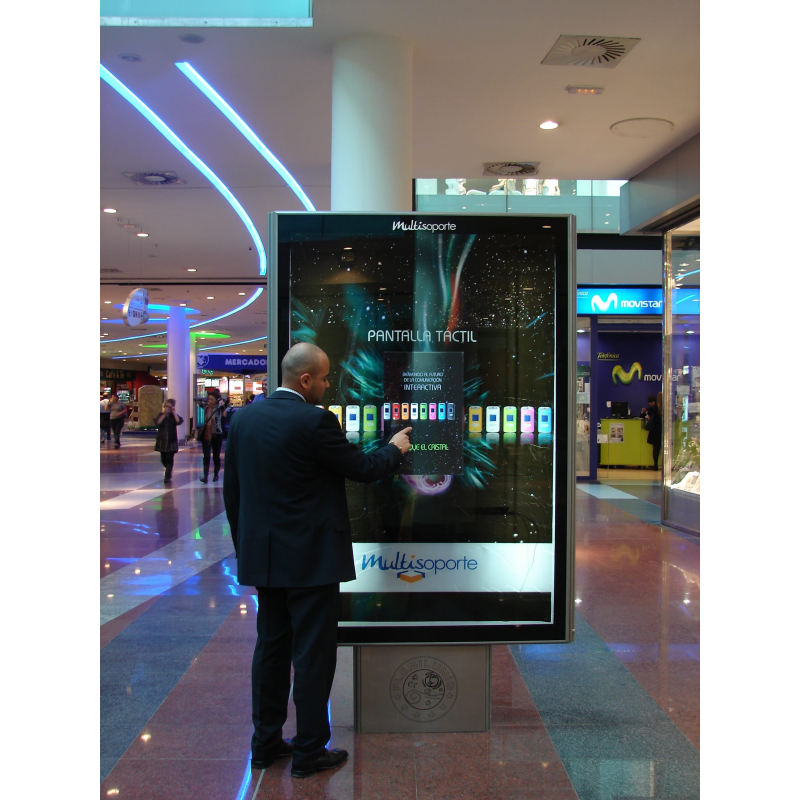

A man using a projected capacitive touch screen in a shopping centre.
A diagram showing how a projected capacitive touch screen is assembled.
Projected capacitive touch screen foil before being applied to glass.

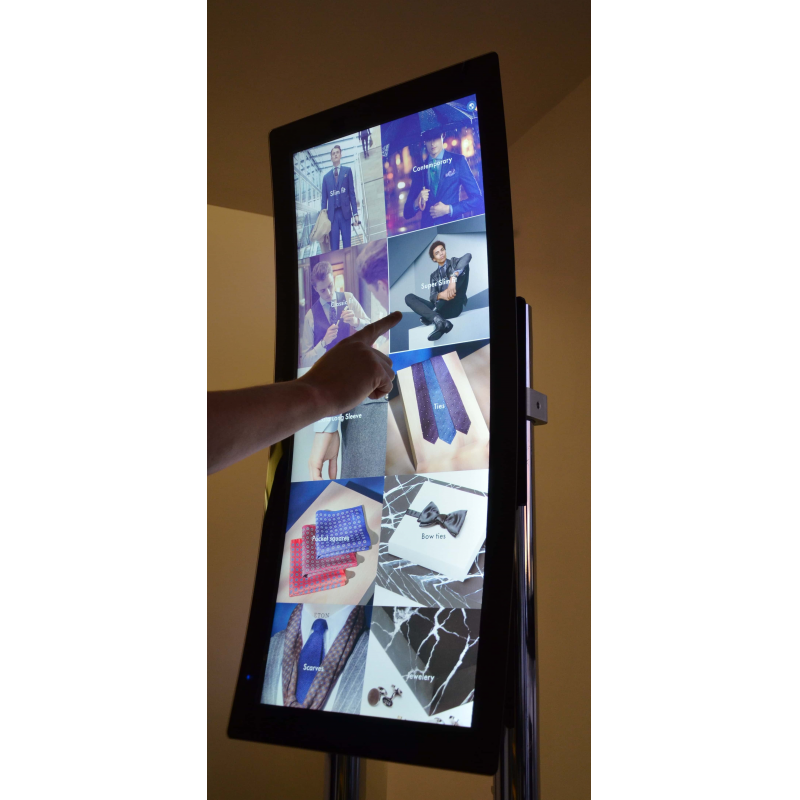

A curved glass projected capacitive touch screen.

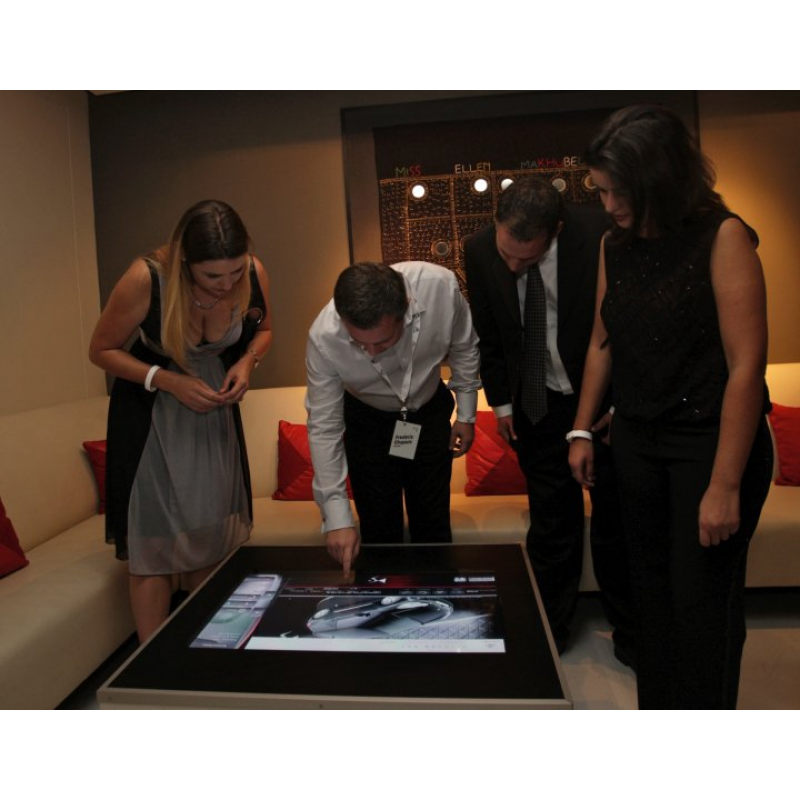

A projected capacitive touch screen table.

Projected capacitive touch screen foils allow you to create engaging and bespoke touch screens.

Projected capacitive (PCAP) foils are waterproof, reliable and versatile. Use them for indoor and outdoor touch screens in public, industrial and commercial locations.

Contact VisualPlanet for more information.


Projected capacitive touch screen foils: engaging and customisable

PCAP touch foils are ideal for creating unique, engaging, interactive displays. Laminate the PCAP touch film onto the inside of a glass surface to turn it into a touch screen.

VisualPlanet can supply touch screen foils on their own or on glass. VisualPlanet works with leading glass manufacturers to supply high-quality glass suitable for 4K, high-definition displays.

VisualPlanet touch foils are available in dual touch or multi-touch options. The multi-touch foil responds to 32 individual touches at the same time, allowing you to engage multiple customers simultaneously.

Projected capacitive touch screen foils are highly customisable. Choose the ideal size for you. For example, choose a 15-inch PCAP foil for a self-service ticket machine or an 85-inch foil for large, interactive signage.

Touch screen foils can be easily applied to curved glass. Curved touch screens are ideal for gaming machines, where the curved glass helps attract customers.

PCAP technology is ideal for:

  • gaming and vending machines
  • interactive kiosks
  • interactive digital signage
  • self-service ticket machines
  • interactive shop windows
  • industrial touch screens
  • outdoor touch screens



Projected capacitive touch screen foils: reliable and weatherproof

Touch screen foils are durable and reliable.

The foil is never touched because it’s laminated to the back of a glass surface. As such, the foil is not damaged by frequent use and has a long lifespan.

PCAP technology can be used when the user is wearing gloves, which makes it ideal for industrial, sterile and cold weather environments.

VisualPlanet’s interactive touch foils work in hot and cold temperatures and heavy rain. Use them for outdoor displays, such as wayfinding kiosks and interactive digital signage.

You can apply a PCAP foil to glass from 2 to 10 millimetres thick. By using thick glass, interactive foils are ideal for vandal-proof touch screens in public areas, such as bus and train stations.

VisualPlanet has worked with international customers such as Adidas, Samsung, BMW and more. Touch screen foils come with a two-year warranty and VisualPlanet provides outstanding customer support.

To discuss your exact requirements, please contact VisualPlanet on the form below.

Features and benefits of PCAP technology

  • Engaging: PCAP foil delivers interactive, multi-user experiences that engage customers with your brand.
  • Bespoke: choose the best size for you, on flat or curved glass.
  • Secure: thick glass can make your touch screen vandal-proof.
  • Reliable: works in heavy rain, dirty environments and hot and cold weather.
  • Versatile: use in indoor and outdoor locations. Ideal for public, industrial and commercial touch screens.

PCAP touch screen foil technical specifications

Detection method Projected capacitive using a 10-micrometre copper sensing array.
Sizes 15 to 85 inches.
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response 6 to 8 milliseconds.
Controller board USB controller board. Specification depends on size of foil.
Operational temperature range 10°C to +60°C.
Humidity 95% at +60°C.

For more information about projected capacitive touch screen foils, contact VisualPlanet today.
