IP54 Compact touchscreen Enclosure with Integrated Touch Screen Monitor

Compact Touchscreen Enclosure [PENC-350-UK]

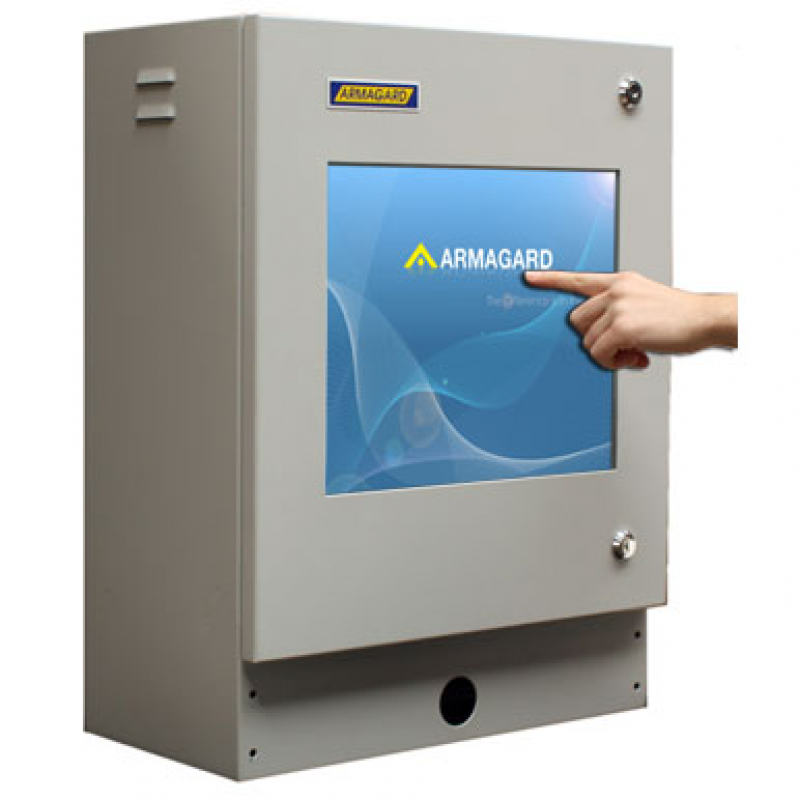

Compact Touchscreen Enclosure main image

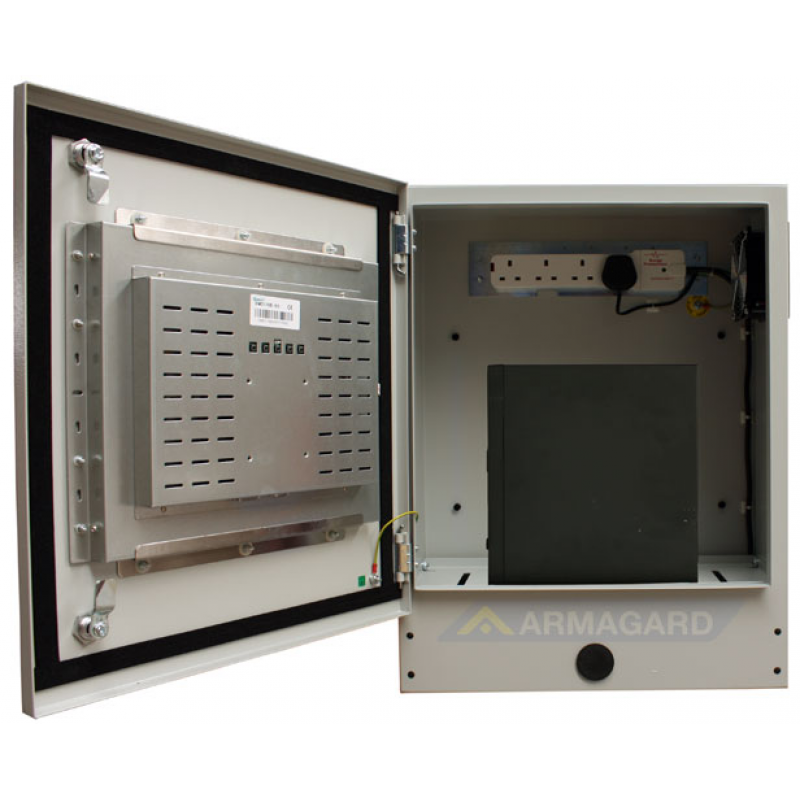

Compact Touchscreen Enclosure open showing computer and touchscreen

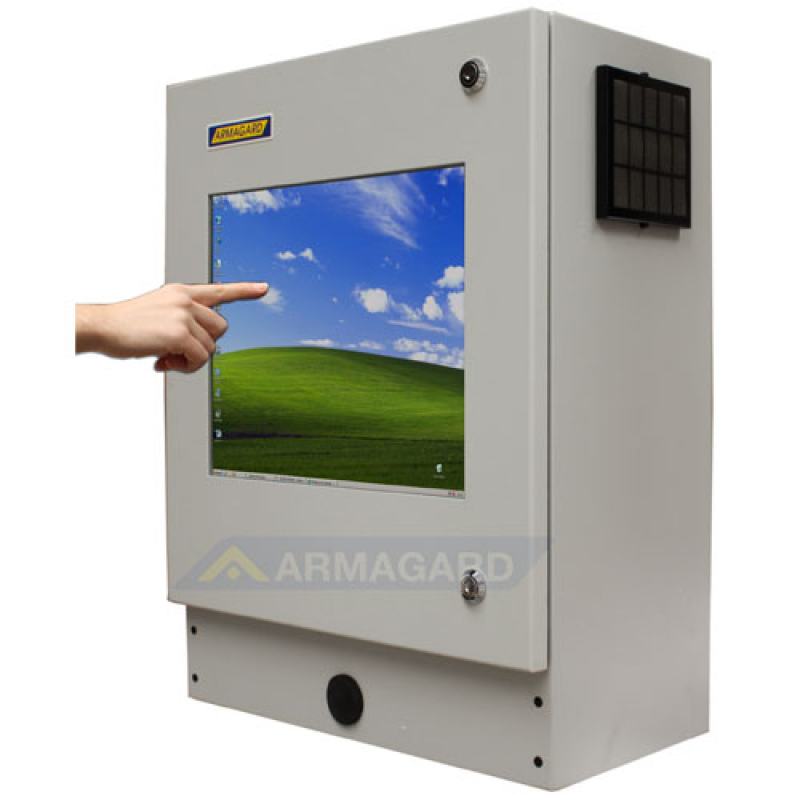

Compact Touchscreen Enclosure open being used

The PENC-350 is a slim line compact touchscreen enclosure to protect desktop and tower PCs in factory environments. It can also be fitted with a 'wedge' membrane keyboard and mouse or supplied with a keyboard and mouse shelf.

The integrated 17" LCD touch screen incorporates five wire resistive technology making it one of the most accurate and reliable touch screen available. The touch screen responds to activation by a gloved hand giving the user immediate interaction without interrupting workflow to remove a glove.


This IP54 touch screen is manufactured from powder coated mild steel and is resistant to dust, grease, dirt, heavy impacts and liquid splashes. The PENC-350 touch screen enclosure is used throughout Europe by leading manufacturing and distribution companies.


Features & Benefits of compact touchscreen enclosure

The PENC-350 compact touchscreen enclosure is the perfect solution for computer use on factory or shop floors where space is of concern and a conventional mouse and keyboard is not practical.

Feature Benefit
Manufactured from powder coated mild-steel Dust, dirt and splash-proof making it ideal for indoor applications
17" 5-wire resistive touch screen monitor Accurate, Stable, drift-free operation. Can be activated with a gloved hand without ensuring that workflow is not interupted
Fits most small desktop or tower PCs Add the computer of your choice saving you money on buying expensive dedicated machines
Water repellent seals Fitted as standard to the door, locks and window prevent damage to the enclosed equipment by ingress of liquids and allows light or heavy wash down of the enclosure
Surge protected four way mains distribution Prevents damage to enclosed equipment from 'spikes' of electricity thus extending lifespan
Multiple Mounting Options Adjustable Wall mounting bracket or stand/trolley allowing the user to work in a comfortable position
Customisable Options to add a membrane keyboard with mouse, or a separate keyboard and mouse
Stainless Steel Quarter Turn Locks Maintain a tight waterproof seal around the enclosure door. Other lock options are available for installation in areas where abuse or theft is a concern.

Specifications & Guarantees:


All Armagard enclosures are constructed according to European IP and International NEMA standards, ensuring protection from liquids and particulates.

Specifications (without keyboard):
Height: 630mm

Width: 490mm

Depth: 265mm

IP rating: IP54

Product Code: PENC-350-UK

We guarantee:

  • 5 Year Warranty of all mechanical parts
  • Fast delivery
  • Informed and helpful staff
  • High quality engineering
  • Over 14 years of industry experience
