Slimline Intrinsically Safe Enclosure for Zone 2 Explosive Areas

Slimline Intrinsically Safe Enclosure [AZ2S21-TFT]

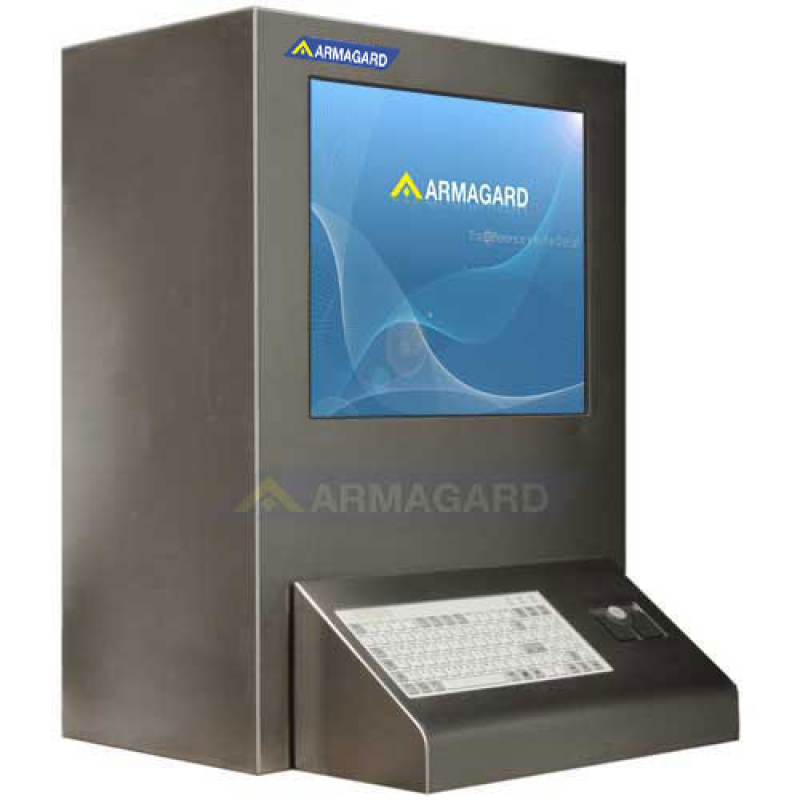

Slimline Intrinsically Safe Enclosure product main image

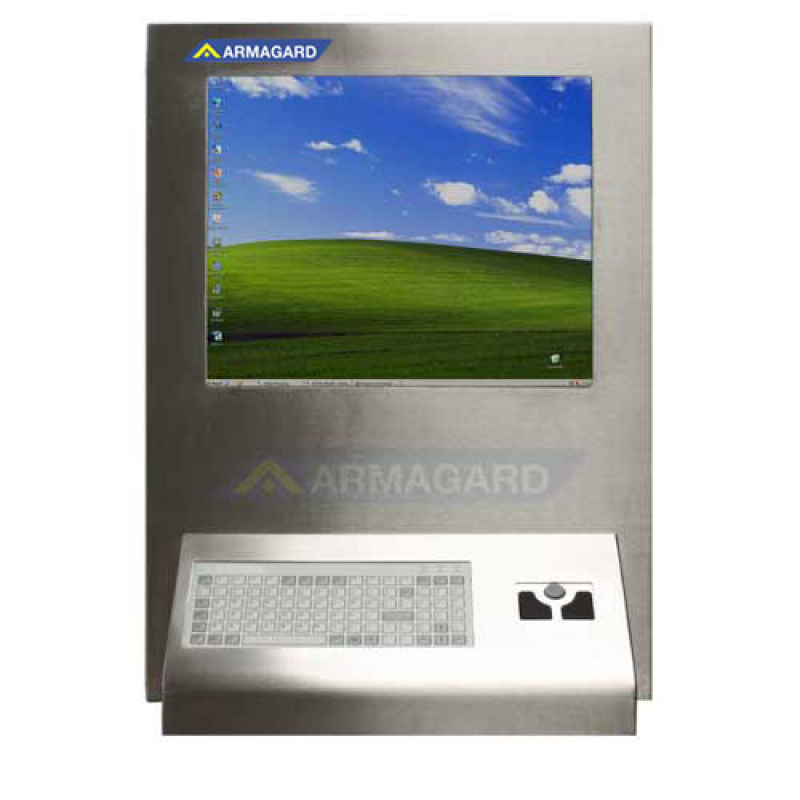

Slimline Intrinsically Safe Enclosure front on view

Armagard's slimline intrinsically safe enclosure is an alternative to air-purged systems and allows the use of conventional computers and TFT flat screens (LCD/Plasma up to 21") in potentially explosive atmospheres (ATEX zone 2/zone 22)

Waterproof and dustproof to IP65 and manufactured from food grade stainless steel (316) this slim line intrinsically safe and airtight enclosure is Ex approved (category 3) in compliance with the European standard for type N restricted breathing devices and the ATEX directive 94/9/EC.


Features & Benefits of the Slimline intrinsically safe enclosure

Waterproof and dustproof to IP65 and manufactured from food grade stainless steel (316) this slimline intrinsically safe enclosure is Ex approved (category 3) in compliance with the European standard for type N restricted breathing devices and the ATEX directive 94/9/EC.

Features Benefits
Manufactured from food grade (316) stainless steel 316 stainless steel has a high resistance to corrosion and staining. It is low maintenance, and also has antibacterial properties. Ideal for wet or humid conditions or in food preparation areas
Membrane Keyboard Flush mounted membrane keyboard with button mouse, allows full wash down and prevents build up of debris between keys
Shatterproof poly carbonate window Durable screen protection without the risk of contamination of your production line in the event of breakage
Water repellent seals Fitted as standard to the door, locks and window prevent damage to the enclosed equipment by ingress of liquids and allows light or heavy wash down of the enclosure
Slimline Construction Easy Installation in areas where space is of concern
Fits most slim-line desktop, tower PC or thin client computers and TFT monitors Add the computer of your choice saving you money on buying expensive dedicated machines
Surge protected four way mains distribution Prevents damage to enclosed equipment from 'spikes' of of electricity extending life span.
Internal fan(s) Maintain a stable, uniform internal temperature reducing strain on all enclosed components and extending life span

Specifications & Guarantees:

All Armagard enclosures are constructed in accordance with European IP and International NEMA standards, guaranteeing protection from liquids and particulates.

Specifications:

Height: 800mm
Width: 600mm
Depth: 550mm
IP rating: IP65
Product Code: AZ2S21-TFT

We guarantee:

  • 5 Year Warranty of all mechanical parts
  • Fast delivery
  • Informed and helpful staff
  • High quality engineering
  • Over 14 years of industry experience
