Waterproof Monitor enclosure - LCD Monitor/TV protection from water or washdown environments

Waterproof Monitor Enclosure [SDS-24-UK]

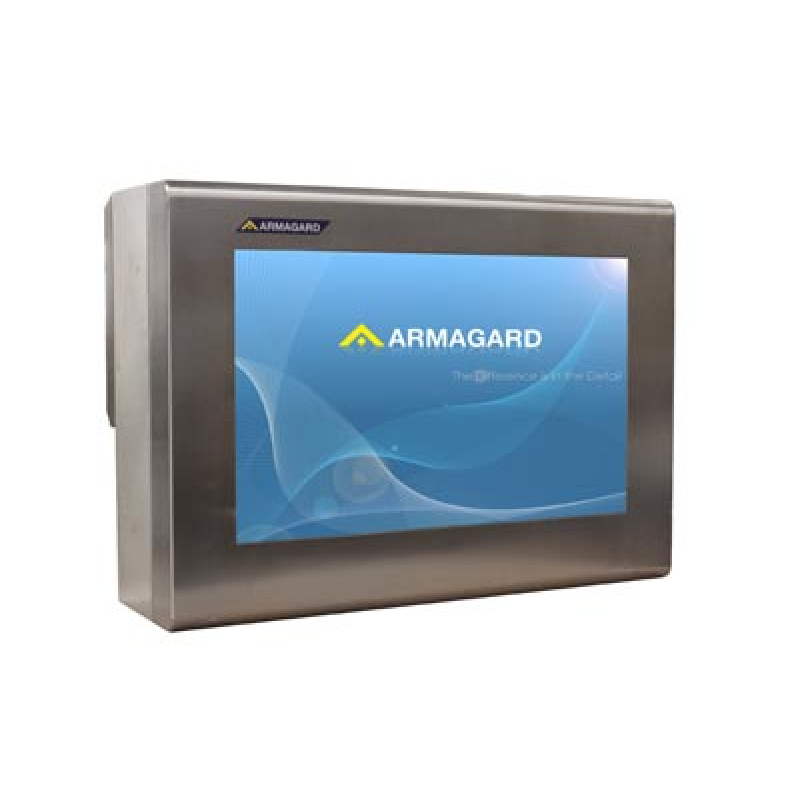

waterproof monitor enclosure

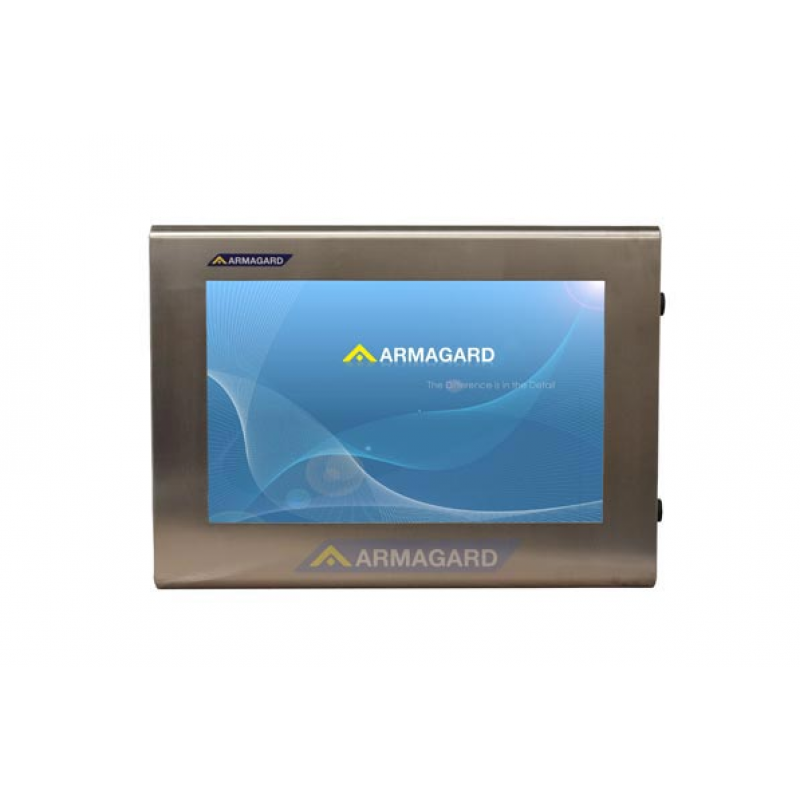

waterproof monitor enclosure view of the unit from the front

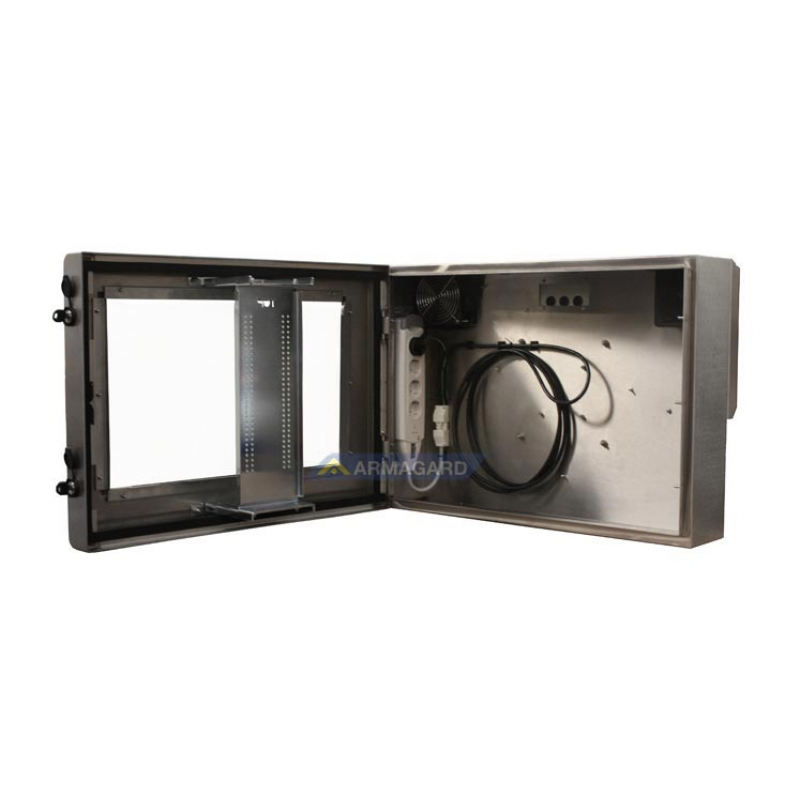

waterproof monitor enclosure view of the unit with door open

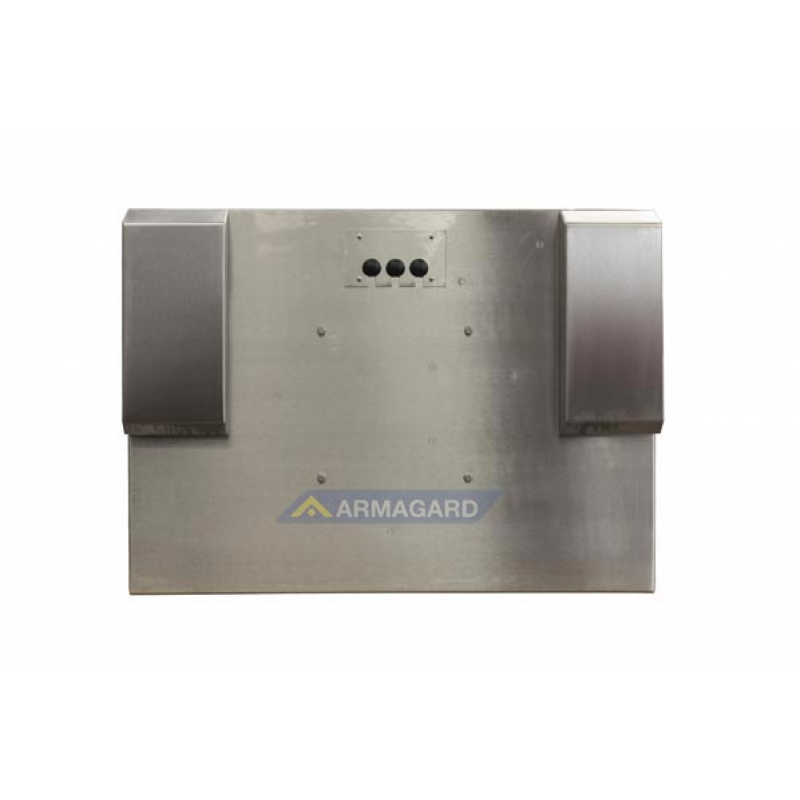

waterproof monitor enclosure view of the back of the unit

Protect LCD monitors or TVs in outdoor, damp or wet environments.

Designed to accommodate 17" to 24" LCD Monitors or screens the waterproof monitor enclosure SDS-24 houses VESA 100/200 mounts suitable for thin client or dedicated PC attachments.

The Waterproof monitor enclosure is the ideal solution for placing computer monitors or small LCD TVs in potentially wet, damp outdoor environments.

Ideal for:

  • Food Manufacture.
  • Medical Applications.
  • Laboratories.
  • Design features.
  • Medical Areas.

At a glance:

Size (HxWxD) mm:
523 x 721 x 213
Stainless Steel
Screen Size:
17" - 24"
Wall or Stand
IP rating:
Product Code:

Features & Benefits:

Lockable, secure and sealed to IP65 the Armagard Waterproof Monitor enclosure offers the ideal solution to protect your LCD monitor or digital signage from the likes of theft or vandalism or from wet, damp, outdoor environments. Also ideal for use in industrial enviornments.

Your LCD monitor is protected against:

  • Light or heavy rainfall and jet washdown - ideal for outdoor locations
  • Dust and small particulates - ideal for industrial environments
  • Electrical surges - making computer crashes a thing of the past
  • Physical impact - cutting down on repairs and accidents
  • Temperature extremes - saving you money on additional heaters or air-conditioning
  • Theft - enabling peace of mind


Armagard Waterproof monitor enclosures are constructed according to European IP ensuring protection from water, dust and small particulates. Built from Stainless steel (316) with a shatterproof screen Armagard LCD enclosures are shipped ready assembled with internal monitor brackets and can be mounted using wall brackets or by a ceiling or pedestal mount (wall brackets and mounts sold separately).

(basic enclosure)
(standard enclosure)
(cold climate enclosure)
Product Code SDS-W-L-(size)-UK SDS-W-L-(size)-UK-S SDS-W-L-(size)-UK-H
Teperature Range 0°C to +34°C -5°C to +34°C -30°C to +34°C
IP Protection Rating IP56 IP56 IP56
Window Type Polycarbonate Anti-Reflective Polycarbonate Anti-Reflective Glass
Dual Security Locks
Internal Screen Mount
Surge Protected Power
Air Curtain™ Screen Cooling
Exterior Cooling Chamber
Thermostatically Controlled Heating
Filter Cooling System
Closed Cell Insulation
Mounting Options Flat or 15° Wall Brackets (Sold Separately) Flat or 15° Wall Brackets (Sold Separately) Flat or 15° Wall Brackets (Sold Separately)

We guarantee:


  • 5 Year Warranty of all mechanical parts
  • Fast delivery
  • Informed and helpful staff
  • High quality engineering
  • Over 14 years of industry experience
