Customised PCAP touch foil creates interactive displays for your business

PCAP touch foil [15” – 85” touch foil]

PCAP touch foil from VisualPlanet

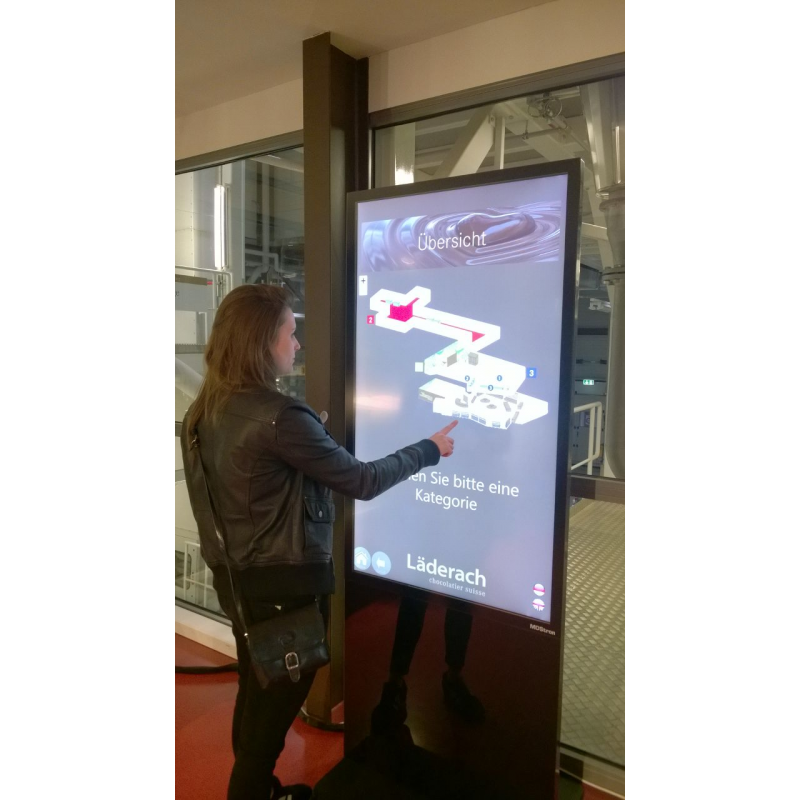

A woman using a PCAP touch foil screen

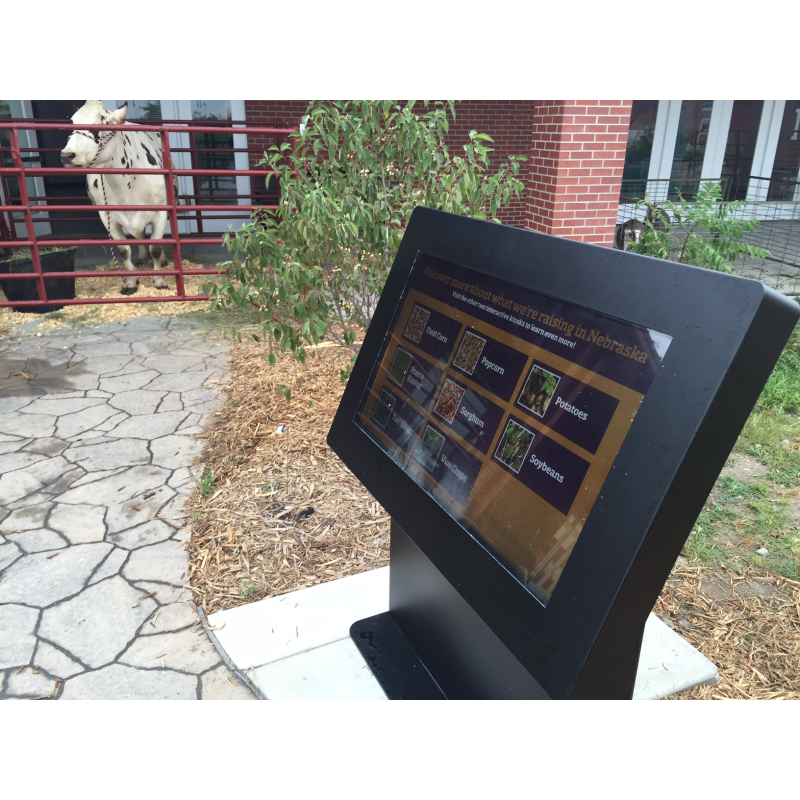

a PCAP touch foil outdoor kiosk

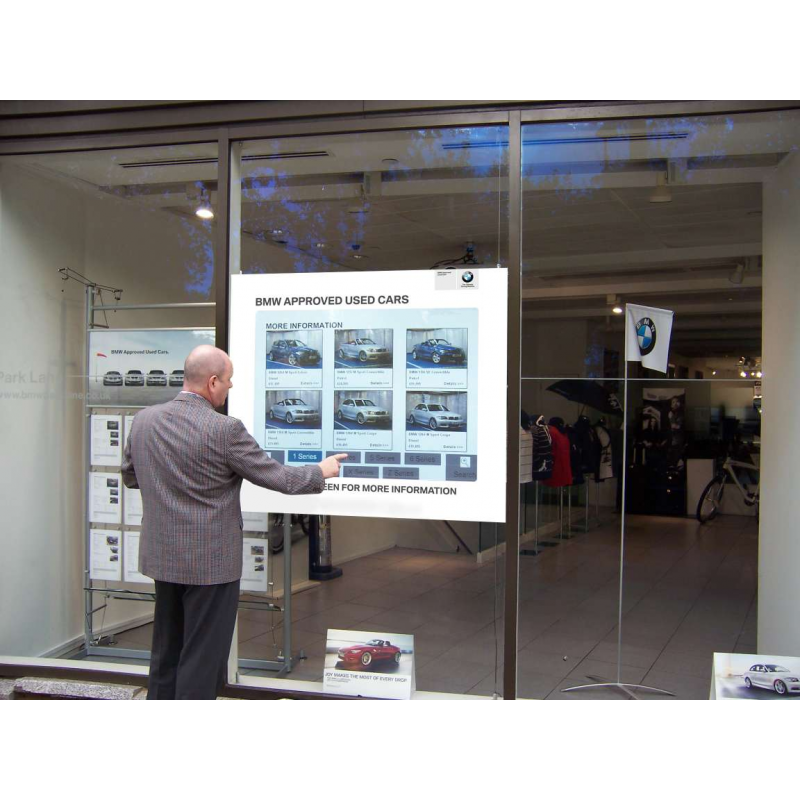

A man using a PCAP touch foil interactive shop window

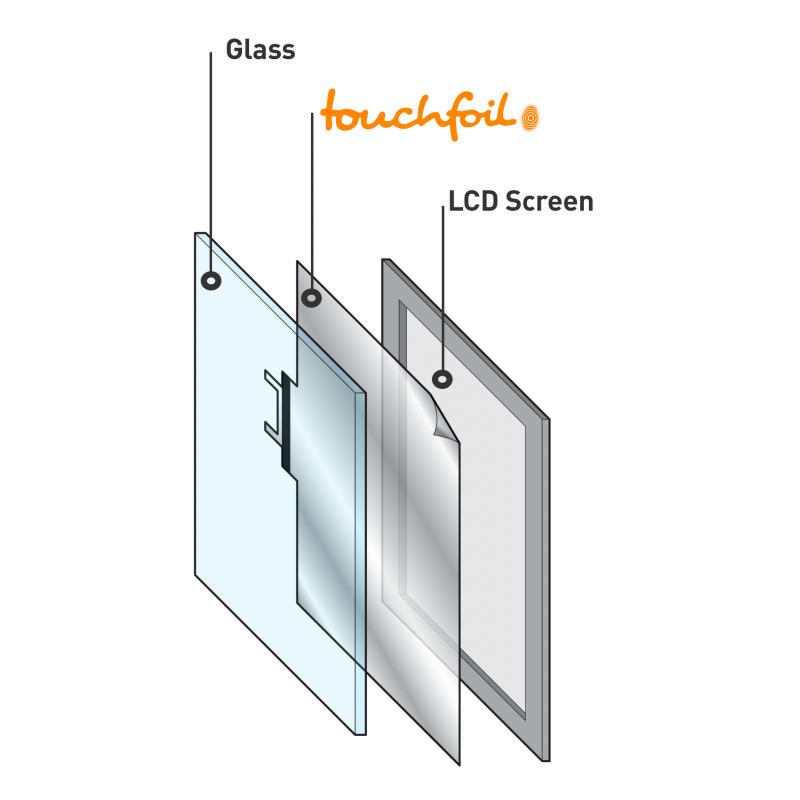

A PCAP touch foil assembly diagram

Do you need an engaging, unique touch screen? Projected capacitive (PCAP) technology converts LCD screens into interactive displays.  A PCAP touch foil is easily applied to cover glass and mounted on an LCD screen.

Use PCAP technology to:

  • Attract customers
  • Speed up the buying process
  • Boost brand image

Contact us now to find out more.

Benefits of using PCAP touch foil manufactured by VisualPlanet

Feature Benefit
PCAP technology Enables high precision, multi-touch functionality, high response speed, and use of gloves. All of which improves customer experience and increases engagement.
Multi-user Multiple people can use the screen simultaneously for the most memorable, interactive experience.
Specialised touch foil sensors

The sensor can be used on any glass surface and is available in custom sizes. Choose from flexible mounting options and a choice of glass thickness.

Compliant RoHs, REACh, EMC, FCC, and UL compliant. This ensures you fulfil the regulations in your country.

PCAP touch foil

The PCAP touch foil can be used creatively to fulfil your requirements. Some of the customisable options include:

  • Curved or customised glass for attractive displays
  • Toughened glass for industrial purposes
  • UV protection for outdoor public facing displays
  • Reusable for temporary installations
  • Custom glass thicknesses for vandal proof touch screens

Get in touch with VisualPlanet now to discuss your touch screen requirements.

PCAP touch foil technical specifications

Detection method Projected Capacitive (PCAP) using 10-micrometre copper sensing arrays.
Sizes 15 to 85 inches. Larger sizes available on request.
Glass thickness

2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.

Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response 6 – 8 milliseconds.
Controller board USB controller board. Specification depends on size of foil.
Operational temperature range -10ºC to +60ºC.
Humidity 95% at 60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with organisations like Adidas, AXE, University of Oregon, and Samsung to create high-performing, bespoke touch screens. VisualPlanet offers a two-year warranty and lifetime customer support.

For more information about a PCAP touch foil, contact us now.
