PCAP dust proof touch screen foil ideal for industrial environments

Dust proof touch screen [15” to 85” Touchfoil]

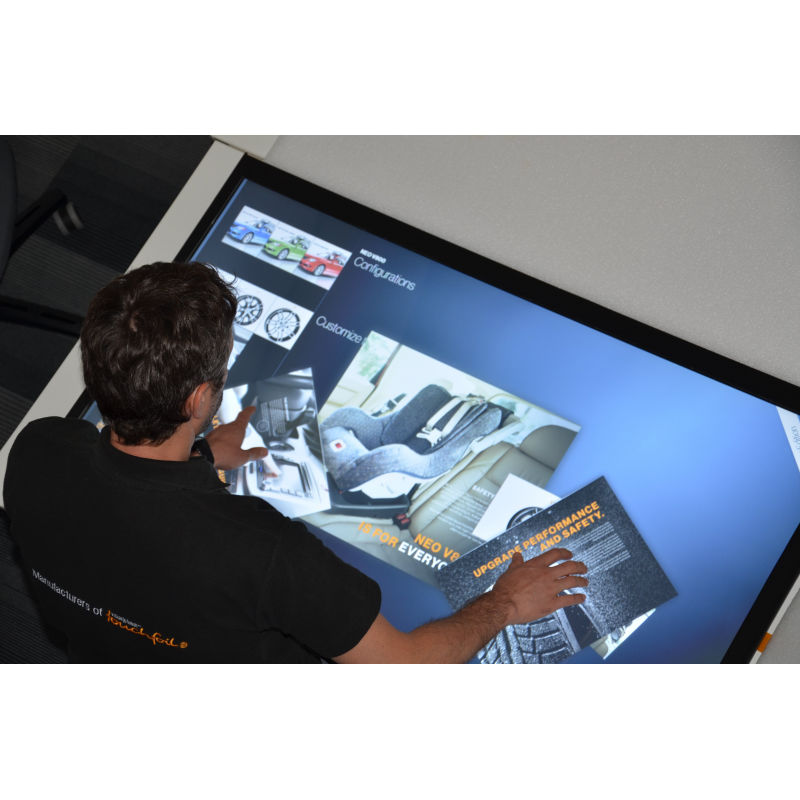

A man using a dust proof touch screen table

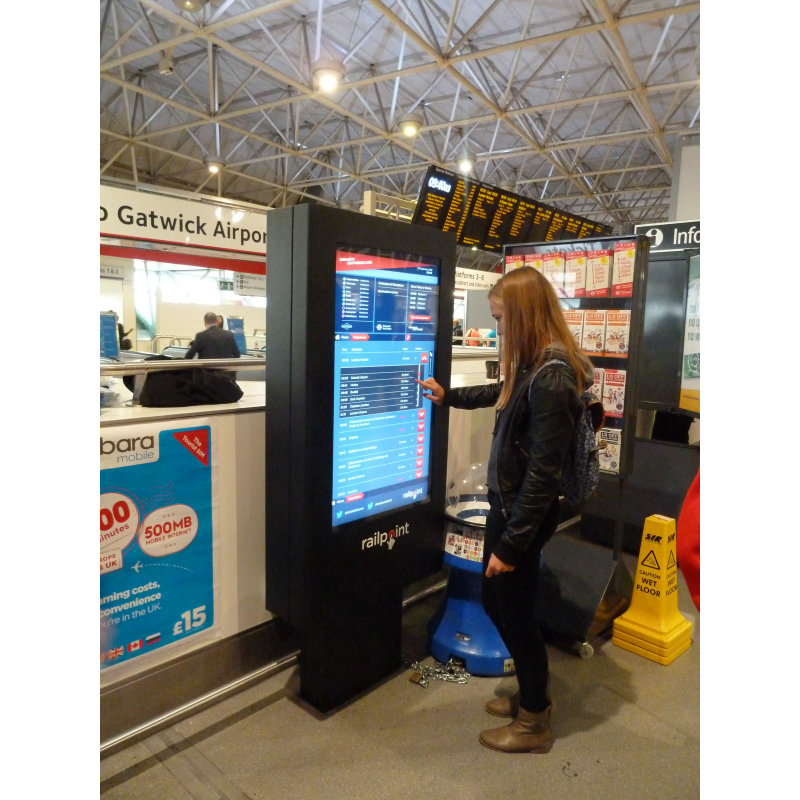

A girl using a dust proof touch screen check-in machine

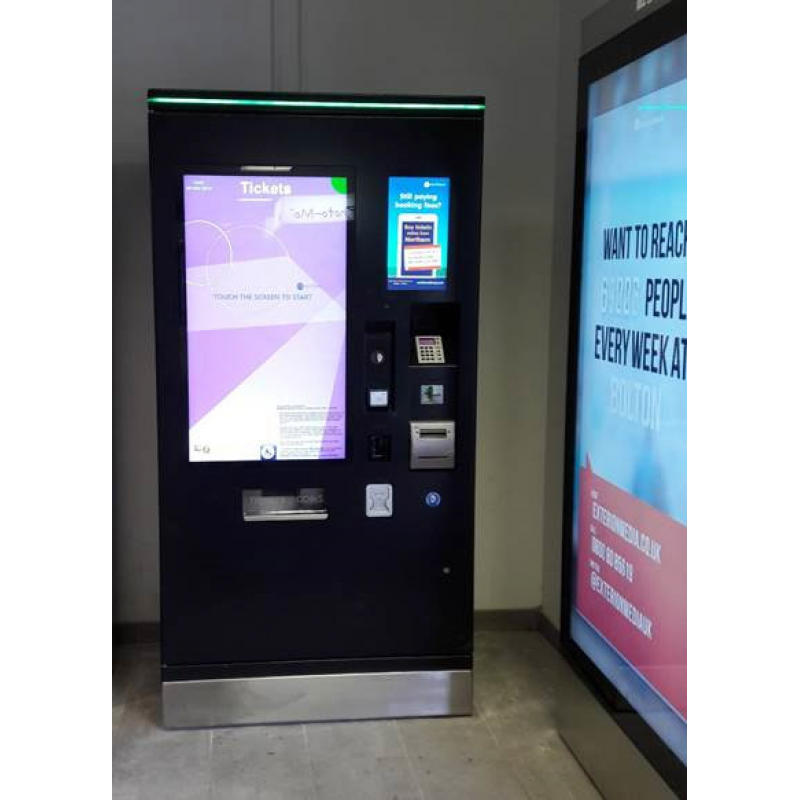

A dust proof touch screen ticket machine

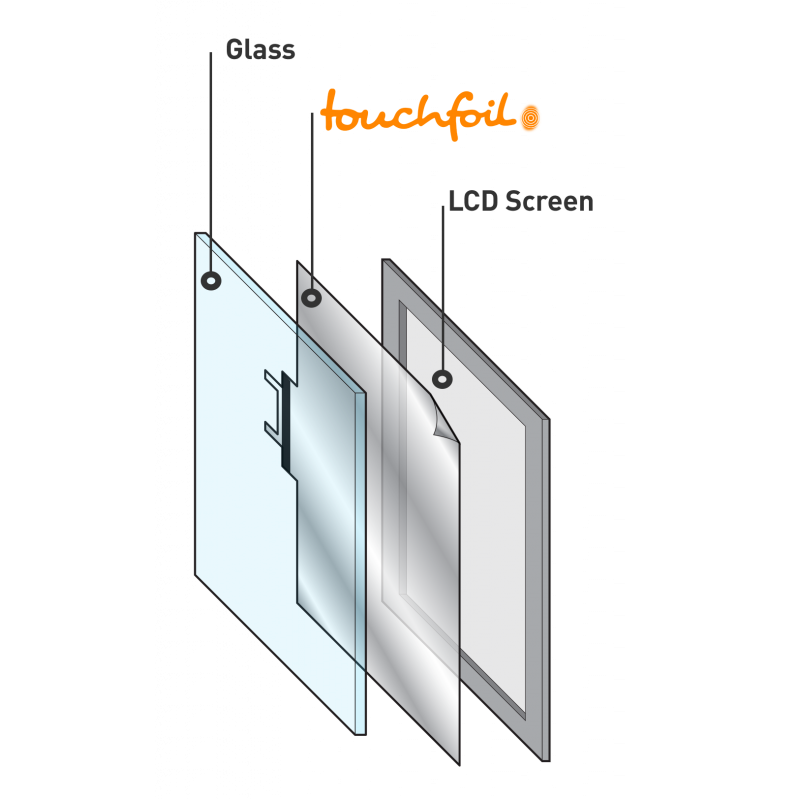

A dust proof touch screen assembly diagram
A dust proof touch screen PCAP foil

Use a projected capacitive (PCAP) foil to create a reliable, dust proof touch screen for industrial environments. PCAP foils convert LCD screens into interactive displays. You receive the benefits of industrial touch screens without the cost of investing in new LCD monitors.

Contact VisualPlanet to find out more.

PCAP dust proof touch screen foil

Use VisualPlanet’s projected capacitive foils to create touch screens for the industrial workplace. When laminated to glass and mounted in front of an LCD screen, a PCAP foil converts the screen into a touch display. Mount the screen in an enclosure rated up to IP68 for complete protection from dust, dirt, water and physical impact.

PCAP foils are reliable and robust. They have a long life in harsh environments so that you receive the maximum return on investment. VisualPlanet’s PCAP foils work even when wearing gloves, providing the benefits of dust proof touch screens without interrupting your employees’ workflow.

Features and benefits of VisualPlanet’s PCAP foils

  • Reliable: PCAP foils are ideal for creating reliable touch screens that work day and night. You benefit from reduced downtime, improved manufacturing efficiency and the best return on investment.
  • Robust: VisualPlanet’s PCAP overlays work through glass up to 10 millimetres thick. The LCD screen is protected from accidental and deliberate damage. Ideal for the industrial workplace.
  • Protected: PCAP foils work in hot, cold and wet conditions. Use PCAP foils with enclosures rated up to IP68 for complete protection from water, dust and dirt. Your dust proof touch screen functions reliably in all environments.
  • Bespoke: VisualPlanet’s PCAP foils are available in a range of sizes from 15 to 85 inches. Ideal for small, interactive workstations or large, digital displays.
  • Guaranteed: VisualPlanet has 15 years of experience manufacturing PCAP foils for international brands. As the market leader in PCAP technology, VisualPlanet provides excellent customer support and a two-year warranty.

For more information, talk to VisualPlanet today.

PCAP foil technical specifications

Detection method

Projected capacitive using a 10-micrometre copper sensing array.

Size 15 to 85 inches. Larger foils available on request.
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response 6 to 8 milliseconds.
Controller board USB controller board. Specification depends on size of foil.
Operational temperature range -10°C to +60°C.
Humidity 95% at +60°C.

Contact VisualPlanet to find out more about PCAP dust proof touch screen foils.
