Interactive PCAP touch screen foil creates a unique customer experience

PCAP touch screen [15” – 85” Touchfoil]

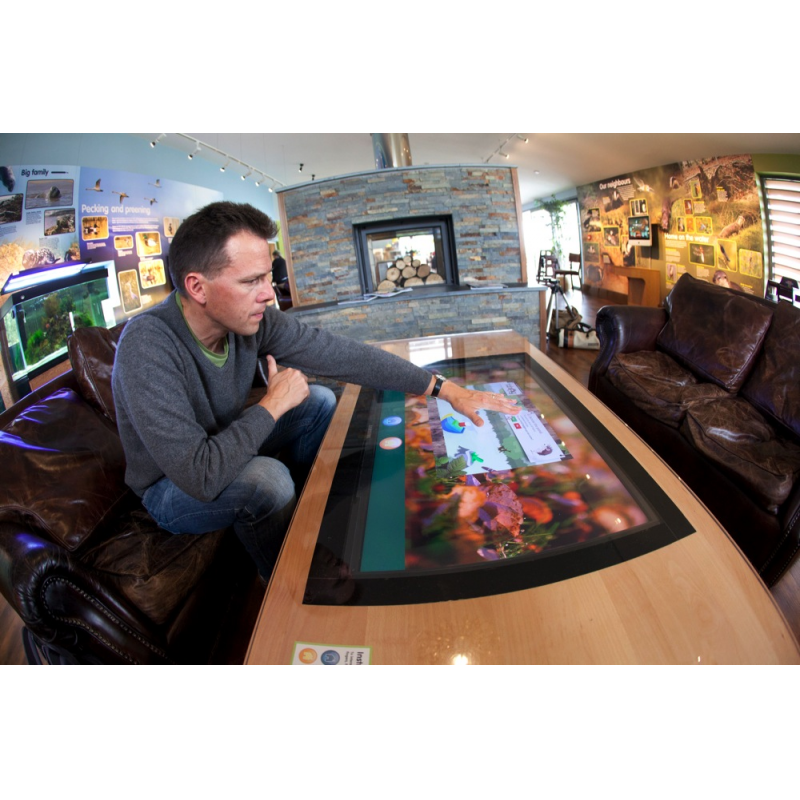

A man using a PCAP touch screen table

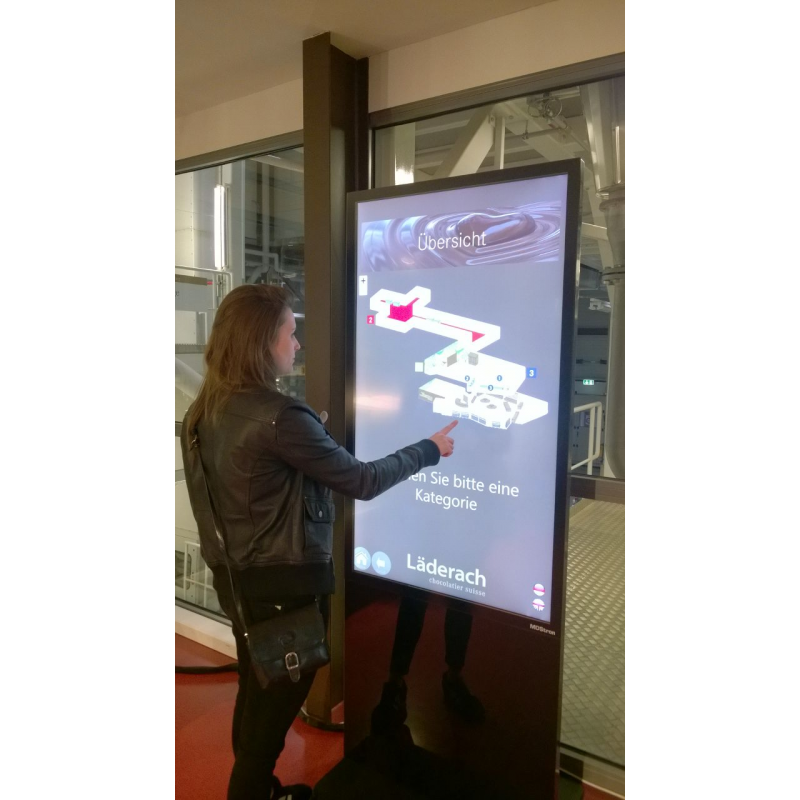

A woman using a PCAP touch screen totem

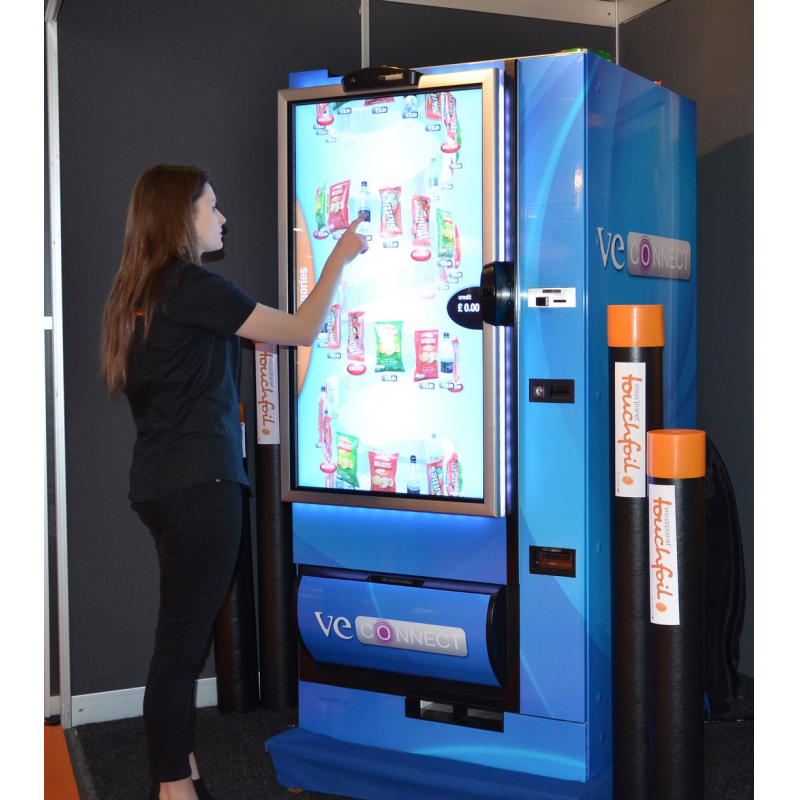

A woman using a PCAP touch screen vending machine

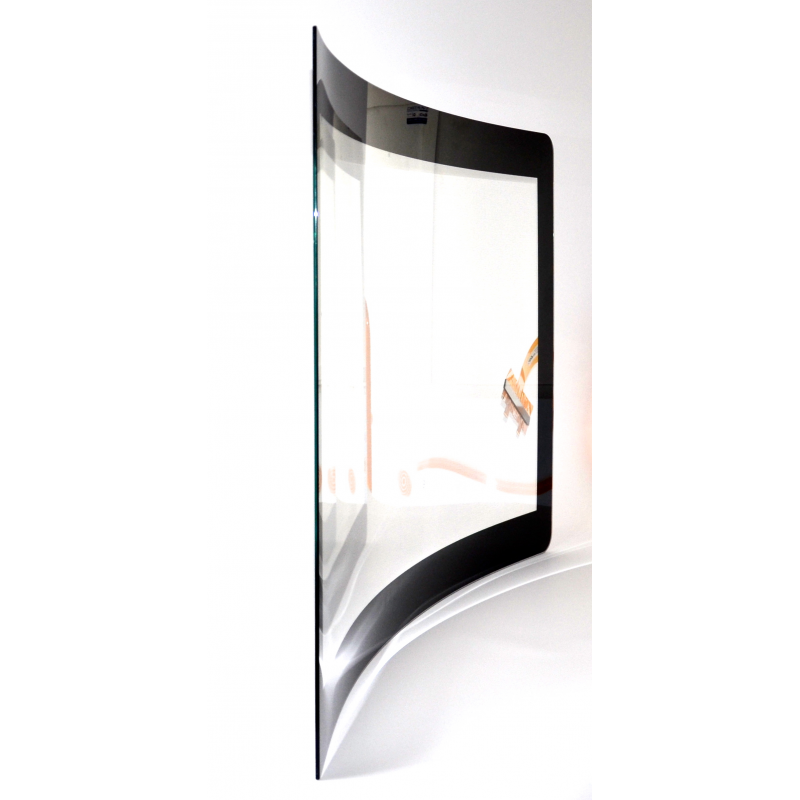

A curved glass PCAP touch screen

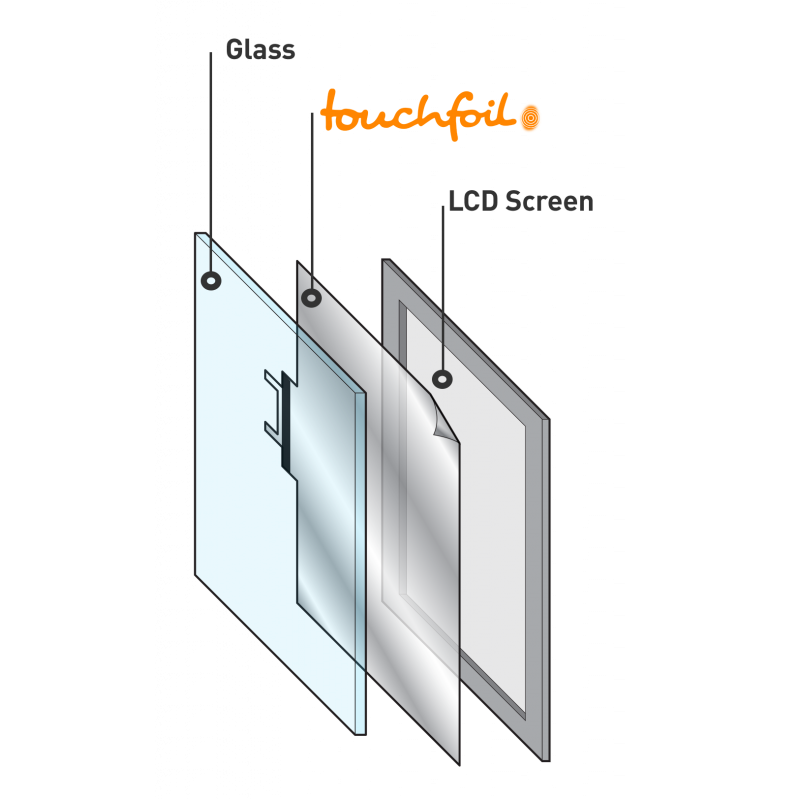

a PCAP touch screen assembly diagram

With a PCAP touch screen foil, you can convert your LCD screen into an interactive experience. PCAP screens are ideal for industrial, commercial and public touch screens in all locations.

Your touch screen works reliably in all conditions, delivering the best experience and generating maximum return on investment.

Contact VisualPlanet today.

Benefits of using a PCAP touch screen foil

  • High precision
  • Multi-touch functionality
  • High-transparency, resulting in excellent image quality
  • Custom design
  • RoHs, REACh, EMC, FCC and UL compliant

Bespoke PCAP touch screen solutions

VisualPlanet works with industry leading glass manufacturers to fulfil your requirements. Some of the customisable solutions offered by us include:

  • Rugged touch features for industrial purposes
  • Water resistance for outdoor or wet environments
  • UV protection for outdoor touch screens
  • Reusability for temporary objectives

Contact VisualPlanet now to discuss your touch screen requirements.

PCAP touch screen foil technical specifications

Detection method Projected Capacitive (PCAP) using 10 micrometre copper sensing arrays.
Sizes 15 to 85 inches. Larger sizes available on request.
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response

6 – 8 milliseconds.

Controller board

USB controller board. Specification depends on size of foil.

Operational temperature range -10ºC to +60ºC.
Humidity 95% at 60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with many companies and organisations like Adidas, AXE, University of Oregon and Samsung to create high-performing, bespoke touch screens. VisualPlanet offers a two-year warranty and lifetime customer support.

For more information about PCAP touch screen foils, contact us now by filling out the form below.
