Interactive touch foil for engaging, bespoke touch screens

Interactive touch foil [15” – 85” Touchfoil]

An interactive touch foil shop window display

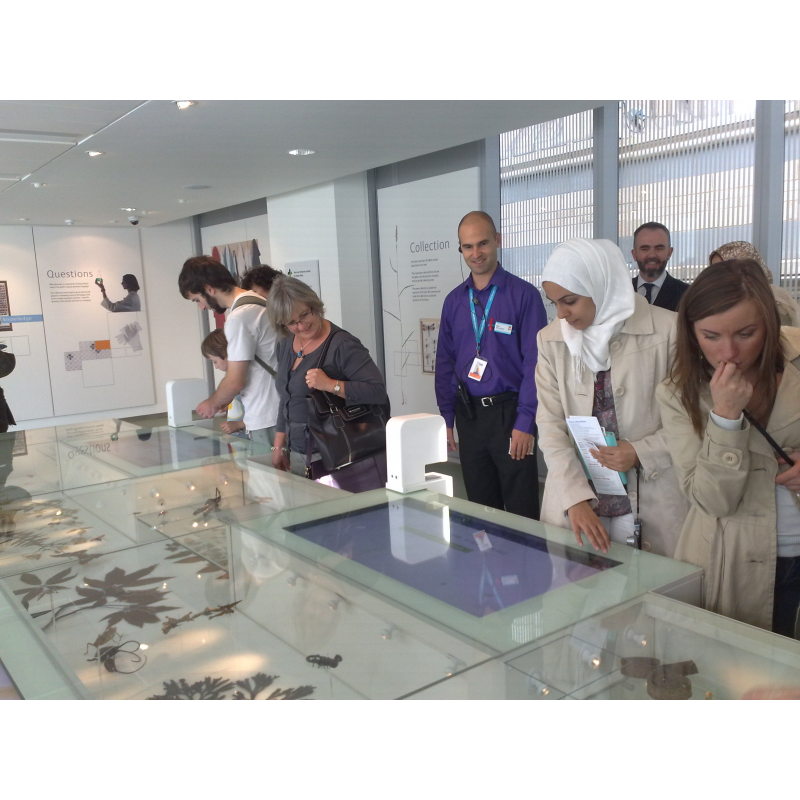

An interactive touch foil table

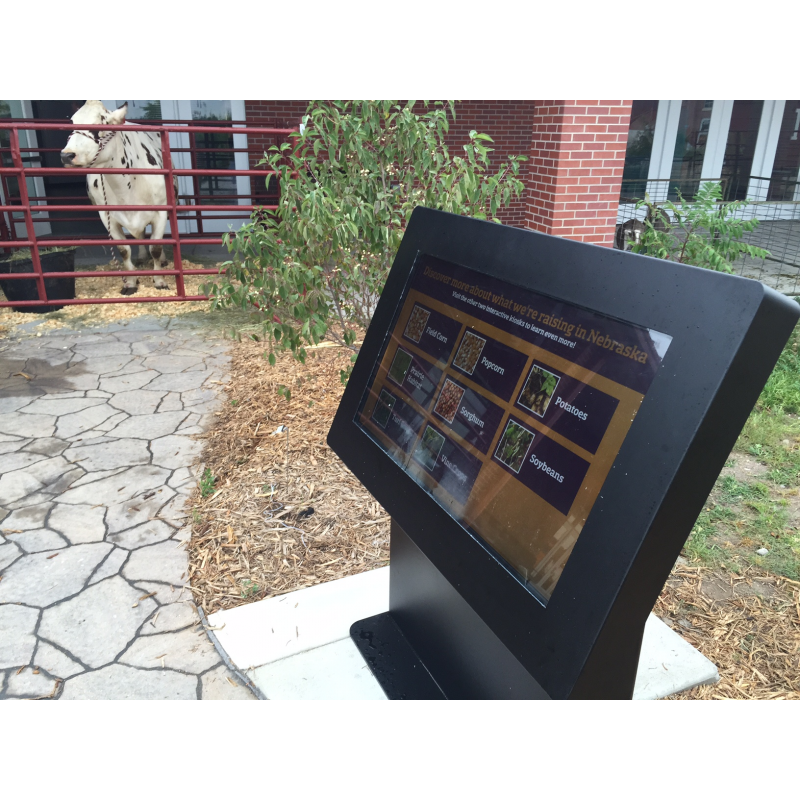

An interactive touch foil kiosk

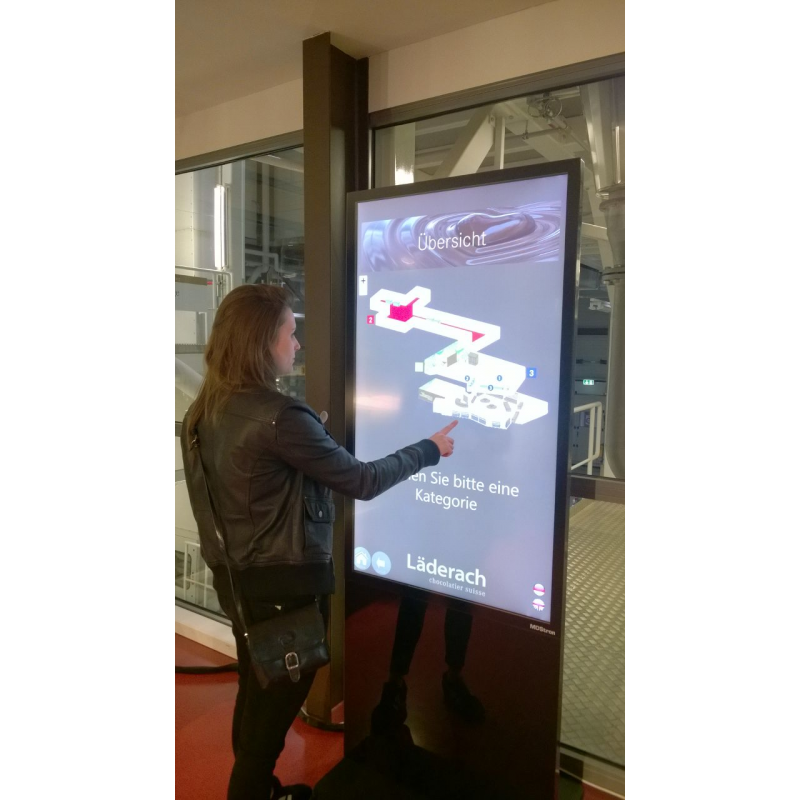

An interactive touch foil indoor totem

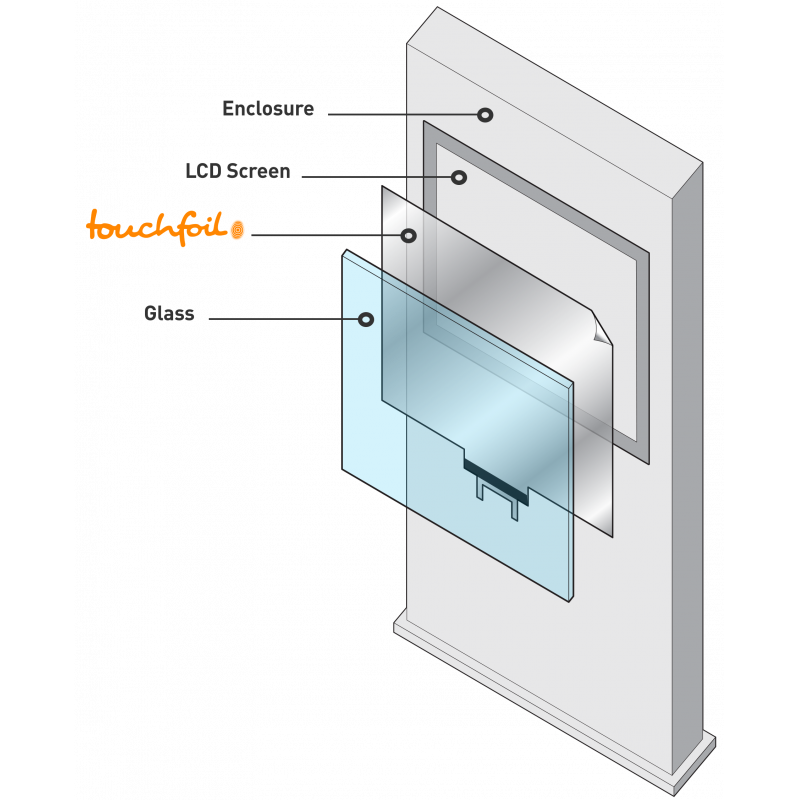

A diagram showing how to assemble an interactive touch foil display

Do you want to integrate touch screens into your business? Apply an interactive touch foil to a glass panel and mount it on an LCD screen to create a touch sensitive surface.

Use PCAP touch screens to:

  • Attract customers
  • Enhance customer experience and engagement
  • Speed up the buying process
  • Boost brand awareness

Contact us to find out more.

Features and benefits of an interactive touch foil

Feature Benefit
PCAP technology High precision, multi-touch, high response speed and works through gloves. All of which improves customer experience and increases engagement.

Enables collaboration and competition on a single screen.

Specialised touch foil sensors The sensor can be used on any non-metallic surface, a range of display sizes, and different shapes. It has flexible mounting options and a choice of glass thickness. Providing you the freedom to select your ideal design.
Compliant RoHs, REACh, EMC, FCC, and UL compliant. This ensures you fulfil the regulations in your country.
Highly customisable The foil can be customised to include rugged touch functionality, a reusable mounting method, a water-resistant option, UV protection and other features to ensure fulfilment of your requirements.

Interactive touch foil

The interactive touch foil can be used for different purposes, including:

  • Digital signage
  • Vending machines
  • Gaming/arcade machines
  • Industrial touch screens
  • ATM machines
  • Ticket machines
  • Interactive retail displays
  • Wayfinding kiosks

Get in touch with VisualPlanet to find out how you can use an interactive touch foil to boost customer engagement.

Interactive touch foil technical specifications

Detection method Projected Capacitive (PCAP) using 10 micrometre copper sensing arrays.
Sizes 15 to 85 inches. Larger sizes available on request.
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response 6 – 8 milliseconds.
Controller board USB controller board. Specification depends on size of foil.
Operational temperature range -10ºC to +60ºC.
Humidity 95% at +60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with organisations like Adidas, AXE, University of Oregon and Samsung to create high-performing touch screens. VisualPlanet offers a two-year warranty and lifetime customer support.

For more information about the VisualPlanet interactive touch foil, contact us now.
