Interactive wayfinding kiosk enhances the visitor experience

Interactive wayfinding kiosk [15” to 85” Touchfoil]

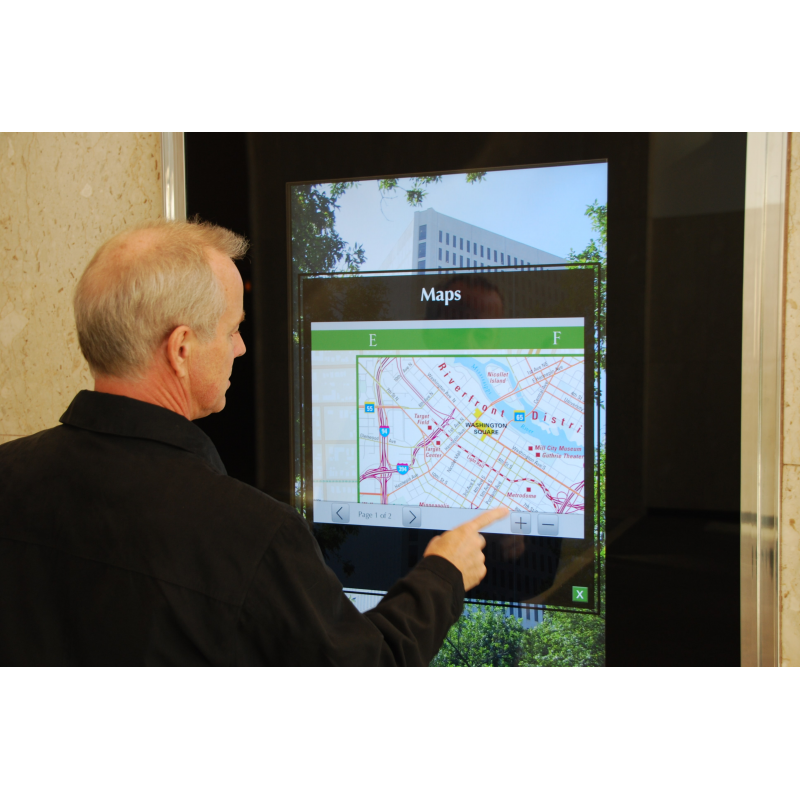

A man using an interactive wayfinding kiosk

A woman using a PCAP interactive wayfinding kiosk

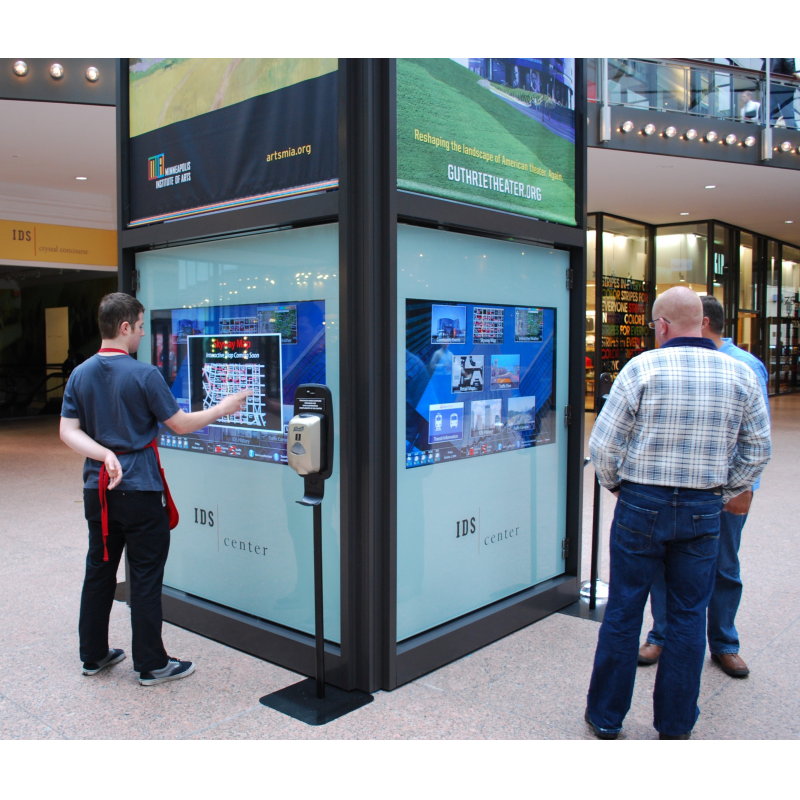

People using an interactive wayfinding kiosk in a shopping centre

The VisualPlanet Touchfoil for an interactive wayfinding kiosk

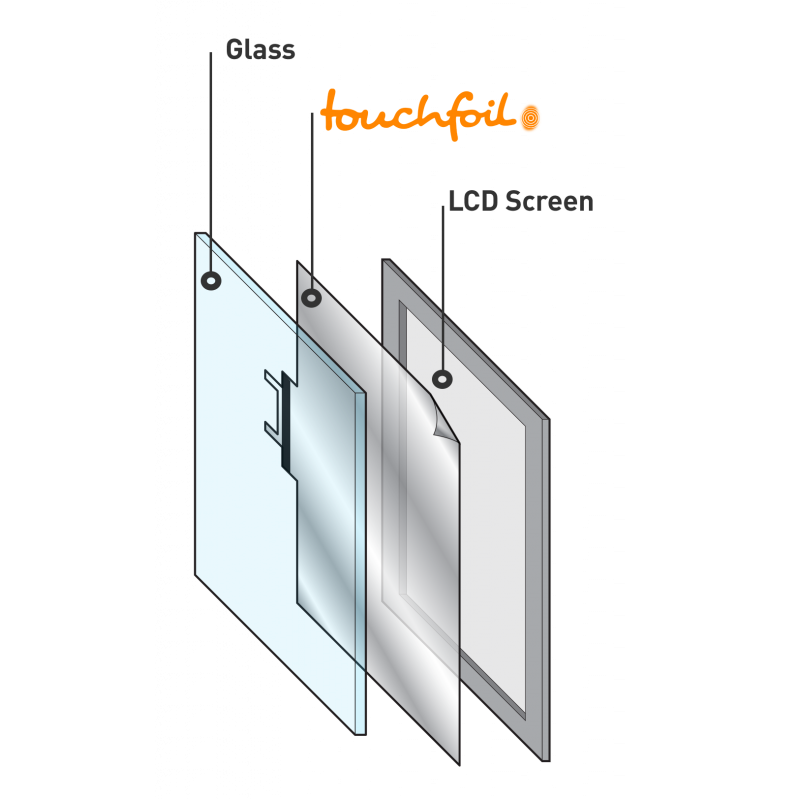

A PCAP interactive wayfinding kiosk assembly diagram

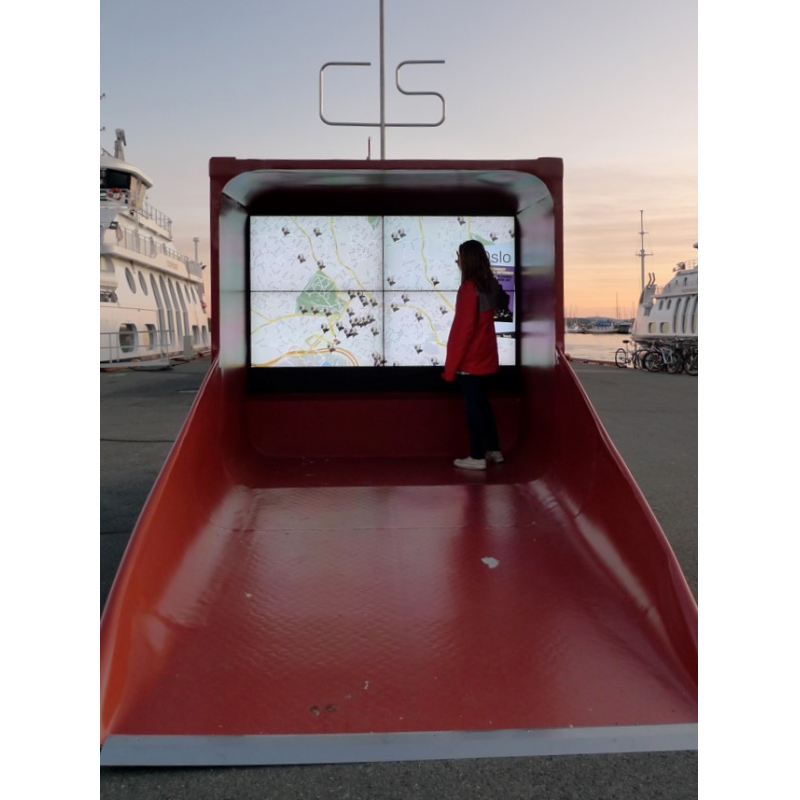

Do you need a wayfinding solution for a city centre, tourist area or shopping centre? An interactive wayfinding kiosk enhances the visitor experience by providing information in an engaging and accessible format.

Projected capacitive (PCAP) foils allow you to create interactive displays for indoor and outdoor locations.

Contact VisualPlanet.

Request a Quote

Interactive wayfinding kiosk using PCAP technology

Projected capacitive foils allow you to create reliable wayfinding kiosks without investing in new LCD displays. Laminate a PCAP foil to the back of a glass surface and mount the glass on the front of an LCD display. The PCAP foil detects when a person touches the glass, converting the LCD display into a touch screen.

PCAP foils work in hot, cold and wet weather and you can use thick glass to protect the LCD screen. Your wayfinding kiosk has a long life in all conditions, generating the maximum return on investment.

A PCAP wayfinding kiosk is ideal for:

City centres
Shopping centres
Tourist areas
Airports
Exhibition centres
Stadiums

Features and benefits of a PCAP wayfinding kiosk

Features	Benefits
Dual touch or multi-touch	Visitors can use multi-finger gestures to zoom, rotate and manipulate maps. Your interactive wayfinding kiosk provides an intuitive and easy-to-use experience.
Weatherproof	VisualPlanet’s PCAP foils work in hot, cold and wet weather. PCAP foils are suitable for use with enclosures rated up to IP68. You benefit from a reliable touch screen all year.
Works through gloves	Users can interact with the display through gloved hands. Ideal for easy use in cold weather.
Custom sizes	Choose the exact size for your needs, from 15 inches to 85 inches.
Thick glass	PCAP foils work through glass up to 10 millimetres thick. You benefit from vandal-proof displays that have a long life and generate the maximum return on investment.

To find out more, contact VisualPlanet today.

Projected capacitive foil technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	15 to 85 inches. Larger foils available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
