Pro cap touch screen foil for interactive industrial displays

Pro cap touch screen [15” – 85” Touchfoil]

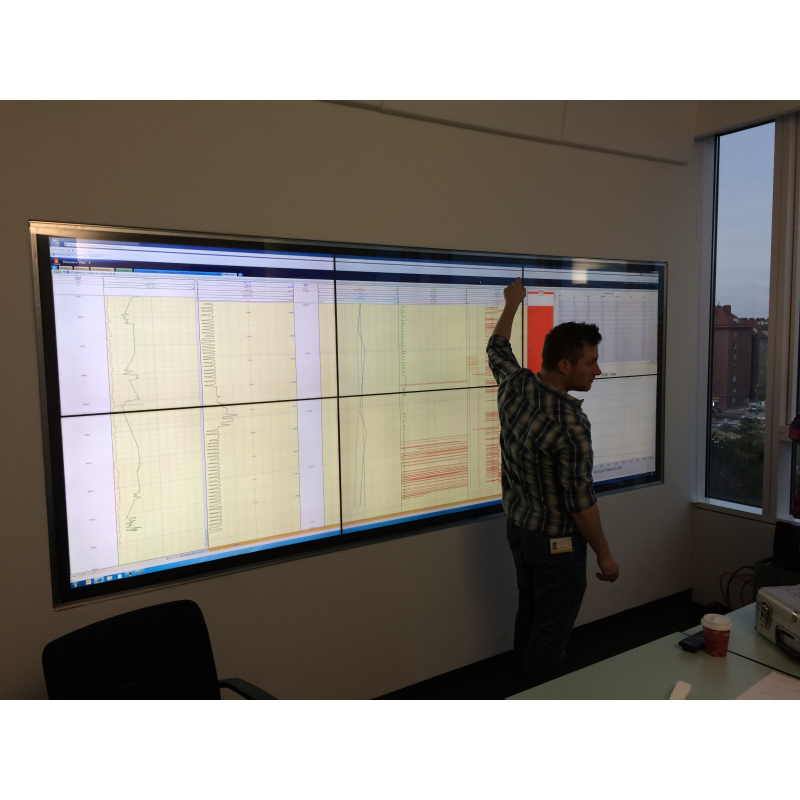

A man using a pro cap touch screen in a meeting room

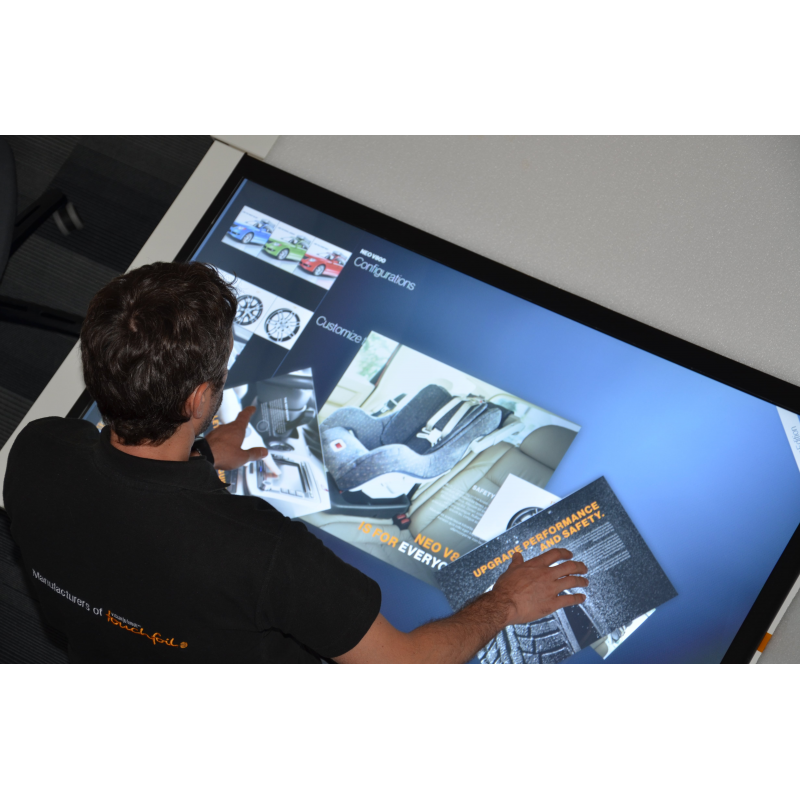

A pro cap touch screen table being used by a man

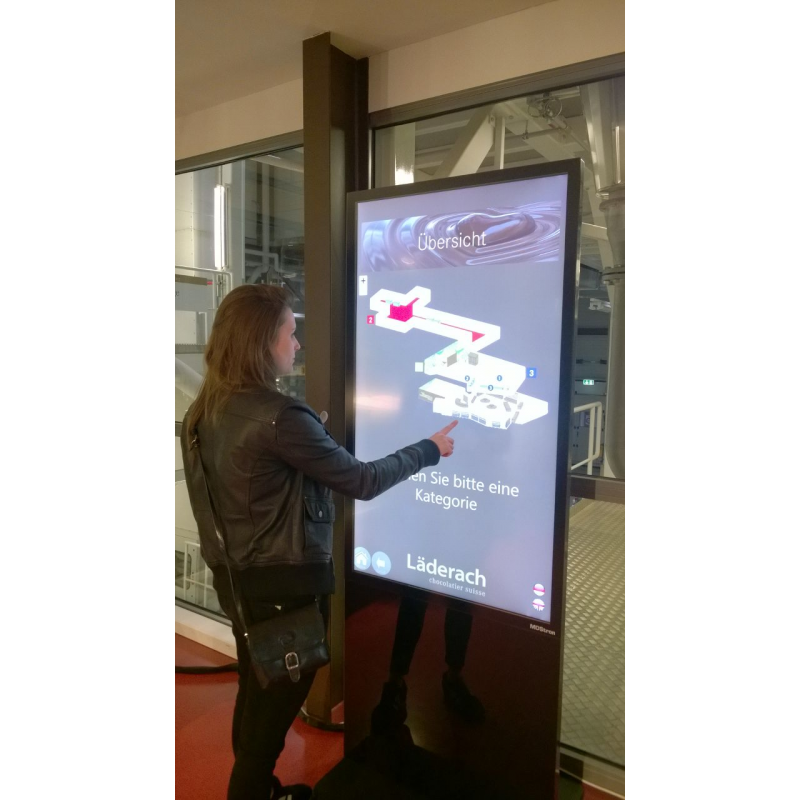

A woman using a pro cap touch screen totem
A pro cap touch screen foil

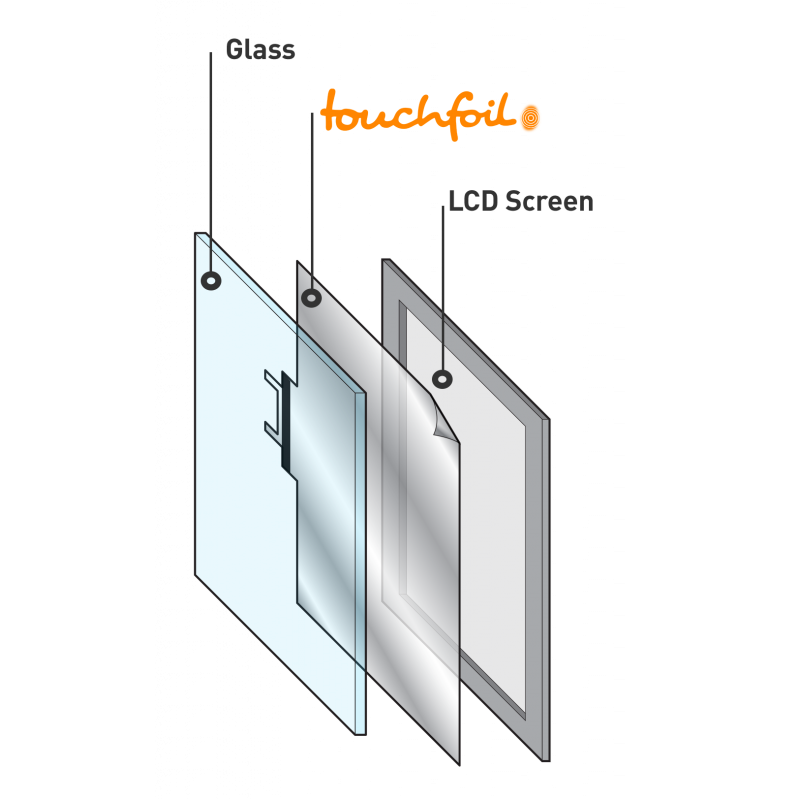

An assembly diagram for a pro cap touch screen

The pro cap touch screen foil, manufactured by VisualPlanet, is ideal for industrial touch screens. Pro cap touch screens are waterproof, robust and enable uninterrupted operations while wearing gloves. You benefit from increased productivity and improved shop-floor efficiency.

Contact us now for a reliable industrial touch screen solution.

The benefits of using a pro cap touch screen foil

  • Robust: Projected capacitive (pro cap) overlays work on glass up to 10 millimetres thick to protect the LCD screen from damage. Your touch screen requires little maintenance and provides maximum return on investment.
  • Reliable: VisualPlanet’s interactive foils work in hot and cold environments. The touch screen operates reliably in wet and harsh environments, minimising any down time and maintaining productivity.
  • Works through gloves: You can use a VisualPlanet TouchfoilTM while wearing gloves, so your workflow is not interrupted.
  • Bespoke: Choose the exact size touch screen foil for your requirements. VisualPlanet can supply toughened glass and UV protection layers so that your display has a long, reliable life in any environment.
  • Compliant: RoHs, REACh, EMC, FCC and UL compliant. This ensures you fulfil the regulations in your country.

Contact VisualPlanet now to discuss your pro cap touch screen requirements.

Pro cap touch screen foil technical specifications

Detection method Projected capacitive using 10 micrometre copper sensing arrays.
Sizes 15 to 85 inches. Larger sizes available on request.
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response

6 – 8 milliseconds.

Controller board

USB controller board. Specification depends on size of foil.

Operational temperature range -10ºC to +60ºC.
Humidity 95% at 60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with many companies like Adidas, AXE, University of Oregon and Samsung to deliver high-performing, bespoke projects. VisualPlanet offers a two-year warranty and excellent customer support.

For more information about pro cap touch screen foils, contact us using the form below.
