Create a bespoke wayfinding touch screen with a PCAP touch foil

wayfinding touch screen [15” to 85” Touchfoil]

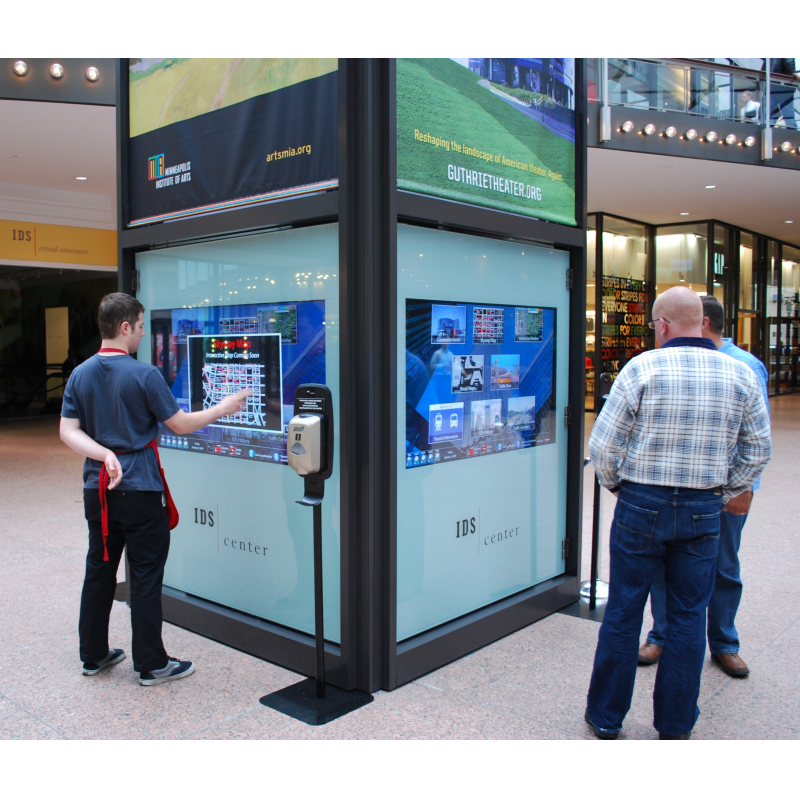

A wayfinding touch screen in a shopping centre

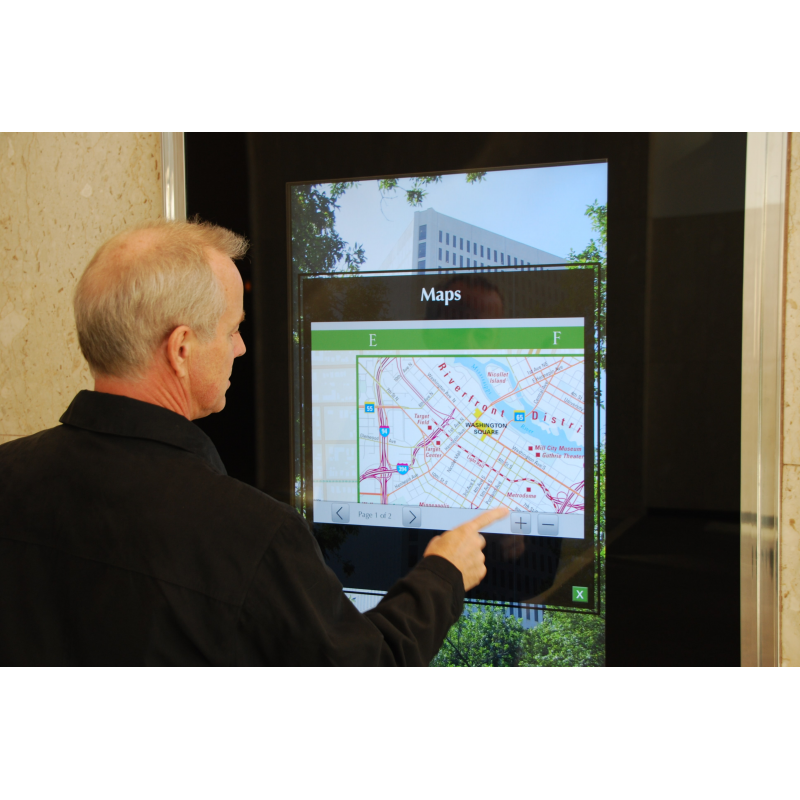

A man using a wayfinding touch screen

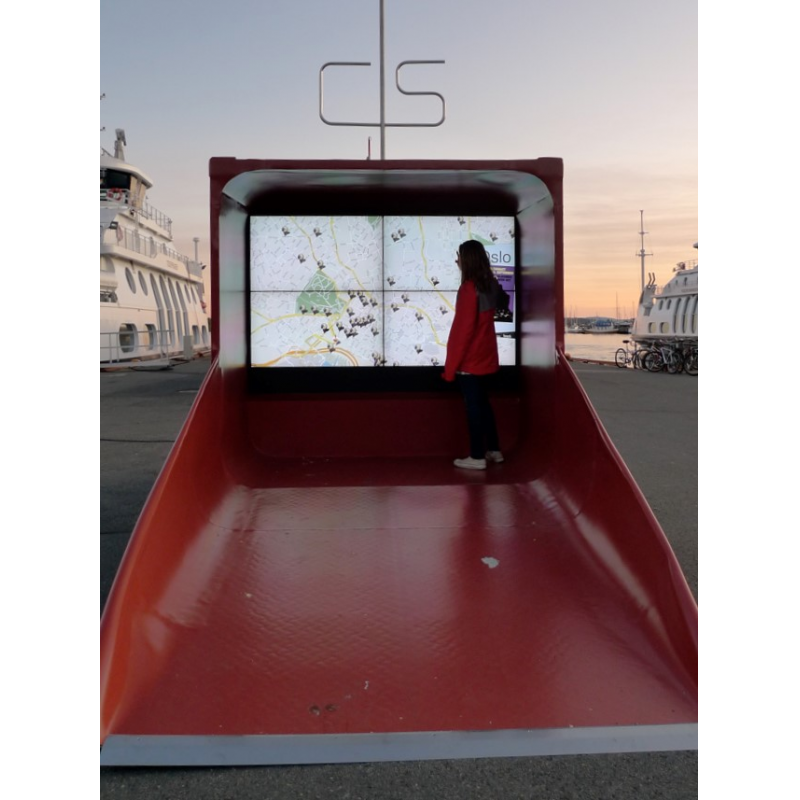

A woman using a wayfinding touch screen in Norway
A wayfinding touch screen PCAP foil

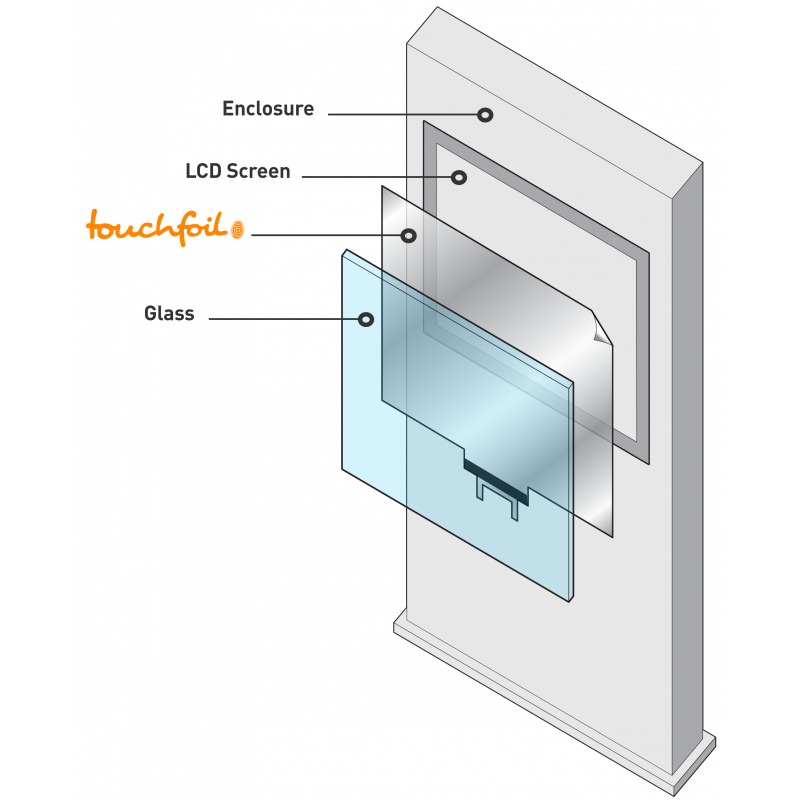

A wayfinding touch screen assembly diagram

Do you need a wayfinding touch screen for a city centre, tourist area or shopping centre? Projected capacitive (PCAP) touch foils allow you to create custom, interactive kiosks that work reliably in indoor and outdoor locations.

PCAP foils provide an intuitive touch interface that enhances the visitor’s experience.

Contact VisualPlanet today.

PCAP foil for a wayfinding touch screen

Projected capacitive foils allow you to create reliable, engaging wayfinding touch screens. Laminate the PCAP foil to the back of a glass surface and mount the glass in front an LCD display to convert it into an interactive screen.

PCAP foils work in hot, cold and wet weather. You can use thick glass to protect the LCD screen from vandalism and damage. Your wayfinding touch screen has a long life in all conditions, generating maximum return on investment and providing the best experience for visitors and tourists.

A PCAP wayfinding touch screen is ideal for:

  • City centres
  • Shopping centres
  • Tourist areas
  • Airports
  • Exhibition centres
  • Stadiums

For more information, contact VisualPlanet today.

Features and benefits of a PCAP wayfinding kiosk

Features Benefits
Dual touch or multi-touch

Visitors can use multi-finger gestures to zoom, rotate and manipulate maps. Your wayfinding touch screen provides an intuitive and easy-to-use experience.


VisualPlanet’s PCAP foils work in hot, cold and wet weather. PCAP foils are suitable for use with enclosures rated up to IP68. You benefit from a reliable touch screen all year.

Works through gloves Users can interact with the display through gloved hands. Ideal for easy use in winter.
Custom sizes

Choose the exact size for your needs, from 15 inches to 85 inches.

Thick glass

PCAP foils work through glass up to 10 millimetres thick. You benefit from vandal-proof displays that have a long life and generate maximum return on investment.

Guaranteed VisualPlanet has over 15 years’ experience manufacturing PCAP foils for international customers. The company offers outstanding customer support and a two-year warranty. You can be confident that your wayfinding kiosk will have a long life.

Projected capacitive foil technical specifications

Detection method Projected capacitive using a 10-micrometre copper sensing array.
Size 15 to 85 inches. Larger foils available on request.
Glass thickness 2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches

Multi-touch: 32 as standard. Up to 40 available on request.

Dual touch: 2.
Speed of response 6 to 8 milliseconds.
Controller board USB controller board. Specification depends on size of foil.
Operational temperature range -10°C to +60°C.
Humidity 95% at +60°C.

Use the form below to find out more about PCAP wayfinding touch screen foils.
