The CASH Magnum Auto | penetrating bolt stun tool

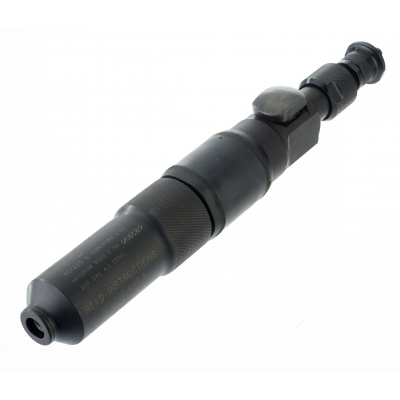

CASH Magnum Auto [5652R, 5652AS, 5660, 5660S]

The CASH Magnum Auto is a versatile, powerful, and easy to use tool. It features automatic bolt. This makes it ideal for busy meat processing plants.

The penetrating bolt stun tool is suitable for most animals. It is reliable and low maintenance. The stun tool uses a wide range of cartridges of various calibres. It can also be fitted with a Stop-Fire feature for safety.

Contact Accles and Shelvoke Request a Quote Request Documentation

CASH Magnum Auto - features

• Automatic bolt return
• Operated with a trigger
• Ergonomic design
• Fast loading action
• Robust
• Reliable
• Available in - .22” - and - .25” calibres
• Can be used with a wide range of cartridges for different animal sizes
• Low maintenance costs
• CE compliant to Machinery Directive 2006/42/EC, CIP approved cartridges and ISO 9001 quality standard

Cleaning tools and maintenance instructions are included

CASH Magnum Auto - products

CASH Magnum Auto .22”	The CASH Magnum Auto - .22” calibre - is used in slaughterhouses worldwide. It is durable and adaptable. Five cartridges are available to stun animals ranging from piglets to very heavy bulls.
CASH Magnum Auto .22” SF	The CASH Magnum Auto can be purchased with a Stop Fire mechanism. This requires the user to simply rotate from the ‘Safe’ to the ‘Fire’ position when ready.
CASH Magnum Auto .25”	The CASH Magnum Auto .25” is one of the most versatile tools in the Accles & Shelvoke range. The larger cartridges generate more force compared to the .22” calibre tool. Six cartridges are available, covering a range of very light to extremely heavy animals.
CASH Magnum Auto .25” SF	The CASH Magnum Auto .25” SF is supplied with the StopFire feature. This stun tool is comfortable and easy to use. It is one of the most complete and successful stun tools available.

CASH Magnum Auto - specifications

Description	Calibre	Product Weight	Max Cartridge	Product Code
CASH Magnum Auto .22"	.22"	2.8 kg	4.5 grain	5652R
CASH Magnum Auto .22" SF	.22"	2.9 kg	4.5 grain	5652AS
CASH Magnum Auto .25"	.25"	2.8 kg	4.5 grain	5660
CASH Magnum Auto .25" SF	.25"	2.9 kg	4.5 grain	5660S

CASH Magnum Auto cartridges (.22" calibre)

Calibre	Colour	Grain	Energy (J)	Suggested Uses	Product Code (Tin 50)	Product Code (Box 1000)
.22"	Pink	1.25	213	Young calves, piglets, lambs and kids	7585T	7585
.22"	Purple	2.5	271	Small cattle, small pigs, ewes and goats	7565T	7565
.22"	Green	3	332	Medium sized cattle, market pigs, horses and other large animals	7632T	7632
.22"	Red	4	407	Heavy cattle and bulls, heavy pigs and large horses	7645T	7645
.22"	Black	4.5	418	Very heavy animals including bulls, sows and boars	7653T	7653

CASH Magnum Auto - cartridges (.25" calibre)

Calibre	Colour	Grain	Energy (J)	Suggested Uses	Product Code (Tin 50)	Product Code (Box 1000)
.25"	Pink	1.25	156	Young calves, piglets, lambs and kids	4121KA	7760
.25"	Yellow	2	276	Small cattle, small pigs, ewes and goats	4121KB	7710
.25"	Blue	3	329	Medium sized cattle, market pigs, horses and other large animals	4121KC	7757
.25"	Orange	3.5	374	Heavy cattle and bulls, heavy pigs and large horses	4121KD	7748
.25"	Black	4	483	Very heavy animals	7754T	7754
.25"	Green	4.5	533	Extremely heavy animals	7725T	7725
