Apex Hydrogen generators

Apex Hydrogen generators [QL-H2]

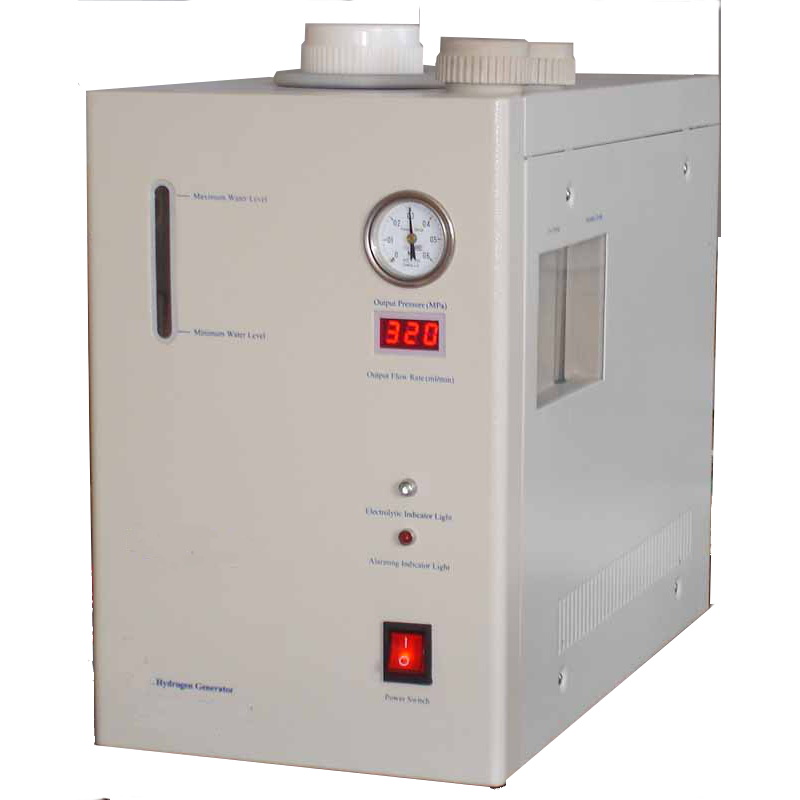

Apex Hydrogen generator showing front panel and controls

Apex Gasgen's range of hydrogen generators use PEM technology to generate high purity hydrogen gas for your application. The range includes several capacities and options and can deliver flow rates of up to 3 liters per minute.


Further details of the Apex Hydrogen generator range:

Characteristics:


Dry Hydrogen up to 99.999% pure

Flow rates up to 3 liters per minute

standard Output pressure of up to 4 bar (58psi) with 7 and 10 bar options available

Standby mode, only delivers Hydrogen when required

Integrated safety features

Simple maintenance.

Our laboratory Hydrogen generators use the newest membrane technology for the electrolytic production of pure H2 gas. This technology was preferred over alternative hydrogen generating techniques because it is clean, requires less maintenance and there is no need to store chemicals to maintain operation. Hydrogen is produced by electrolysis of water through a polymer membrane. Only pure water, either distilled or deionised, is required to provide trouble free long term operation.

Each system includes an integrated dryer to remove any moisture and has a range of safety features built in. Such features include automatic leak detection, automatic shut down when the flow rate drops or when the internal pressure gets too high.

The Apex Laboratory Hydrogen generator range is available in many sizes with output ranging from 0.15 liters per minute up to 3 liters per minute. Contact us to request more information and we will be happy to advise which of our range best suits your requirements.
