TOC generator with compressor

TOC with compressor [TOC-C]

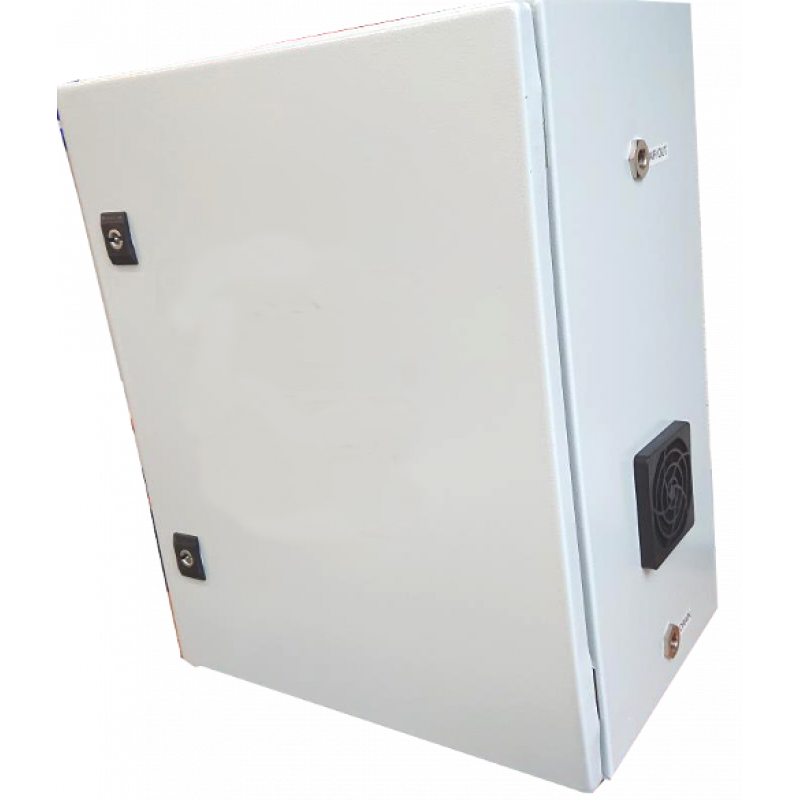

TOC generator with compressor outer case

The APEX TOC generator with compressor uses a regenerative Pressure Swing Adsorption system to provide a hydrocarbon and carbon dioxide free compressed air supply. Our TOC generator includes particle filtration and an inbuilt buffer tank to provide an even flow of hydrocarbon free air at rates of up to 5 liters/minute.

Further details of the APEX TOC generator with compressor


flow rates of up to 5.1litres/min

Output CO2concentration of <1ppm>

Operating pressure range of 3.5 Bar (50psi) to 7 Bar (100psi)

Output dew point of -73°C

Easy installation

Simple maintenance

Using regenerative Pressure Swing Adsorption (PSA) technology our TOC generator with compressor provides stand alone operation with ideal performance, efficiency and reliability. Ultra dry air containing less than 1ppm of CO2 and free of TOC (Total Organic Carbons) is delivered as required. The generator is mounted in its own enclosure that allows it to be easily wall or stand mounted.

Delivering up to 5 liter/minute of TOC free air the TOC generator is ideal for supporting smaller applications. A TOC generator provides a lower power solution and offers a single integrated air treatment option that also removes carbon dioxide and moisture from compressed air.

Each unit is supplied with an integral buffer tank to even out the air flow and includes a full particulate filtration system that removes particles down to 0.01µm in size. An adjustable regulator is also supplied.
