Laboratory dry air generator for a constant supply of ultra-dry air
Dry air generator [Mini, Midi and Maxi]
A dry air generator provides a constant supply of ultra-dry clean air. Three models are available, and each model can be manufactured to meet your requirements.
Each generator uses pressure swing adsorption technology to provide the highest performance, efficiency and reliability. Ideal for laboratories and industrial applications.
Contact Apex Gas Generators today.
How does a dry air generator work?
Apex Gas Generators manufactures air dryers that use pressure swing adsorption technology. Air enters the generator via the inlet filter. Then, the air enters a scrubber tower via a solenoid valve, which dries it and removes the carbon dioxide.
The clean, dry air exits the generator via an outlet filter. A small amount of the dry air enters the second scrubber tower so it can be purged of moisture ready for use. At regular intervals, the generator switches which scrubber tower is being used.
Features and benefits of a dry air generator
- Provides a constant supply of clean, dry air: Get ultra-dry air whenever you need it. You’re not reliant on bottled air, so you save time and money.
- Pressure swing adsorption technology: Ensures the highest performance, reliability and efficiency.
- Three models available: Choose the best flow rate, output pressure and size to meet your requirements.
- Wall or stand mounted: Position the generator in the best location for your employees.
- Easy to install and maintain: Simple operation and easy maintenance allow you use an air dryer in any laboratory or industrial setting.
- One-year warranty and ongoing technical support: Your dry air generator works reliably and efficiently for many years, providing a great return on investment.
Contact Apex Gas Generators for more information.
Dry air generator technical specifications
Three models of laboratory air dryer are available. Each model can deliver a variety of flow rates and pressures to suit your specifications.

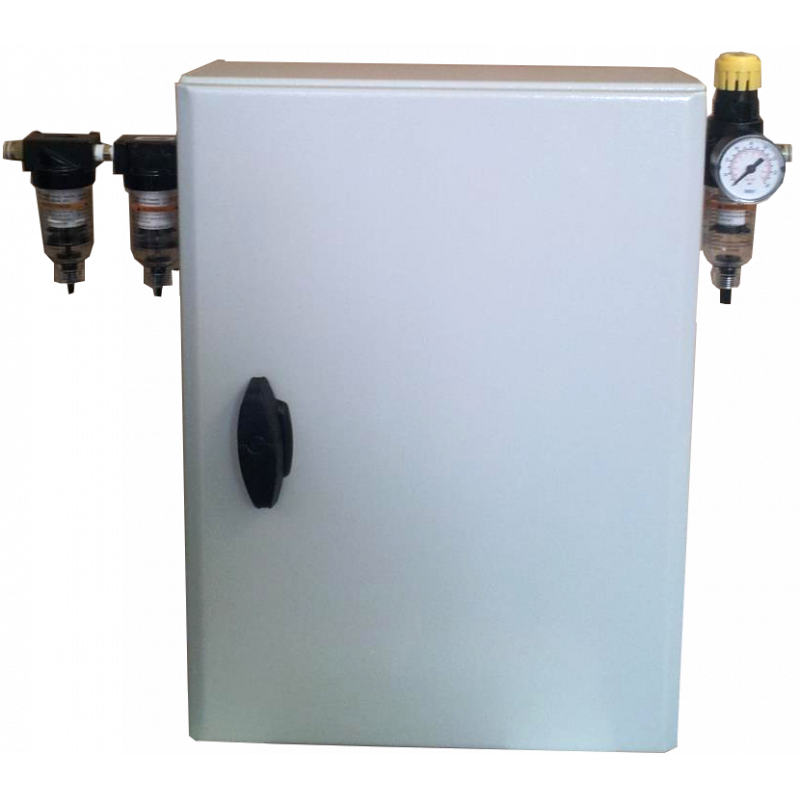

Mini air dryer
| Flow rate | Up to 50 litres per minute |
| Operating pressure range | 3.5 bar (50 pounds per square inch) to 8.2 bar (120 pounds per square inch) |
| Output air dewpoint | -40°C or -73°C |
| Weight | 8 kilograms |
| Dimensions (height x width x depth in millimetres) | 400 x 300 x 150 |
Midi air dryer
| Flow rate | Up to 370 litres per minute |
| Operating pressure range | 3.5 bar (50 pounds per square inch) to 10 bar (145 pounds per square inch) |
| Output air dewpoint | -40°C or -73°C |
| Weight | Four models available with weights of 3.2 kilograms to 6.4 kilograms. Please enquire for more information |
| Dimensions (height x width x depth in millimetres) | Varies according to model. Please enquire for specific dimensions |

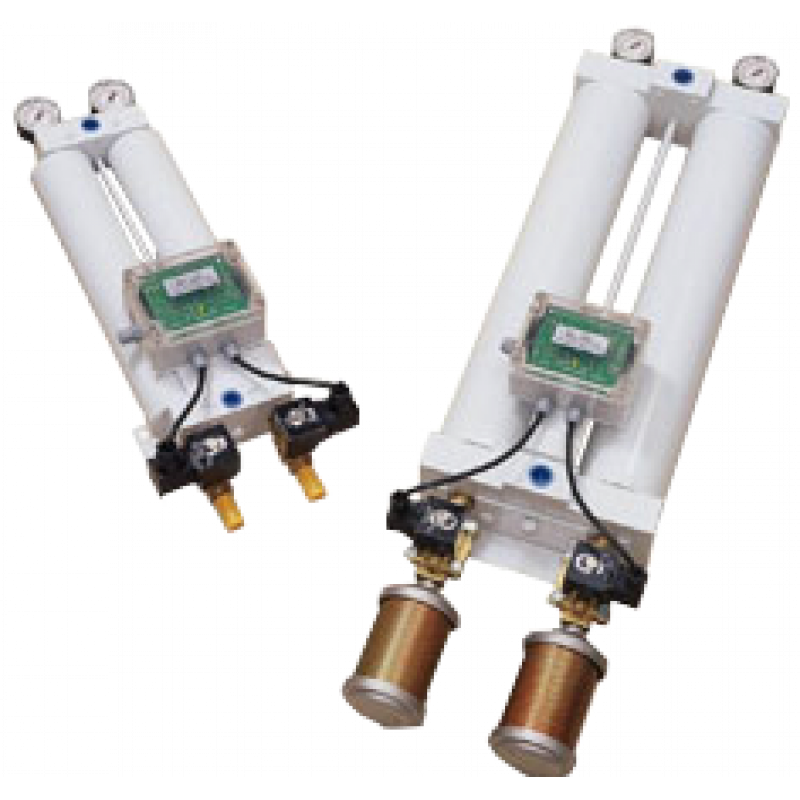

Maxi air dryer
| Flow rate | Up to 100 metres cubed per hour (m3h) |
| Operating pressure range | 3.5 bar (50 pounds per square inch) to 10 bar (145 pounds per square inch) |
| Output air dewpoint |
-40°C or -73°C |
| Weight |
Four models available with weights of 13.2 kilograms to 29.5 kilograms. Please enquire for more information |
| Dimensions (height x width x depth in millimetres) | Varies according to model. Please enquire for specific dimensions |
Contact Apex to discuss the best dry air generator for you.
