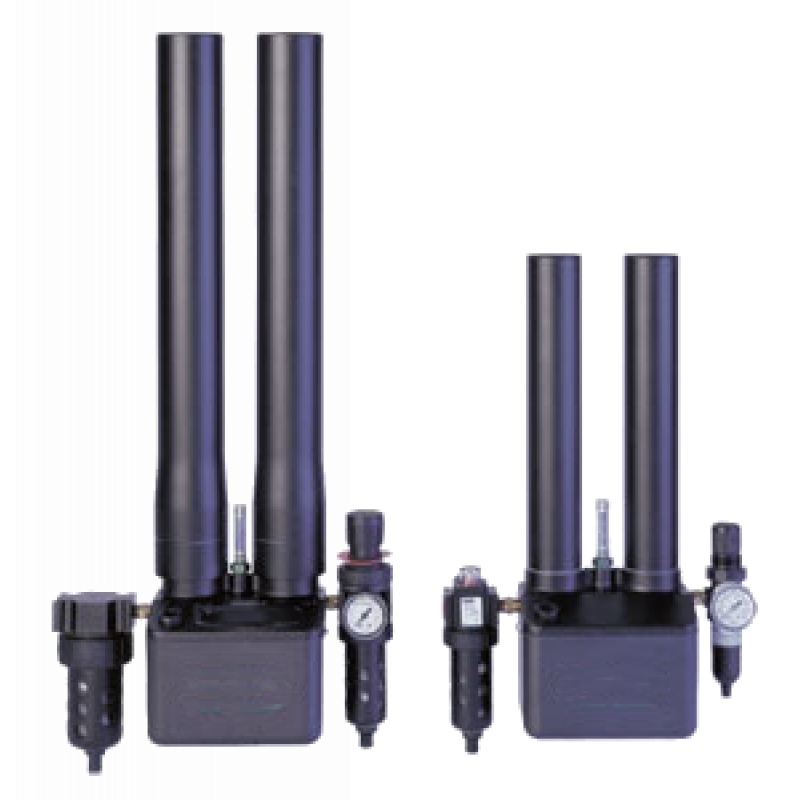

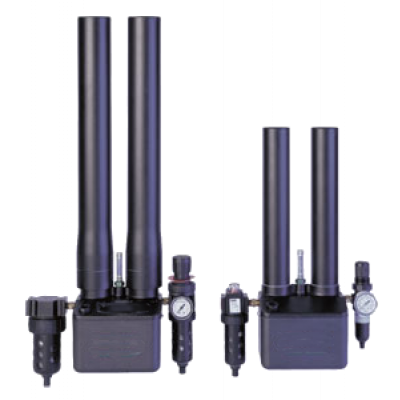

CO2 scrubber providing ultra-dry air for laboratories and industries
CO2 scrubber [CO2 extractor]
A pressure swing adsorption CO2 scrubber removes carbon dioxide from air. You receive a constant supply of ultra-dry air that’s suitable for laboratory and industrial use.
Carbon dioxide scrubbers are easy to install and simple to use. Choose from two models and specify the ideal flow rate, output pressure and mounting option for you.
Contact Apex Gas Generators today.
How does a CO2 scrubber work?
Apex Gas Generators manufactures CO2 scrubbers that use pressure swing adsorption technology. Air from an external source enters the unit via inlet filters. The air enters the scrubber tower, where carbon dioxide is removed and the air is dried.
The dry air exits the machine via an outlet filter and regulator. A small amount of the dry air is used to prepare the second scrubber tower for use. The unit switches which scrubber tower is being used at regular intervals.
Why choose a carbon dioxide extractor from Apex?
- An uninterrupted supply of ultra-dry, clean air: Get laboratory-grade dry air whenever you need it. You don’t need to rely on bottled air, so you save time and money.
- Pressure swing adsorption technology: Ensures maximum performance, efficiency and reliability.
- Wall or stand mounting: Install the extraction machine in the best location for you.
- Two models available: Each model can provide a variety of flow rates and pressures. You get a solution that meets your exact requirements.
- Easy installation, operation and servicing: Install a CO2 scrubber in any location. Parts are easily accessible, and maintenance is easy. The carbon dioxide removal machine is convenient to operate and own.
- One-year warranty and ongoing technical support: Your machine operates reliably for many years, and technical support is always available, for your peace of mind.
CO2 scrubber technical specifications
| Flow rate | Up to 99 litres per minute |
| Output carbon dioxide concentration | Less than one part per million |
|
Operating pressure range |
3.5 bar (50 pounds per square inch) to 10 bar (145 pounds per square inch) |
| Output air dewpoint | -73°C |
| Weight |
Two models available PCDA12: 5.5 kilograms PCDA20: 9.1 kilograms |
| Dimensions (height x width x depth in millimetres) |
PCDA12: 430 x 203 x 130 PCDA20: 635 x 203 x 130 |
For prices and more information, contact Apex Gas Generators.
Contact Apex Gas Generators
