On-site nitrogen generation system for laboratories and industry

Nitrogen generation system [Nevis and Munro]

How does a nitrogen generation system work?

Apex Gas Generators specialises in on-site gas generation systems that use pressure swing adsorption (PSA) technology.

An air compressor sucks air into the generator. A filter removes contaminants and moisture. A carbon molecular sieve then removes carbon dioxide, oxygen and any remaining moisture. You receive an uninterrupted supply of high-purity nitrogen that’s suitable for laboratory and scientific use.


How does a nitrogen generation system work?

Apex Gas Generators specialises in on-site gas generation systems that use pressure swing adsorption (PSA) technology.

An air compressor sucks air into the generator. A filter removes contaminants and moisture. A carbon molecular sieve then removes carbon dioxide, oxygen and any remaining moisture. You receive an uninterrupted supply of high-purity nitrogen that’s suitable for laboratory and scientific use.

Why use an on-site nitrogen generator?

Receive an uninterrupted supply of gas

A nitrogen generator provides high-purity gas whenever you need it. You never have to use bottled gas again, so you save time and money.

Easy to install, use and maintain Install a nitrogen generator in any location. Anyone can be trained to use a gas generator. You can easily maintain the unit with a service kit from Apex.
Save space A nitrogen generation system takes up less space than gas cylinders. Many generators have castor wheels, and some fit on or under a workbench.

Improve workplace safety

Employees don’t have to move heavy cylinders, and you don’t have to store pressurised gas.

View the range of nitrogen gas generators, below.

The nitrogen generation system range

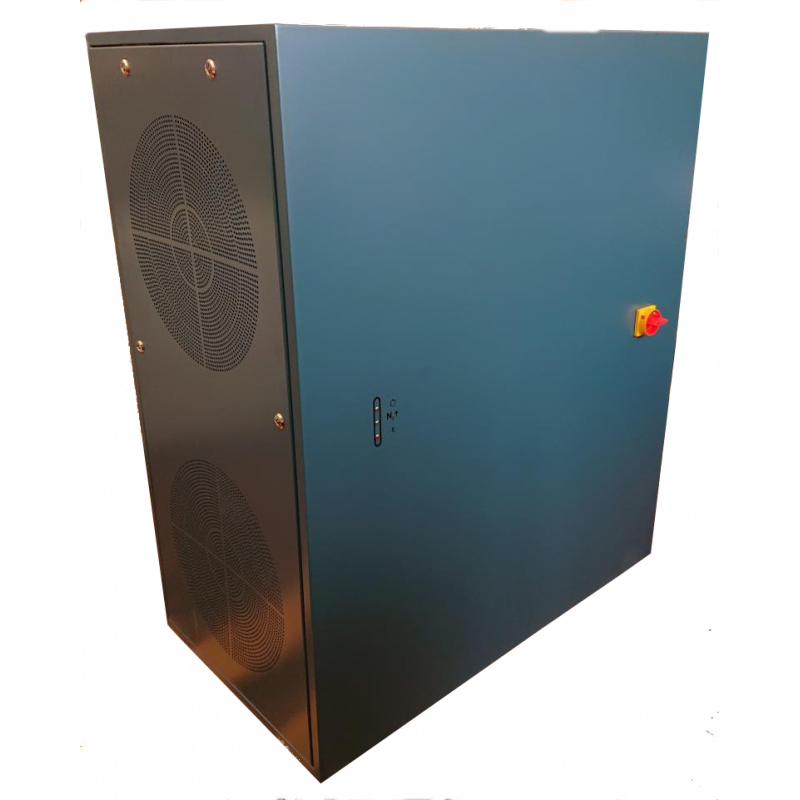

Nevis generator technical specifications:

  • Flow rate: Six models available with flow rates of 1, 2, 3, 4, 5 and 10 litres of nitrogen per minute.
  • Purity level: Up to 99.9995% pure nitrogen.
  • Output pressure: 5.4 bar/80 pounds per square inch.
  • Air compressor: Available with integrated air compressor.
  • Dimensions: Varies according to model. Please enquire for specific dimensions.

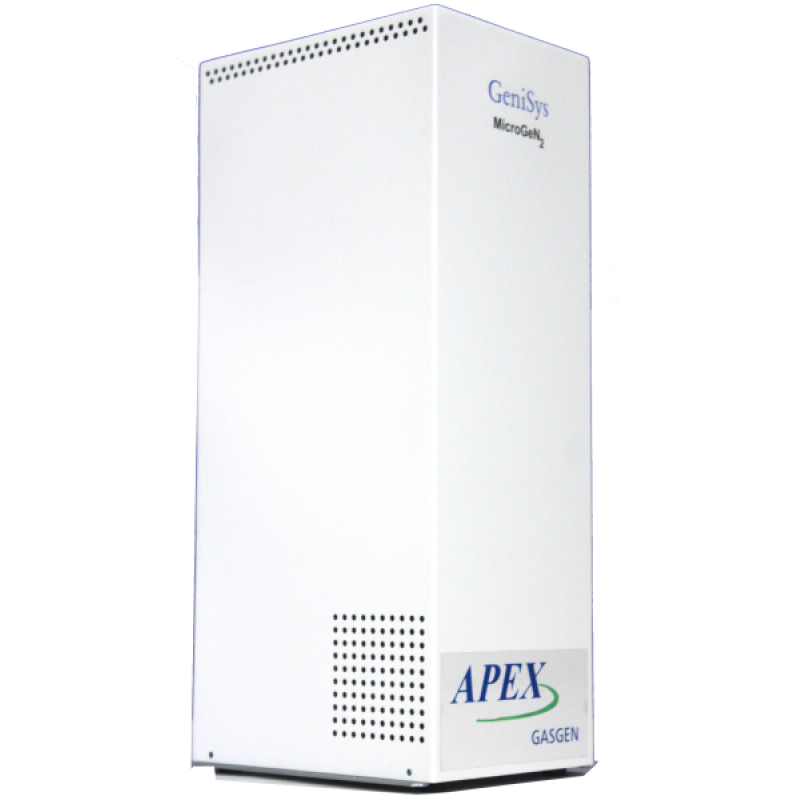

Nevis desktop generator technical specifications:

  • Flow rate: 0.2 litres of nitrogen per minute at the highest purity. Higher flow rates can be achieved at lower purity levels.
  • Purity level: Up to 99.9995% pure nitrogen.
  • Output pressure: 5.5 bar/80 pounds per square inch.
  • Air compressor: Available with integrated air compressor.
  • Dimensions (height x depth x width in millimetres): 480 x 214 x 180

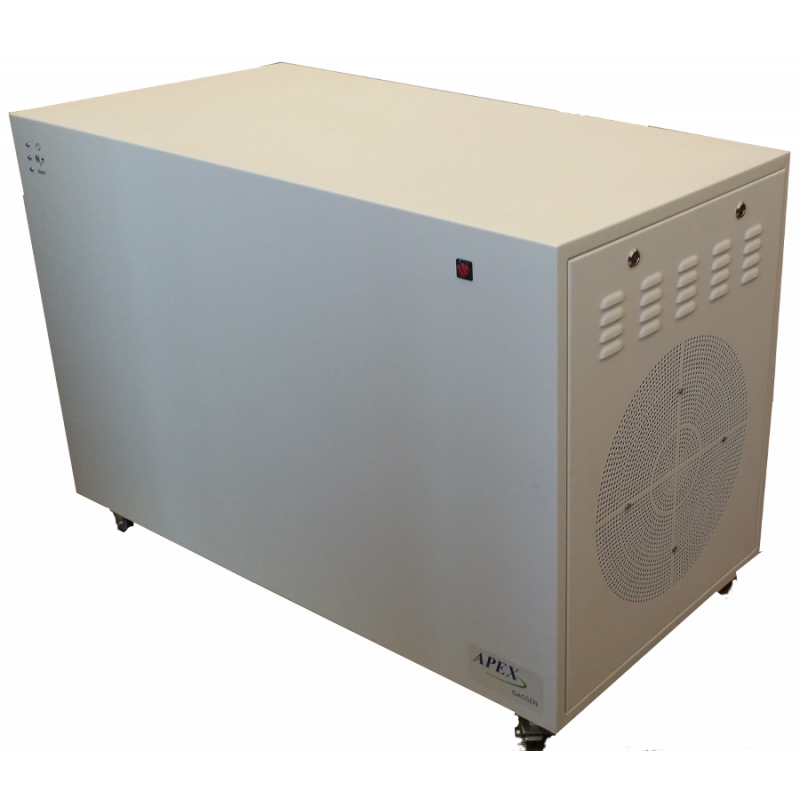

Munro generator technical specifications:

  • Flow rate: Five models available with flow rates of 15, 20, 30, 40 and 60 litres of nitrogen per minute.
  • Purity level: Greater than 95%.
  • Output pressure: 7 bar/100 pounds per square inch.
  • Air compressor: Available with integrated air compressor.
  • Dimensions: Varies according to model. Please enquire for specific dimensions.

Contact Apex to discuss the best nitrogen generation system for you.
