High-purity laboratory hydrogen generator
Laboratory hydrogen generator [QL series]
The laboratory hydrogen generator provides high-purity gas whenever you need it.
The QL series hydrogen generator is available in several models. Choose the best flow rate and output pressure for your requirements. On-site hydrogen generators are easy to install, simple to use and highly cost-effective.
Contact Apex Gas Generators today.
Laboratory hydrogen generator alternative to bottled gas

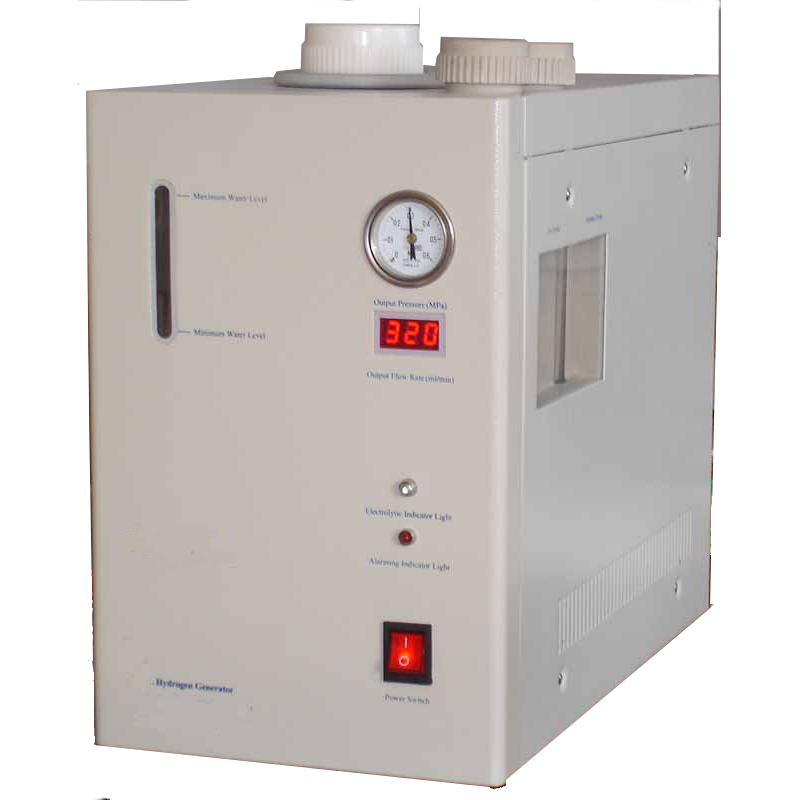

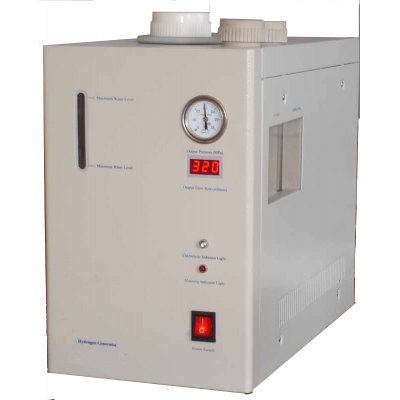

The laboratory hydrogen generator uses polymer electrolyte membrane technology to create high-purity hydrogen. The generator is easy to use, and it requires only distilled or deionised water to create a constant supply of laboratory-grade hydrogen.
The small size of an Apex hydrogen generator makes it easy to install on or under a workbench, so you can use it in any laboratory.
The lab gas generator is an excellent alternative to bottled gas:
- Save money: You never have to pay for bottled hydrogen again.
- Save space: A hydrogen generator requires less space than storing gas cylinders.
- Improve workplace safety: Employees don’t have to move heavy gas cylinders. Only a small amount of hydrogen gas is present in the generator, reducing the risk of accidents.
- Reduce delays: You receive high-purity hydrogen whenever you need it.
Apex Gas Generators provides a one-year warranty and excellent technical support. Your on-site hydrogen generator has a long, reliable life, delivering maximum return on investment.
Laboratory hydrogen generator technical specifications
QL series
| Flow rate | Three models available with flow rates of up to 0.5 litres of hydrogen per minute |
| Purity level | 99.999% pure hydrogen |
| Output pressure | 0.2 bar/3 pounds per square inch to 10 bar/145 pounds per square inch |
| Additional features |
Leak detection Safety alarm Automatic shut down Stand-by mode |
| Dimensions (height x depth x width in millimetres) | 343 x 431 x 228 |
QL high capacity series
| Flow rate | Five models available with flow rates of up to three litres of hydrogen per minute |
| Purity level | 99.999% pure hydrogen |
| Output pressure | 0.2 bar/3 pounds per square inch to 4 bar/58 pounds per square inch |
| Additional features |
Leak detection Safety alarm Automatic safety alarm Stand-by mode |
| Dimensions | Varies according to model. Please enquire for specific dimensions |
Contact Apex Gas Generators for prices and full specifications.
