Use an N2 generator to replace bottled gas and save time and money
N2 generator [Nevis and Munro]
An N2 generator delivers an uninterrupted supply of high-purity nitrogen in any location. An Apex generator is quick to install, simple to use and easy to maintain. You benefit from a one-year warranty, ongoing technical support and bespoke options.
See the Apex Nevis generator range, below, and contact Apex to find out more.
How does an N2 generator work?
An air compressor sucks air into the generator. A filter removes contaminants and moisture. A carbon molecular sieve removes oxygen, carbon dioxide and any remaining moisture. You receive an uninterrupted supply of high-purity nitrogen that’s suitable for laboratory and scientific use.
An N2 generator is a reliable and cost-effective alternative to bottled gas:
- Save money: You never have to pay for bottled nitrogen again.
- Save space: An on-site gas generator requires less space than storing gas cylinders.
- Improve workplace safety: Employees don’t have to move heavy gas cylinders.
- Reduce delays: Receive high-purity nitrogen whenever you need it.
Contact Apex Gas Generators to discuss your requirements.
The Apex nitrogen generator range
Apex Gas Generators specialises in on-site gas generation systems that use pressure swing adsorption (PSA) technology.

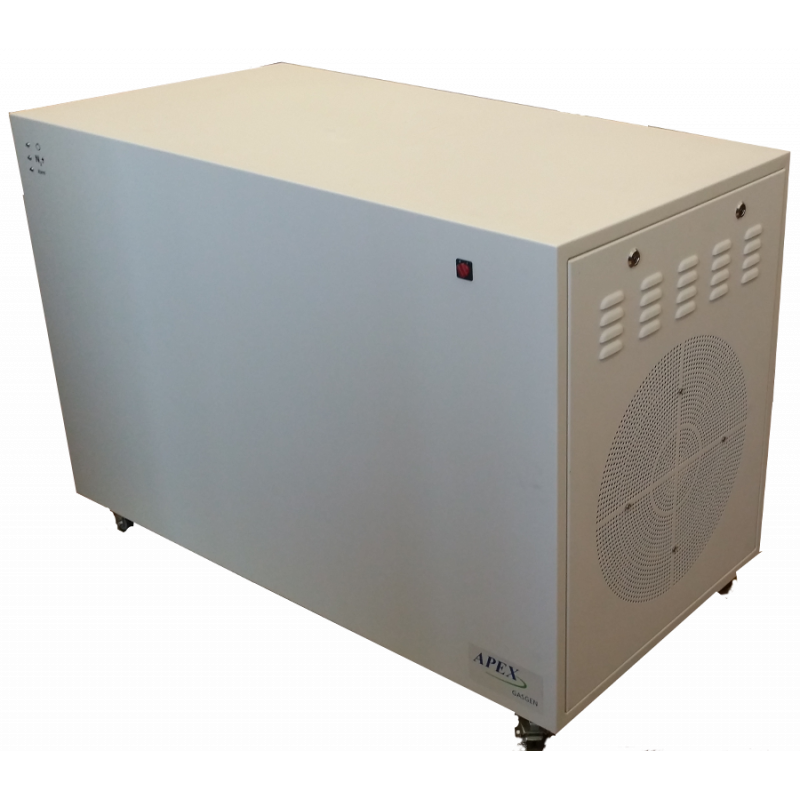

Nevis generator technical specifications:
- Flow rates: Six models available with flow rates of 1, 2, 3, 4, 5 and 10 litres of nitrogen per minute.
- Purity levels: Up to 99.9995% pure nitrogen.
- Output pressure: 5.4 bar/80 pounds per square inch.
- Air compressor: Available with integrated air compressor.
- Dimensions: Varies according to model. Please enquire for specific dimensions.

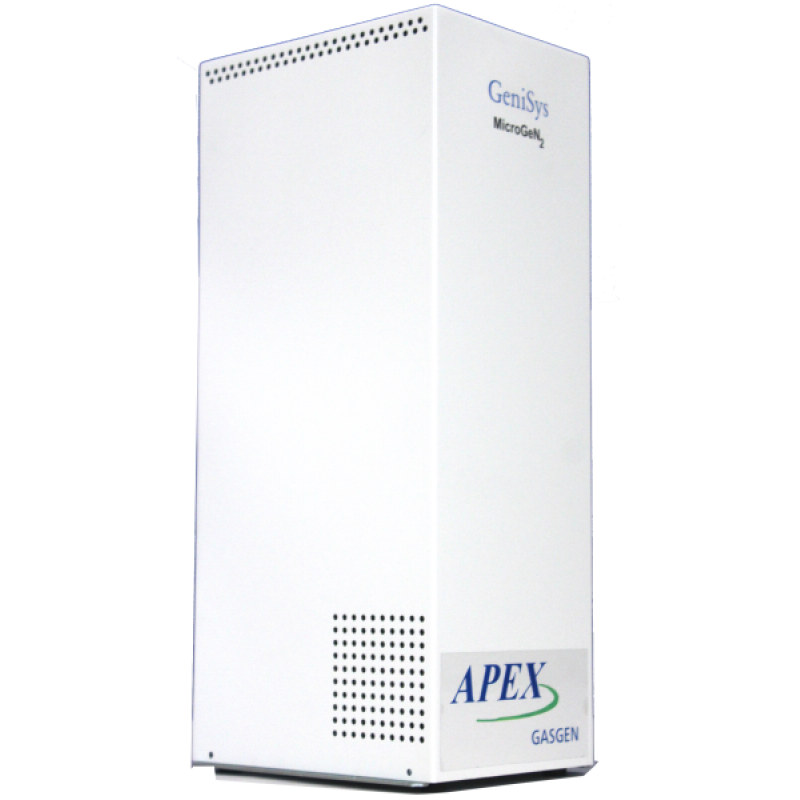

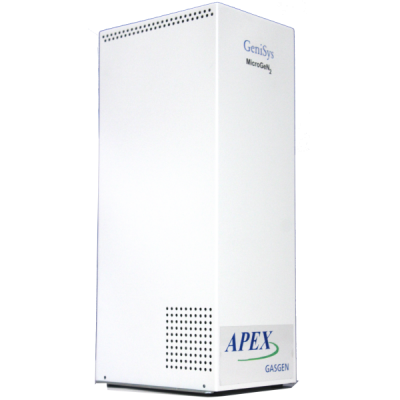

Nevis desktop generator technical specifications:
- Flow rate: 0.2 litres of nitrogen per minute at the highest purity. Higher flow rates can be achieved at lower purity levels.
- Purity level: Up to 99.9995% pure nitrogen.
- Output pressure: 5.5 bar/80 pounds per square inch.
- Air compressor: Available with integrated air compressor.
- Dimensions (height x depth x width in millimetres): 480 x 214 x 180

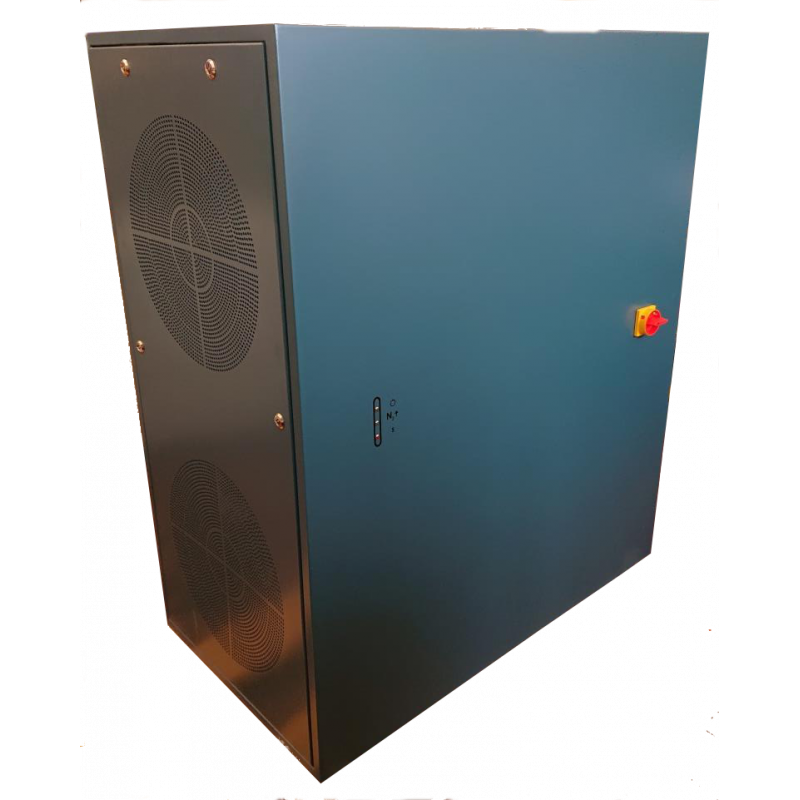

Munro generator technical specifications
- Flow rates: Five models available with flow rates of 15, 20, 30, 40 and 60 litres of nitrogen per minute.
- Purity levels: Greater than 95%.
- Output pressure: 7 bar/100 pounds per square inch.
- Air compressor: Available with integrated air compressor.
- Dimensions: Varies according to model. Please enquire for specific dimensions.
Use the form below to request advice about the best N2 generator for you.
