High-purity pressure swing adsorption nitrogen gas generator
Pressure swing adsorption nitrogen gas generator [Nevis and Munro]
A pressure swing adsorption nitrogen gas generator is an excellent alternative to gas cannisters. Install a nitrogen generator in any location to receive high-purity gas whenever you need it.
Choose from three models or request a bespoke generator that meets your exact requirements.
Contact Apex Gas Generators to learn more.
How does a pressure swing adsorption nitrogen gas generator work?
An air compressor sucks air into the generator. A filter removes contaminants and moisture. A carbon molecular sieve removes oxygen, carbon dioxide and any remaining moisture. You receive an uninterrupted supply of high-purity nitrogen that’s suitable for laboratory and scientific use.
A pressure swing adsorption nitrogen gas generator is a reliable and cost-effective alternative to gas cannisters. You save money, save space and improve the safety and working conditions of your employees.
A nitrogen gas generator provides the following benefits:
- Provides high-purity nitrogen at any time: Ideal for laboratory, industrial and scientific use. The Nevis gas generator range delivers up to 99.9995% pure nitrogen.
- Available with built-in air compressor: The generator is a standalone solution that requires no extra components.
- Compact size and wheels: Standard Nevis nitrogen generators are easy to install under a workbench. Larger models have wheels, so you can move the generator into the best position.
- Desktop version available: Install it easily in small laboratories and tight spaces.
- Standby mode: Save electricity and receive nitrogen only when you need it.
- Bespoke options: Request a custom gas generator that meets your requirements.
- Ongoing technical support and a one-year warranty: Your on-site generator has a long, reliable life and provides maximum return on investment.
Contact Apex Gas Generators to discuss your requirements.
Nitrogen gas generator technical specifications
Three types of pressure swing adsorption nitrogen gas generator are available. Choose the best model for you or contact Apex to discuss a bespoke solution.
| Flow rate | Purity level | Output pressure | Air compressor | Dimensions (height x depth x width in millimetres) | |

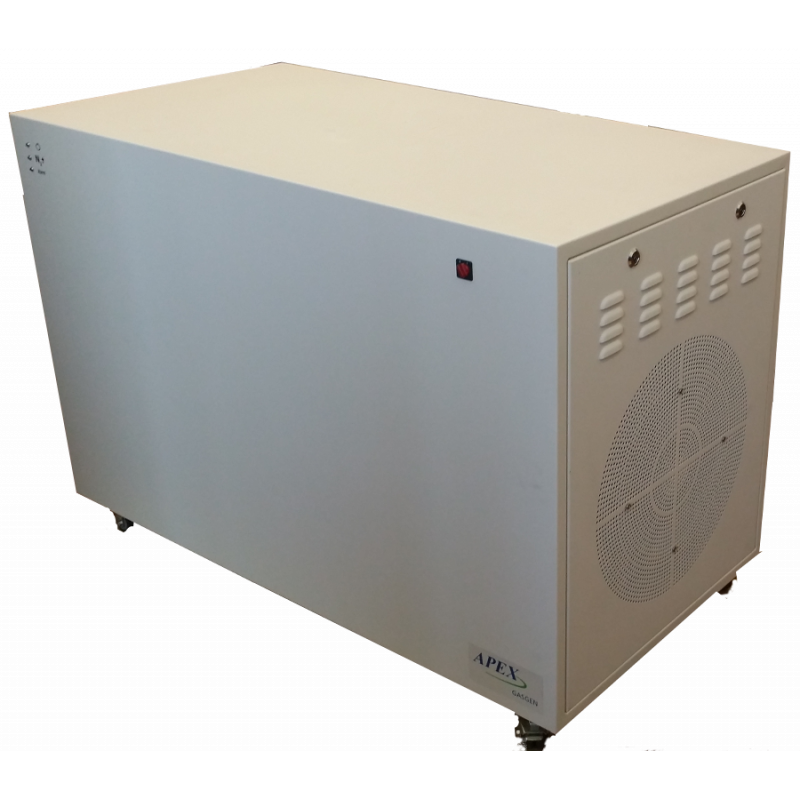

| Nevis generator | Six models available with flow rates of 1, 2, 3, 4, 5 and 10 litres of nitrogen per minute | Up to 99.9995% pure nitrogen | 5.4 bar/80 pounds per square inch | Available with integrated air compressor | Varies according to model. Please enquire for specific dimensions |

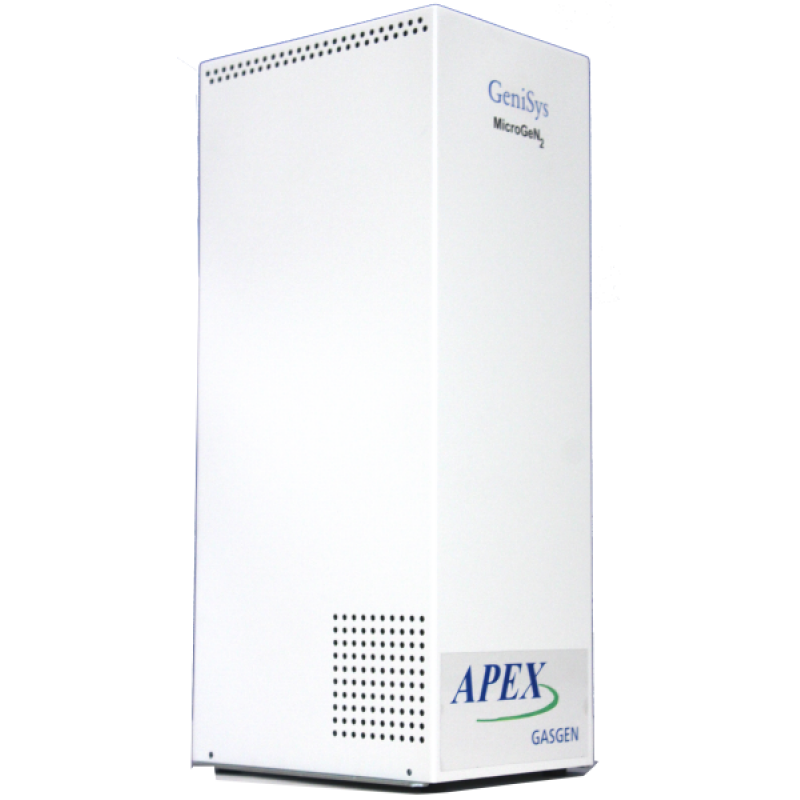

| Nevis desktop generator | 0.2 litres of nitrogen per minute at the highest purity. Higher flow rates can be achieved at lower purity levels | Up to 99.9995% pure nitrogen | 5.5 bar/80 pounds per square inch | Available with integrated air compressor | 480 x 214 x 180 |

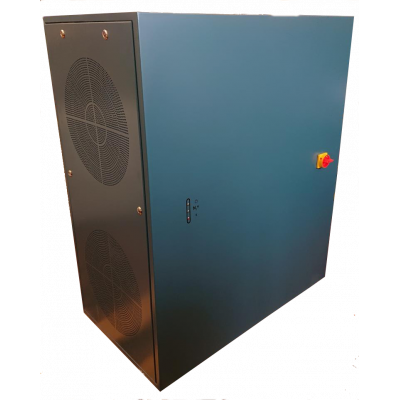

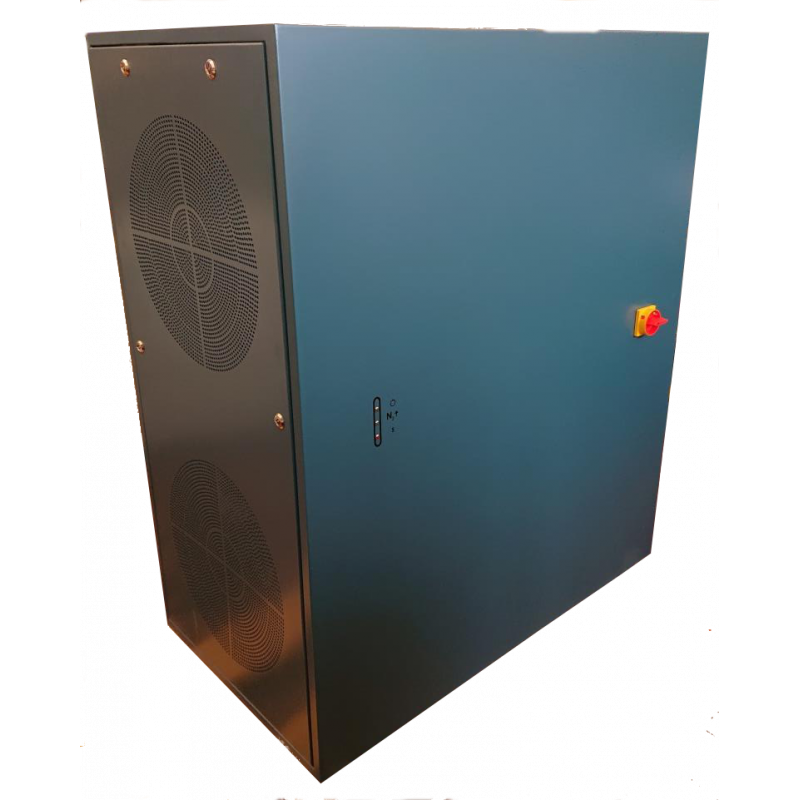

| Munro generator | Five models available with flow rates of 15, 20, 30, 40 and 60 litres of nitrogen per minute | Greater than 95% | 7 bar/100 pounds per square inch | Available with integrated air compressor | Varies according to model. Please enquire for specific dimensions |
Use the form below to request prices and full specifications.
