6 Digit NTP Clock - Galleon Digital wall mounted NTP Clock

6 Digit NTP Clock [CL64-R-M-NTP]

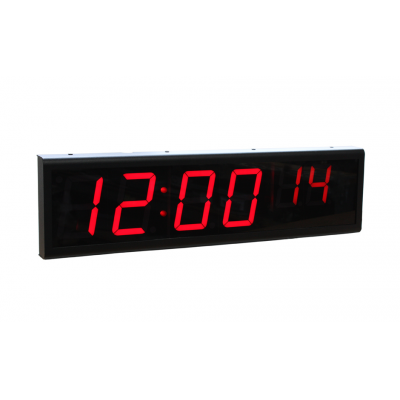

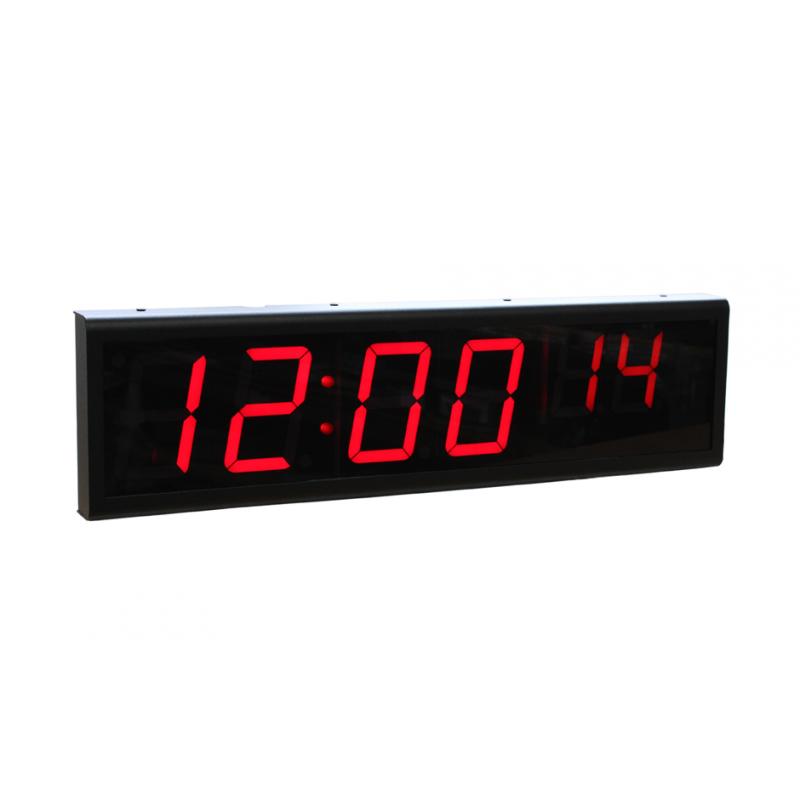

6 Digit NTP Clock main product shot

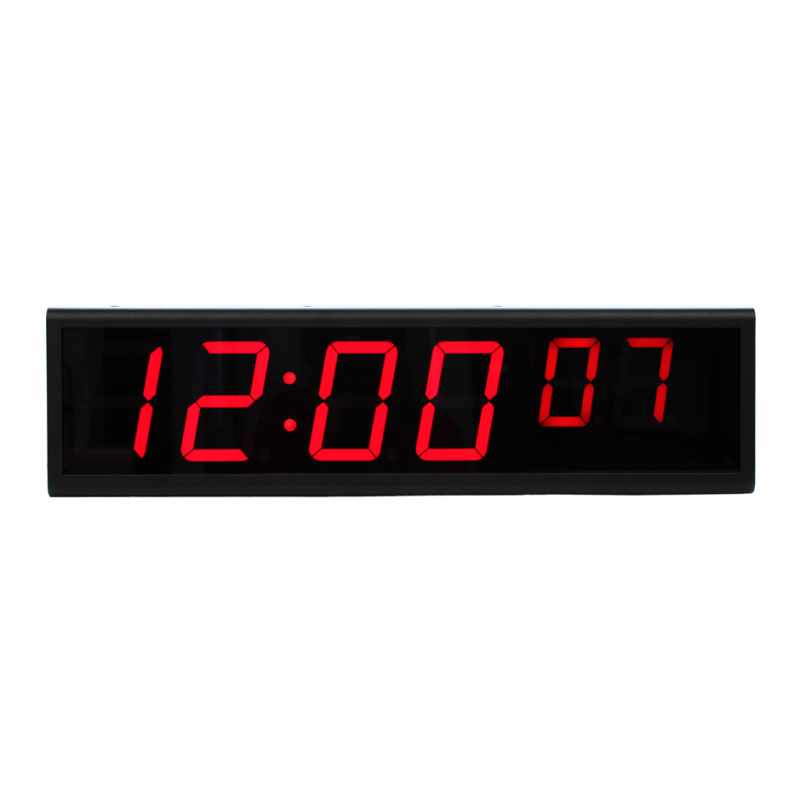

6 Digit NTP Clock Front view

Wall Mounted 6 Digit NTP Clock

Incorporating two extra digits to display time in hours, minutes and seconds (HH:MM:ss) this NTP clock provides a clear display perfect for large open indoor-areas. The 6 digit NTP clock can display in either a 12 or 24 hour format


Featuring a black outer steel casing with a polycarbonate display window, the 6 Digit NTP clock maintains a sufficient level of outer protection, capable of withstanding accidental knocks and collisions that would otherwise damage its lifespan. In addition, the clock also features forward facing radius corners; flush mounted screws, easy wall mounting, and an optically-clear window that’s tinted to distinguish the LED characters and reduce glare from surrounding light sources.

This unit is also available with a plastic casing, and if Power over Ethernet isn’t available, a separate adapter is available as an optional part.

Key Benefits of the 6 Digit NTP Clock

  • Synchronized and highly accurate, the 6 digit NTP clock time is automatically updated to ensure consistency and reliability
  • Uses PoE (Power over Ethernet) for easy installation and operation
  • Hundreds of clocks can be configured from a single PC
  • Lifetime, after sales technical support for continued use well into the future
  • Manufactured in the UK

Key Features of the 6 Digit NTP Clock

Product Specification for the SignalClocks 6 Digit NTP Clock
Display: 7 Segment Red LED
Digit Height: 100mm (4")
Visibility: Up to 23 meters
Display Format: 12 or 24 Hour Format
Clock Accuracy: 200 milliseconds typical
Operating Modes: Real time hours, minutes and seconds
Power Requirement: Power-over-Ethernet PoE Fully compliant with IEEE 802.af
Dimensions: 162mm Height x 595mm Width x 44mm Depth
Operating Temperature: 0°C to 70°C
Humidity: 0% to 85% Non-Condensing
Construction: Powder-coated Mild Steel with Tinted Perspex

What's in the box shipped

  • SignalClocks 6 Digit NTP Clock
  • Instruction Manual
  • Power Injector (used to power the clock if PoE is not available - if necessary)


Additional Extras

The following products are also available for use with the SignalClocks 6 digit NTP Clock:

  • Time servers
  • Power Injector

Contact Galleon Systems
