Standalone GPS Server - NTS-4000-S-GPS

NTS-4000-S GPS Server [NTS-4000-S-GPS]

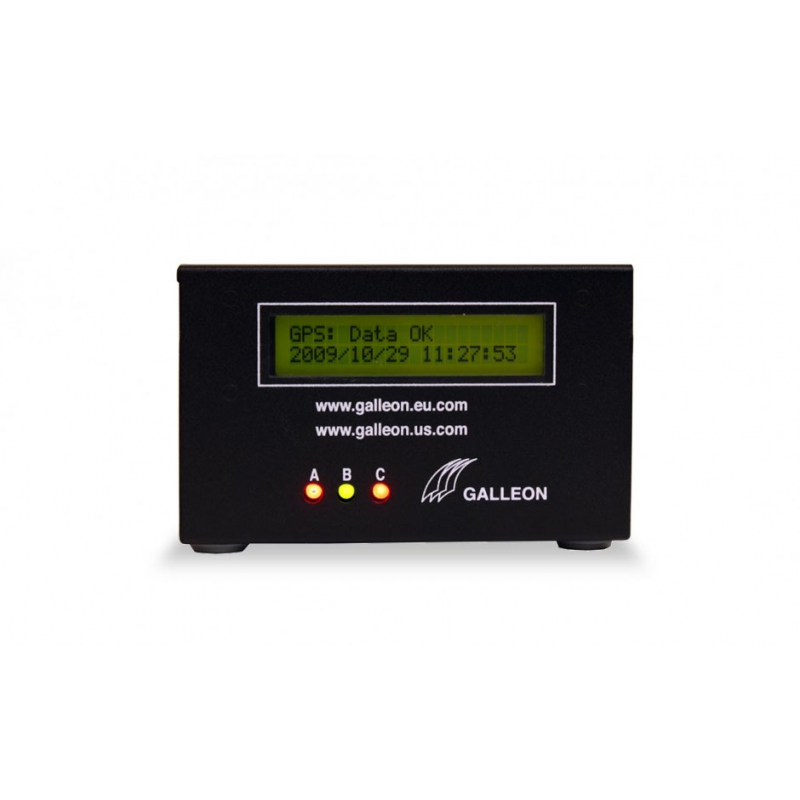

front view of standalone GPS server

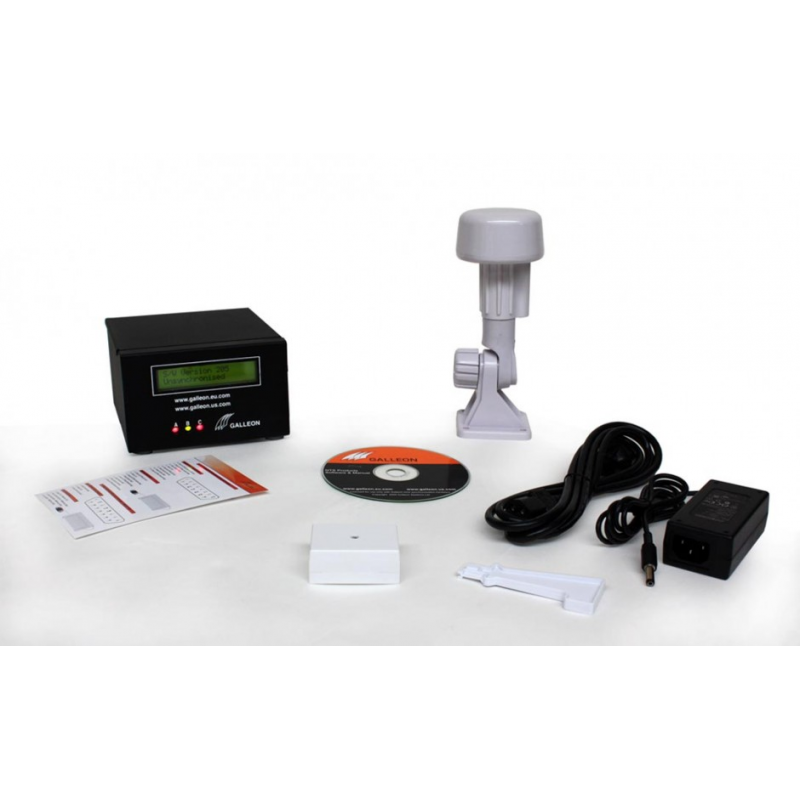

what's included with the standalone GPS server

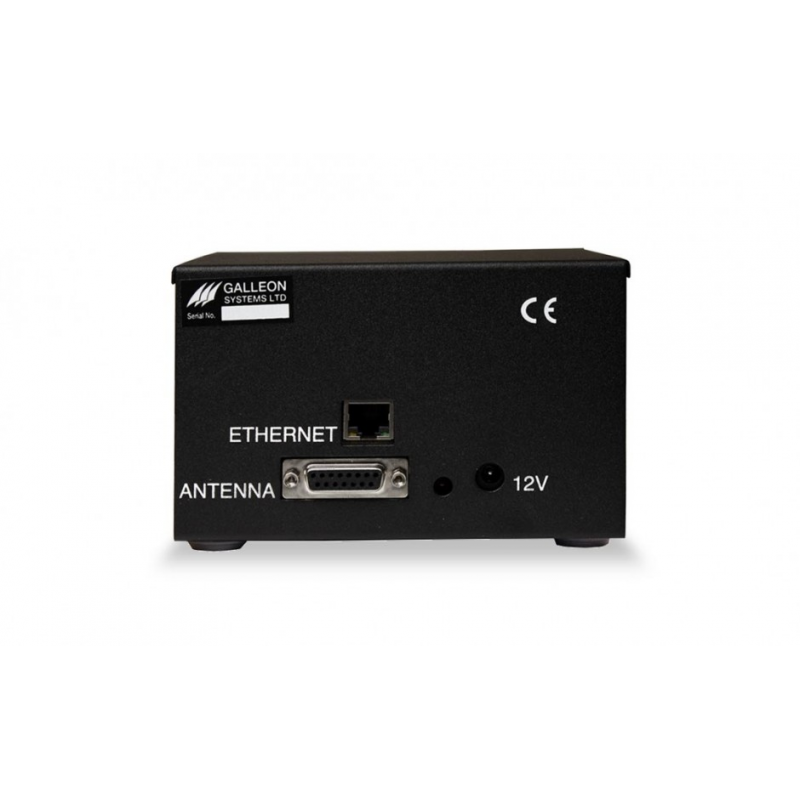

NTS-4000-S GPS Server back view

A standalone version of the NTS-4000-R rackmount units. The NTS-4000-S GPS Server is an entry level dedicated NTP server for TCP/IP networks, built using Galleon Systems proprietry operating system, provides a complete solution for synchronising the time across computer networks.

Standalone GPS Server

The NTS-4000-S Time Server series combines either an MSF (radio) or GPS receiver with an embedded solid state controller and is configured and managed via a network interface.

The IP address of the unit can be configured automatically using DHCP to assigning an IP address or a fixed IP address can be used. A display on the front of the unit shows run-time information for both the signal reception and time output.

The NTS-4000 series can handle more than 3,000 NTP requests per minute, making it the choice for providing accurate time information across your network.

Key Benefits

  • Ready-to-operate Stratum 1 NTP Time Server
  • Support for NTP and SNTP compatible clients
  • Handles > 3,000 ntp requests per minute
  • Solid state, upgradeable flash memory - no moving parts!
  • Front Panel display for easy Time and Signal Status
  • Syslog error reporting
  • Secure proprietary operating system for enhanced security
  • 6 years warranty

Product Specification for the NTS-4000-S GPS Server

Receiver: Active 12 channel GPS Antenna
Timing Accuracy: Network: ± 12 milliseconds, typical
GPS: <1>
NTP Time Requests: >3,000 requests per minute
Supported Networks: Can supply time to a single network
Power Consumption: 8 Watts
Dimensions (H × W × D): 45mm × 423mm × 163mm
Display: LC-display, 2 x 20 characters, with backlight
Operating System: Proprietry
Protocols (NTP & SNTP): NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network Interface: Single RJ-45 Network Connection 10/100 MBit
Power supply: 85 - 260V, 47 - 63Hz
Operating Temperature: 0-50°C / 32-122°F
Operating Humidity: Max. 85%

What's in the box

  • NTS-4000-S Unit
  • GPS Mushroom Antenna or MSF radio antenna
  • Instruction Manual
  • Power Lead
  • NTP Software CD
  • Junction Box (used to extend antenna cable - if necessary)
  • IDC Cable Tool (used to insert cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the NTS-4000-S GPS Server

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Antenna Cable (100 to 1,000 metre rolls available)
  • Additional Antenna Power Supply (Recommended from 150 metres onwards)
  • Lightning Arrestor
  • Additional Software Licenses (available from 5 to 300+ clients)
