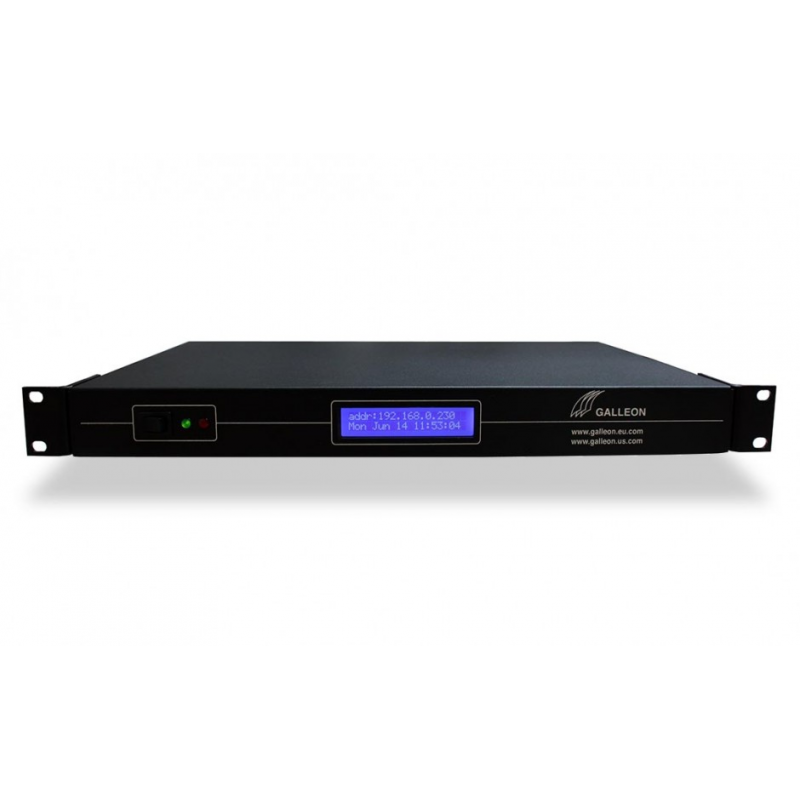

Dual Ethernet NTP Server front

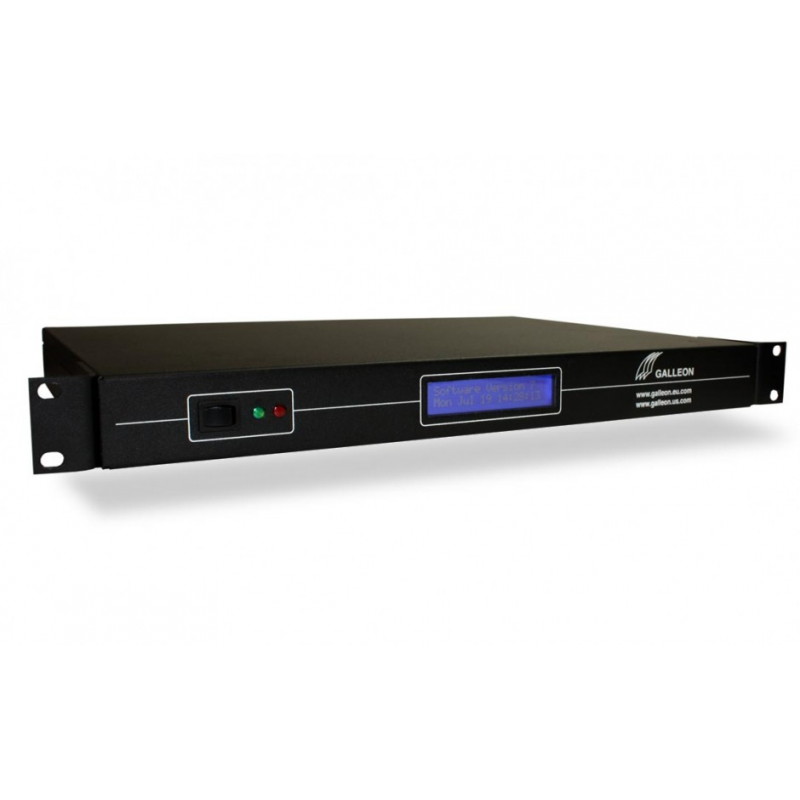

Dual Ethernet NTP Server side

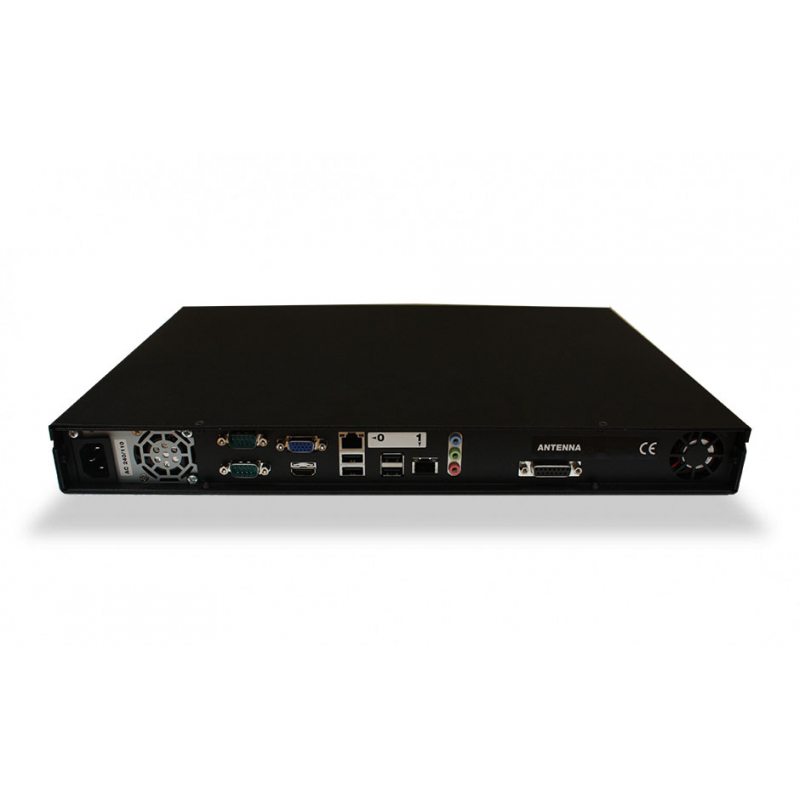

Dual Ethernet NTP Server back

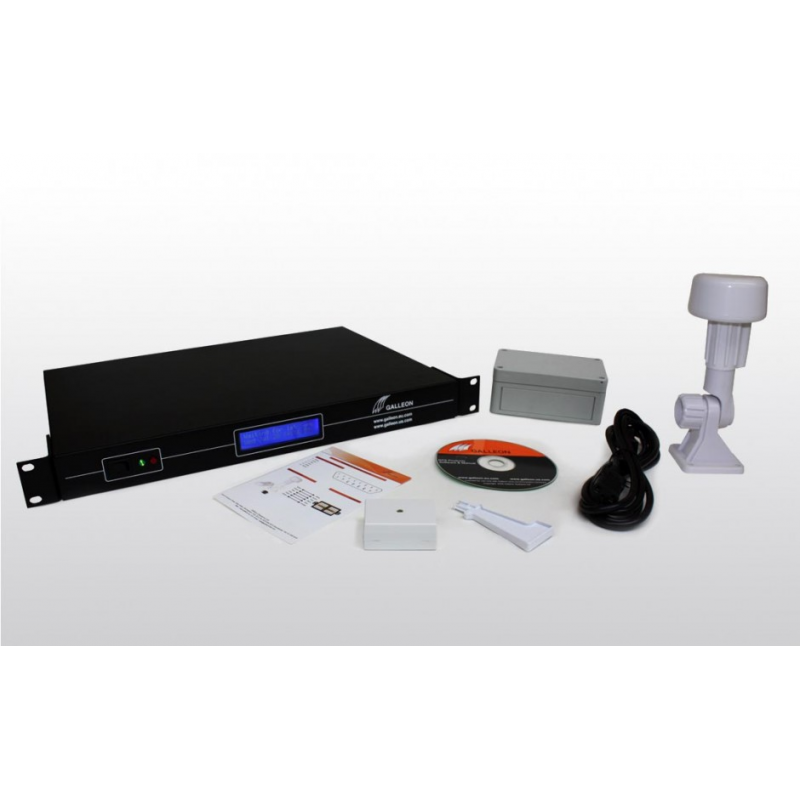

Dual Ethernet NTP Server box

Dual ethernet NTP server

NTS-6002-GPS-MSF dual ethernet NTP server is a highly accurate network timing device. The unit synchronises to connected GPS and radio antennas (stongest signal), always providing a secure time server source behind your firewall.


Dual Ethernet NTP Server with two independent time sources

The NTS-6002-GPS-MSF dual ethernet NTP server is an update to our best selling NTS-6001-GPS-MSF Unit. The hardware has been upgraded to include a quad core CPU and reduce the power consumption of the unit.

NTS-6002-GPS-MSF Network Time Server combines a GPS receiver and an MSF radio time signal receiver with an embedded Linux solid state computer and straight forward configuration and management via a web interface. This combination of GPS and radio time sources means that the unit will never be out of synchronisation as it will always take time from the strongest time source.

The dual ethernet NTP server unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This Dual  NTP server incorporates a GPS and radio-controlled computer clock. The GPS remote antenna tracks up to 12 satellites for increased precision and is fully weather proof (IP65) as it must be installed externally. The radio antenna should ideally also be mounted externally, but can also be mounted internally. The antenna can be mounted up to 1,000m (3,000ft) from the unit using an appropriate (optional) antenna extension kit.

The NTS-6002-GPS-MSF has a backlit LCD display to help show run-time information for both the GPS and MSF subsystems, the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP v4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is via a web interface. The IP address of the unit can be configured by using DHCP to assign an IP address automatically or a fixed IP address can be used.

The NTS-6002-GPS-MSF has dual Ethernet ports enabling it to serve time to 2 independant networks and can handle more than 500,000 NTP requests per minute per network, making it the first choice for providing accurate time information to large networks with thousands of clients!

Key Benefits

  • Ready-to-operate Secure Stratum 1 NTP dual ethernet NTP server
  • Industry leading 6 year warranty
  • Includes GPS active antenna + MSF radio time signal receiver
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Supports both IPv4 and IPv6 networks
  • Configured across network via a secure browser interface by HTTPS (RFC2616) and Secure Shell (SSH)
  • Dual RJ-45 Ethernet interfaces 10/100/1000 Mbit
  • Supports NIC Teaming for fail over and redundancy
  • Can handle more than 500,000 NTP requests per minute per port, ideal for large networks
  • MD5/SHA authentication for advanced security
  • Able to Peer with other NTP time servers for enhanced synchronization security
  • Solid State Flash memory enables software upgrades and eliminates 'disk failure'
  • Front Panel display for Time and Satellite and Radio time Status
  • SNTP and NTP protocol support
  • Syslog error reporting

Product Specification for the NTS-6002-GPS-MSF Dual Ethernet NTP Server

Receiver: 1) Primary receiver Active Antenna GPS 12 channel.
2) Secondary time receiver for the MSF radio time signal (WWVB, DCF also available)
Timing Accuracy:

Network: ± 8 milliseconds, typical
GPS: <1 microseconds, relative to UTC
MSF: <1>

NTP Time Requests: >500,000 requests per minute
Supported Networks: Can supply time to 2 separate networks
Power Consumption: 27 Watts
Housing: Standard 19" rackmount (1U)
Dimensions (H × W × D): 45mm × 425mm × 309mm
Display: LCD Panel, 2 x 20 characters, with backlight
Operating System: Linux
Protocols (NTP & SNTP): NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network Interface: Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections
Power supply: 85 - 260V, 47 - 63Hz
Operating Temperature: 0-50°C / 32-122°F
Operating Humidity: Max. 85%

What's in the box

  • NTS-6002-GPS-MSF dual ethernet NTP server Unit
  • GPS Mushroom Antenna (with a 10m/8 Core Cable - not shown)
  • MSF Radio Antenna (with a 5m/4 Core Cable - not shown)
  • Power Lead
  • NTP Software & Instruction Manual on a USB Stick
  • Junction Box (used to extend antenna cable - if necessary)
  • IDC Cable Tool (used to insert cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the NTS-6002 Dual NTP Server:

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Antenna Cable (100 to 1,000 metre rolls available)
  • Additional Antenna Power Supply (Recommended from 150 metres onwards)
  • Lightning Arrestor
  • Additional Software Licenses (available from 5 to 300+ clients)
