User friendly NTP time server

NTS-4000-S MSF NTP Time Server [NTS-6001-GPS]

Designed by synchronisation specialists, the Galleon NTS-6001-GPS meets the needs of medium to large multinational companies. Synchronising busy networks and offering simple navigation for the user, the 6001 NTP time server provides accurate readings with an efficient performance. By providing such cost effective solutions for network time, Galleon Systems has developed an impressive customer base with organisations such as Ford, Vodafone and Buckingham Palace trusting us with their synchronisation.

Contact us now for more information.


NTP time server

Combining support from a GPS clock with an embedded Linux solid state computer for redundancy, the Galleon NTS-6001-GPS is easily installed and operated. Issued with lifetime technical support and offering enhanced security with the ability to peer connect with other NTP time servers. Galleon provides a comprehensive and easy solution for secure time networks.

Benefits

  • Consistent and reliable timing
  • Quick and user-friendly set-up process
  • At 27 Watts, unit stays cool maintaining efficiency
  • Upgrades through Flash Memory and Web Browser
  • Space-saving unit, 1U high and rack mounted

Product Specification for NTP Time Server

Protocols NTP & SNTP NTP v2 (RFC 1119) NTP v3 (RFC1305) NTP v4 (RFC 2131)  SNTP v3 (RFC 1769) SNTP v4 (RFC 2030)
Configuration

Across a Network via Secure Browser

Configuring https (RFC2616), Secure Shell (SSH)
Technical Standard NEMA 0183 V.2 Compliant
SNMP Simple Network Management Protocol (Can Be Switched OFF)
Network Interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections
MTBF Estimated 45,000 hrs
Display

LCD with Backlight

Operating System Linux Based

Operating Temperatures

0-50°C (32-122°F)
Heat Dissipation 150 BTU Per hour
Humidity Max. 85% Non-Condensing
Mount Rack
Function Stratum 1 Time Server, Secure Shell (SSH) and HTTPS
Network Accuracy Network: 1-10 Milliseconds, Typical GPS: <1 Microseconds, Relative to UTC
Security MD5 Authentication
NTP Time Requests Up To 4700 Per Sec
Power Supply Universal 85-260V, 47-63Hz
Power Consumption 27
Watts Dimensions (mm) Packed and Unpacked Unpacked 1U: (H) 45 (W) 425 (D) 309, Packed Up: (H) 160 (W) 620 (D) 630
Properties Powder Coated Steel
Weight with Antenna Packed and Unpacked 7.6kg, 4.8kg
Source Satellite
External Active 12 Channel GPS

Galleon Systems

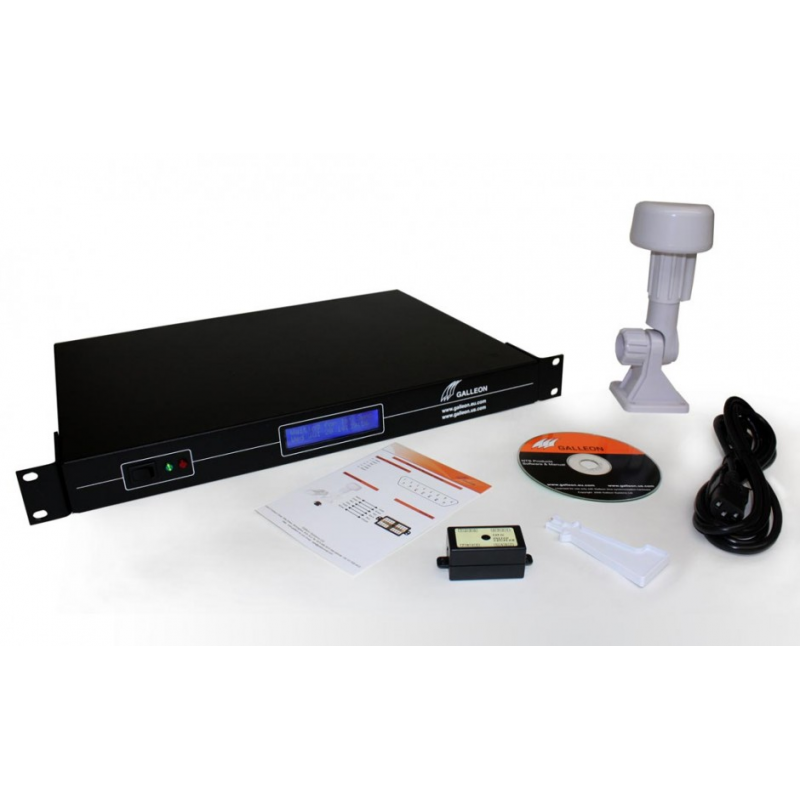

The NTP time server includes:

  1. NTS-6001-GPS Unit
  2. Manual
  3. Power Lead
  4. NTP Software
  5. Junction Box
  6. IDC Cable Tool
  7. GPS Mushroom Antenna with a 10m/8 Core Cable

Extras:

  • Lightening arrestor
  • Gold and premium support
  • Digital wall clock - ethernet powered
  • Secondary MSF time source available
  • Antenna cable - available from 100 to 1,000 metre rolls
  • Additional power supply - recommended from 550 metres onwards
  • TimeSync SNTP client software - User licenses available from 5 to 300+
  • TimeSync NTP Uni-Cast software - User licenses available from 5 to 300+

Assurances:

  • 6-year warranty
  • GPS antenna sealed to IP65
  • FCC certified
  • CE certified
