Rackmount GPS NTP Server - NTS-4000-R-GPS

NTS-4000 GPS NTP Server [NTS-4000-R-GPS]

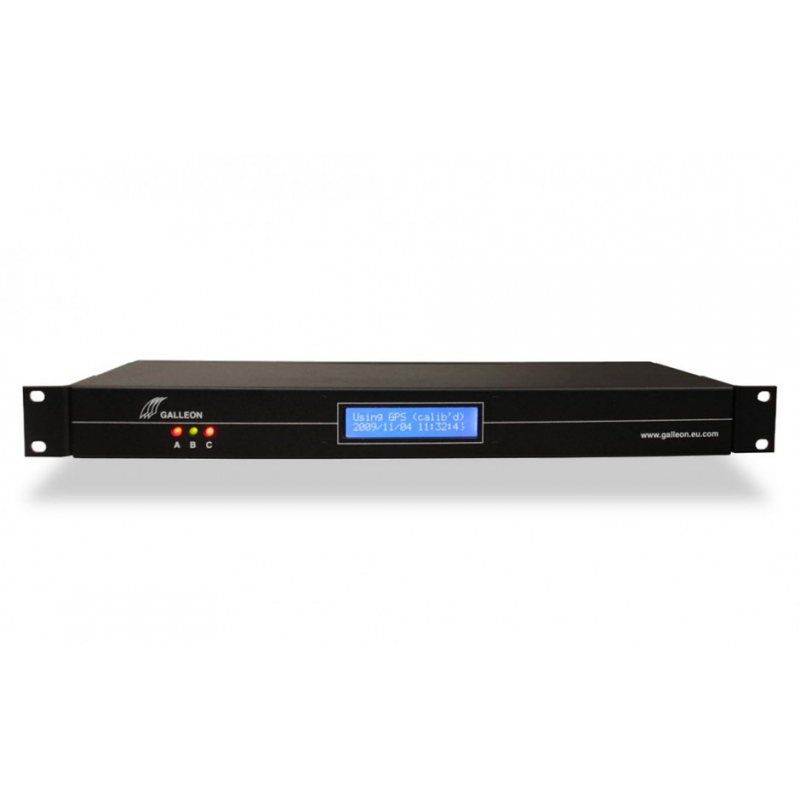

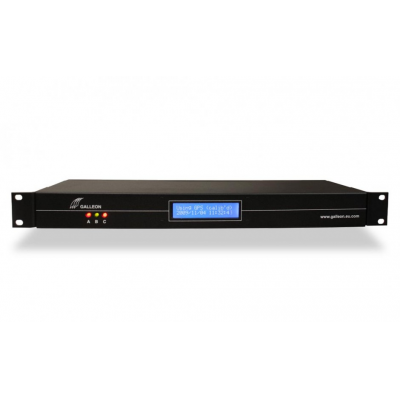

GPS NTP server

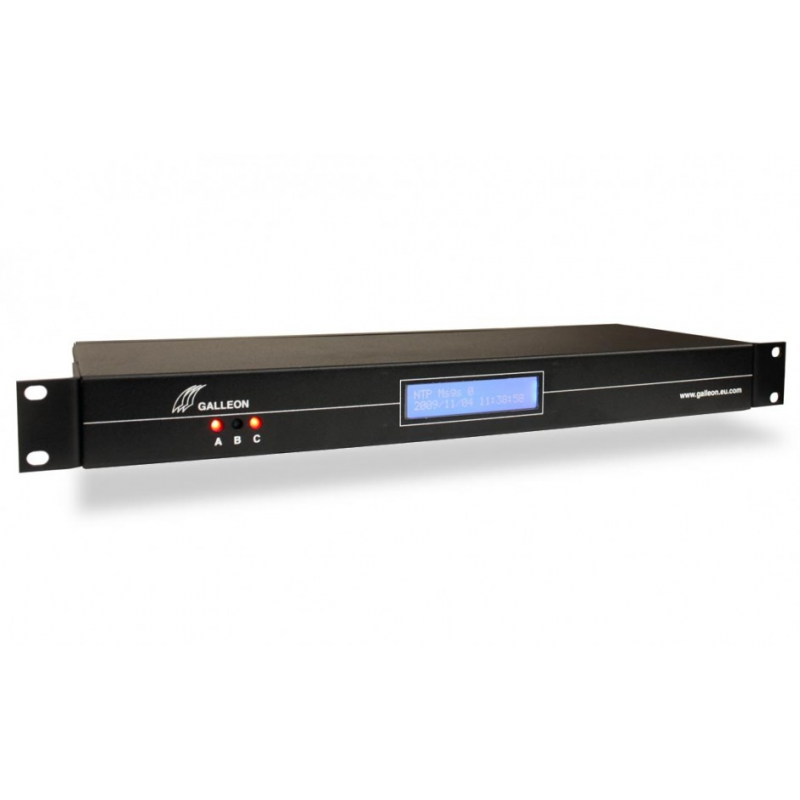

GPS NTP server view of the unit from side on

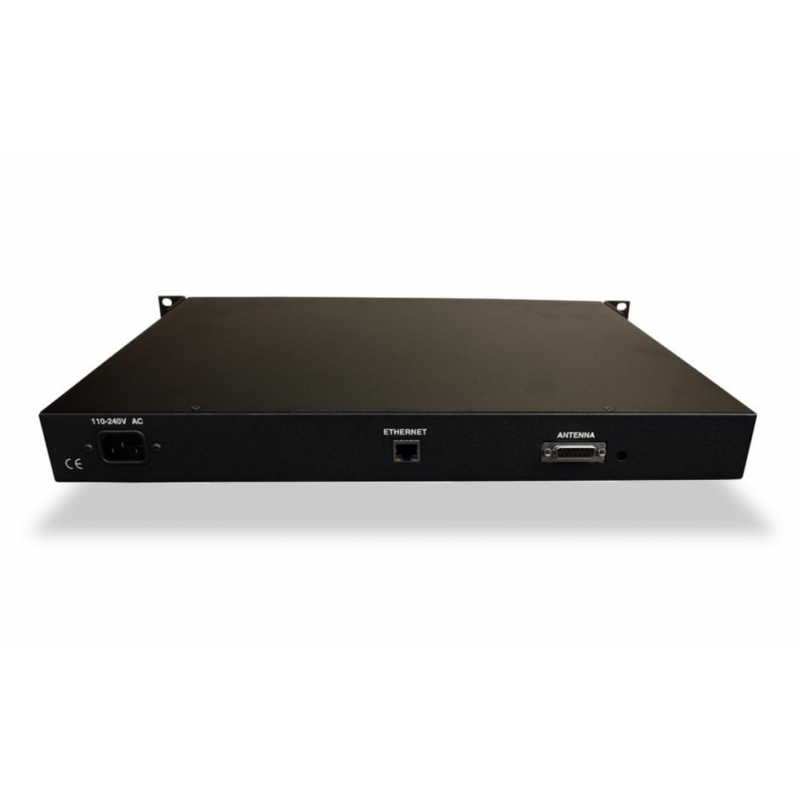

GPS NTP server view of the back of the unit

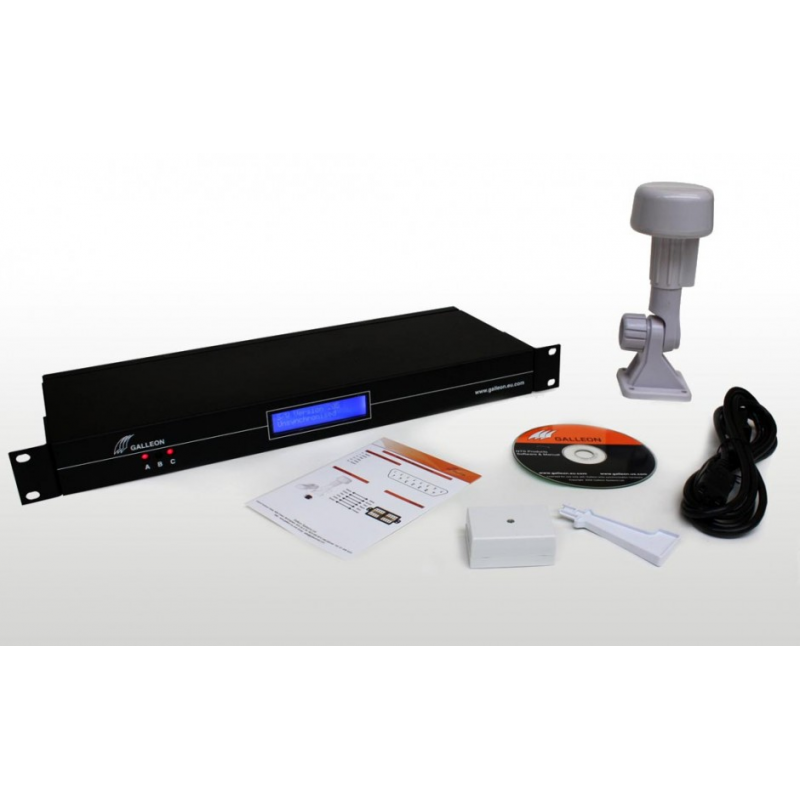

GPS NTP server what is shipped with the unit

The NTS-4000-R-GPS GPS NTP Time Server combines a GPS receiver with an embedded solid state computer running Galleon Systems' proprietry, secure operating system.


A complete solution for GPS NTP network time synchronisation

The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack (astandalone version of the NTS-4000-GPS is also available). This GPS NTP network timing solution incorporates a GPS computer clock and a highly accurate remote GPS antenna that tracks up to 12 satellites for greater precision. The antenna is fully weather proof (IP65) as it must be installed externally, preferably on a roof top with a 360° view of the sky, it can be positioned up to 200m (600 ft) away as standard, or up to 1,000m (3,000ft) using an optional antenna extension kit.

The GPS NTP server has as an LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a network interface. The IP address of the unit can be configured by using DHCP to assigning an IP address automatically or a fixed IP address can be used.

Key Benefits for NTS-4000-GPS NTP Server

  • Ready-to-operate Secure Stratum 1 NTP Time Server
  • 6 year warranty
  • Includes GPS active antenna
  • Support for NTP and SNTP compatible clients
  • Can handle more than 3,000 NTP requests per minute, ideal for small to medium networks
  • Easily configured via a windows configuration utility
  • Solid State Flash memory enables software upgrades and eliminates 'disk failure'
  • RJ-45 Ethernet interfaces 10/100 MBit
  • Front Panel display for Time and Satellite Status
  • Syslog error reporting

Product Specification for the NTS-4000-R-GPS NTP server

Receiver: Active 12 channel GPS Antenna
Timing Accuracy: Network: ± 12 milliseconds, typical
GPS: <1>
NTP Time Requests: >3,000 requests per minute
Supported Networks: Can supply time to a single network
Power Consumption: 8 Watts
Housing: Standard 19" rackmount (1U)
Dimensions (H × W × D): 45mm × 423mm × 163mm
Display: LC-display, 2 x 20 characters, with backlight
Operating System: Proprietry
Protocols: SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network Interface: Single RJ-45 Network Connection 10/100 MBit
Power supply: 85 - 260V, 47 - 63Hz
Operating Temperature: 0-50°C / 32-122°F
Operating Humidity: Max. 85%

What's in the box

  • NTS-4000-R-GPS Unit
  • GPS Mushroom Antenna (with a 10m/8 Core Cable - not shown)
  • Instruction Manual
  • Power Lead
  • GPS NTP Software CD
  • Junction Box (used to extend antenna cable - if necessary)
  • IDC Cable Tool (used to insert cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the NTS-4000-R-GPS GPS NTP Time Server:

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Secondary MSF Antenna
  • Antenna Cable (100 to 1,000 metre rolls available)
  • Additional Antenna Power Supply (Recommended from 150 metres onwards)
  • Lightning Arrestor
  • Additional Software Licenses (available from 5 to 300+ clients)
