Radio Controlled Time Receiver [AC-100-MSF]

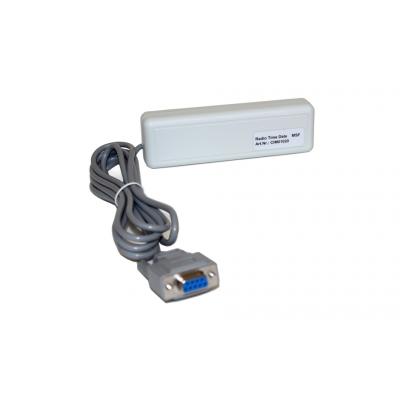

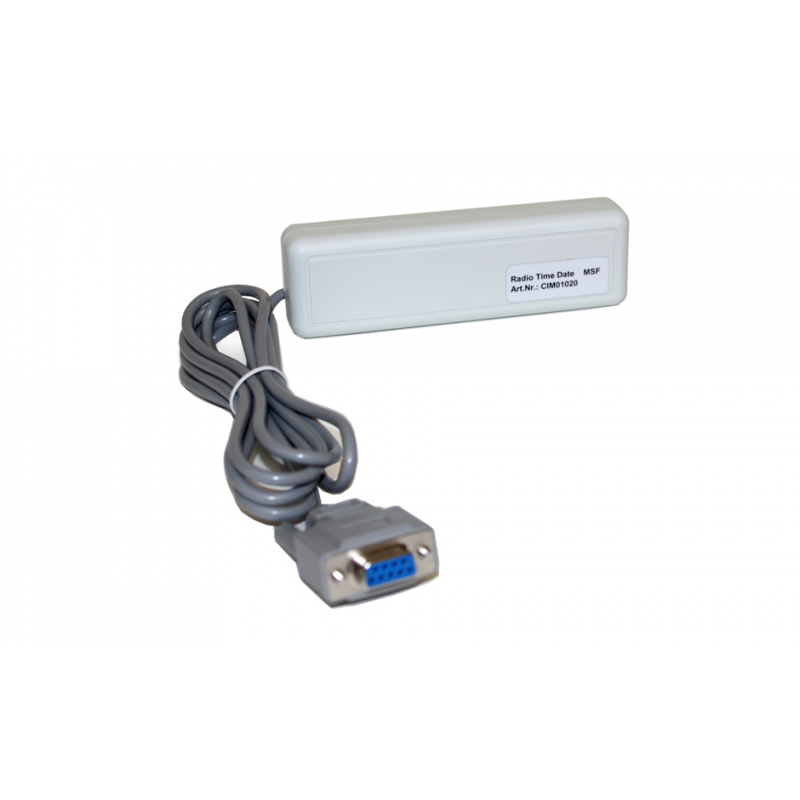

Radio controlled time receiver side view

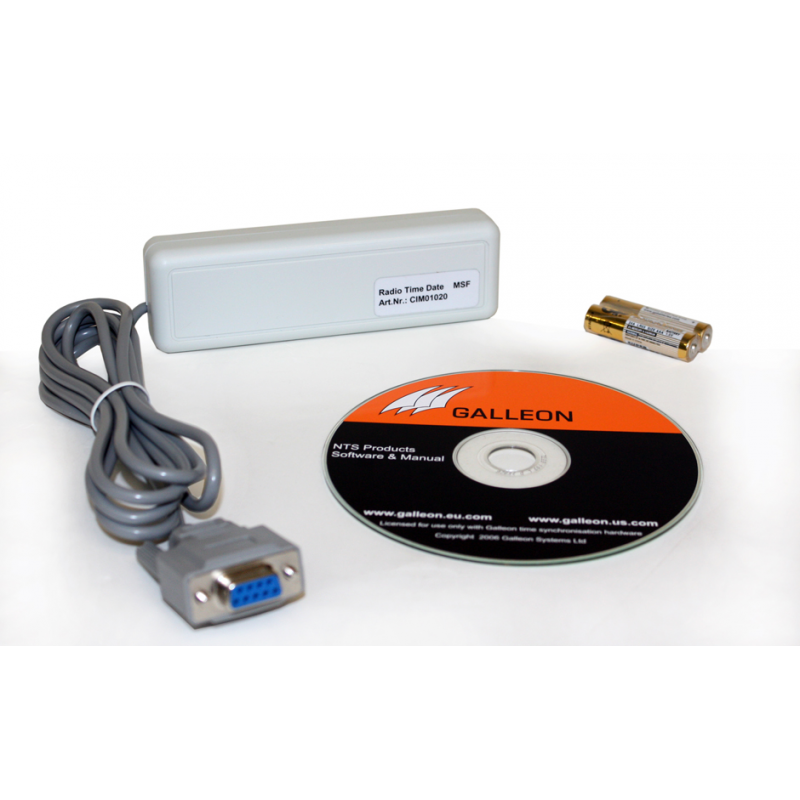

View of radio controlled time receiver with software

Radio controlled time receiver

A simple time and date radio controlled time receiver that obtains time for the MSF Atomic Clock time signal to automatically update your system clock.

The unit simply plugs into a 9 pin D type serial port on the back of your computer. Installation takes only minutes using the software supplied and time and date information are available immediately after turning on your PC.

Please note: We have limited supplies of this product as this product was developed for older PCs.


Key Benefits

  • Easy to install
  • Simple and robust
  • Simple to use Software provided
  • One year warranty

Technical specification for AC-100-MSF Radio Controlled Time Receiver

Power supply 3V (2 batteries LR3: 2 x 1,5V)
Battery life time About 2 years
Interface PC interface
Reception sensitivity <50uV>
Start of the time signal reception a. Automatically
b. Command from the PC
Connection and data transfer RS232 Serial interface at 300bps
Operating temperature range 0°C – 50°C
Connector cable 1.5m; 9-pole Sub-D plug

What's in the box

  • AC-100-MSF unit
  • 2 batteries (LR3/AAA)
  • Time Sync software disc
