Radio Time Receiver [AC-300-MSF]

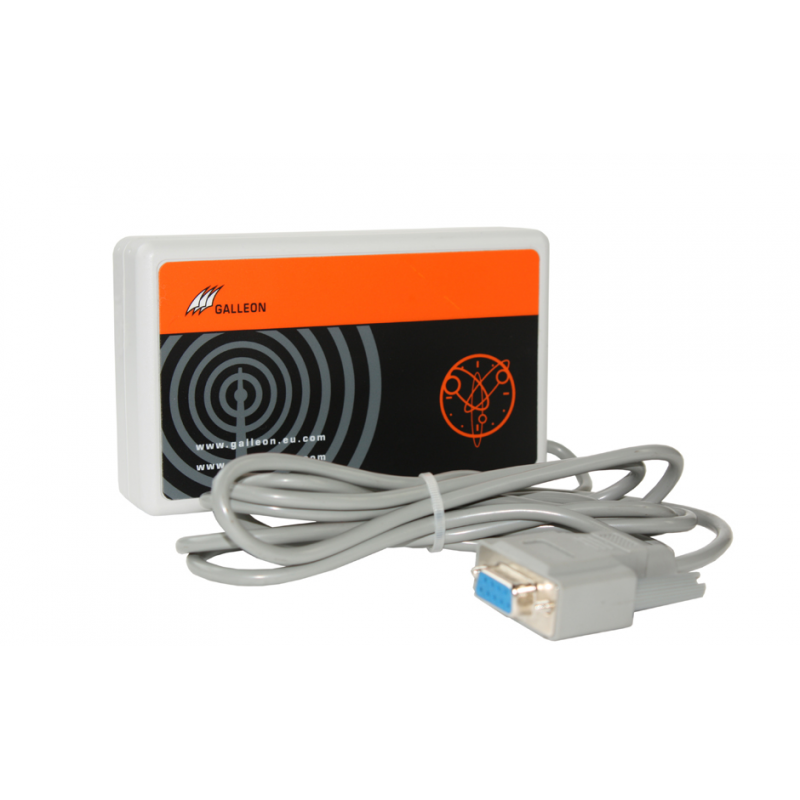

front view of radio time receiver with RS232 interface

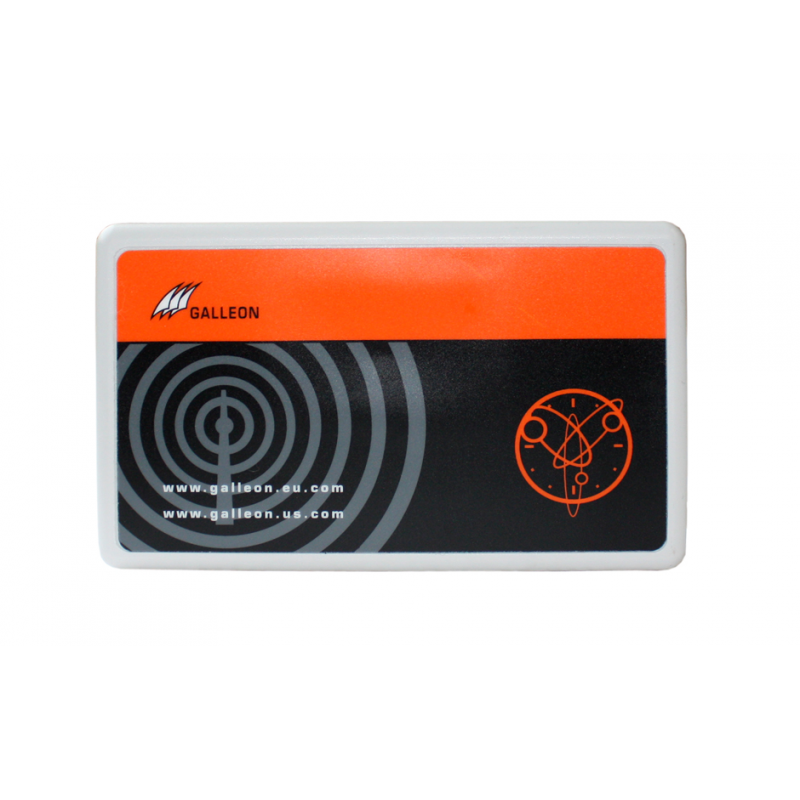

View from the front of the radio time receiver

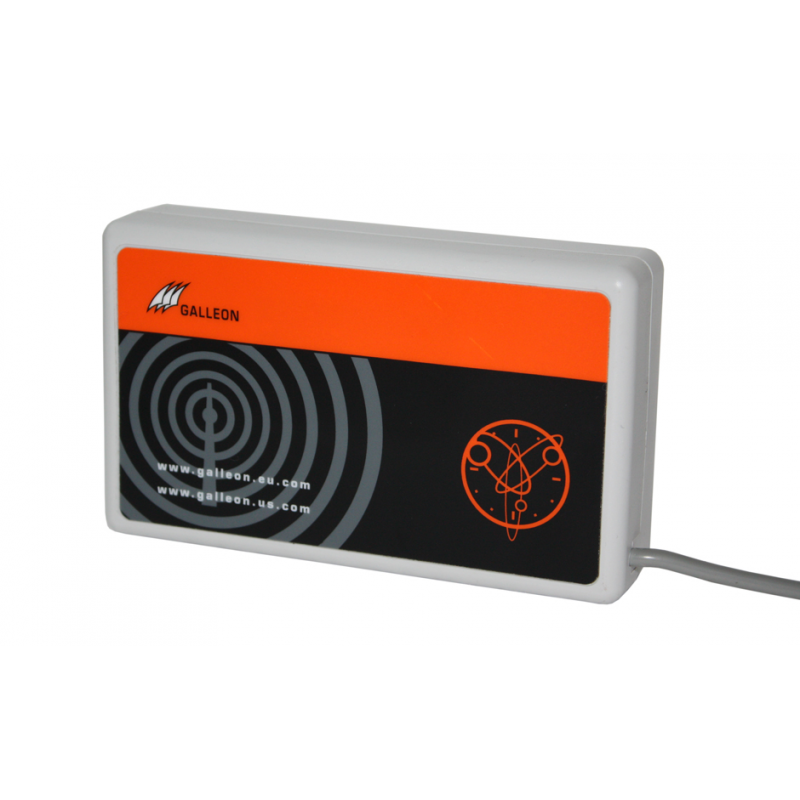

View from the side of the radio time receiver
Radio time receiver with NTP software

Entry level radio time receiver

The AC-300-MSF radio time receiver from Galleon Systems has a serial interface and is supplied with software to synchronise the internal time and date of a single connected computer.

The AC-300-MSF radio time receiver features an RS232 serial interface and works with NTP software to automatically update the time and date on your computer to precise atomic time immediately after starting up the computer.

This radio controlled clock for PC may be desk/table or wall mounted.


Key Benefits

  • Low cost
  • External MSF antenna
  • Accuracy ±500ms
  • Mains powered
  • One year warranty

Technical specification for AC-300-MSF Radio Time Receiver

Power supply 3V (2 batteries LR3: 2 x 1,5V)
Battery life time About 2 years
Interface PC interface
Reception sensitivity <50uV>
Start of the time signal synchronisation a. Automatically
b. Command from the PC
Connection and data transfer RS232 Serial interface at 300bps
Operating temperature range 0°C – 50°C
Connector cable 1.5m; 9-pole Sub-D plug
