MSF Radio Clock

MSF Radio Clock [AC-700-MSF]

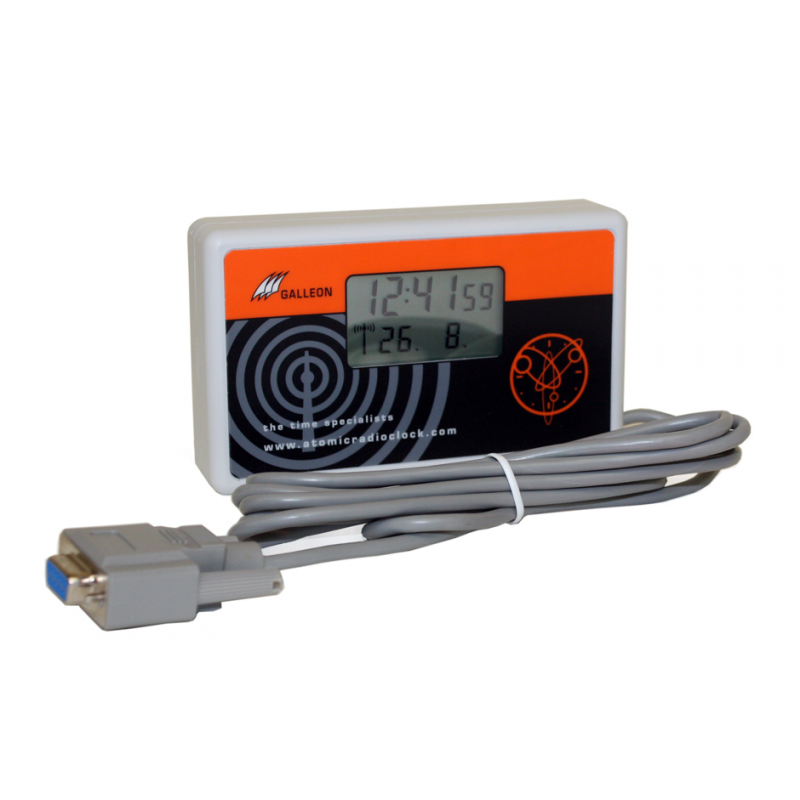

Side view of MSF radio clock

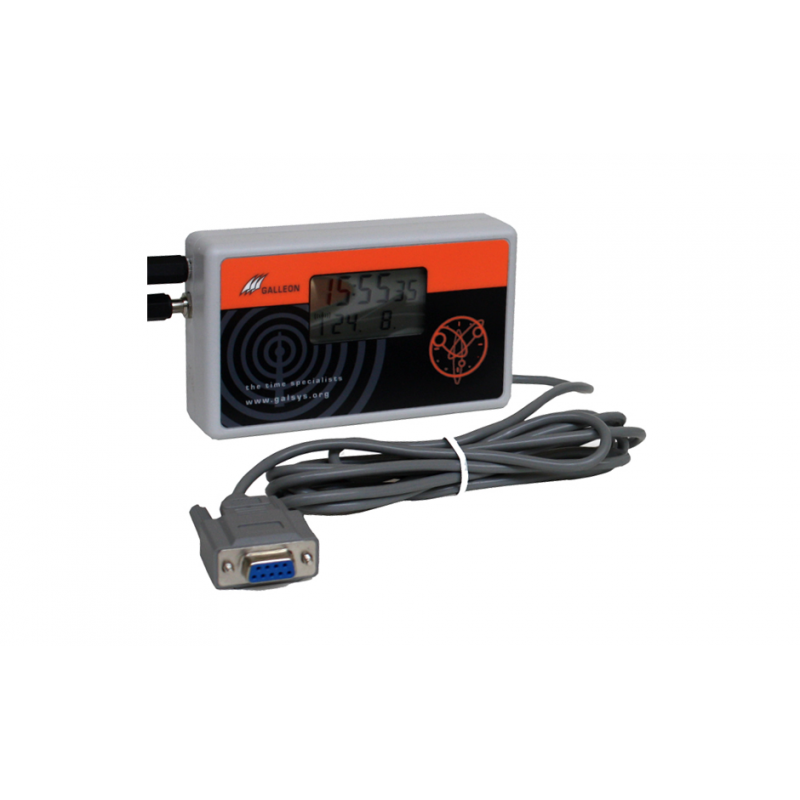

Side view of MSF radio clock with serial interface

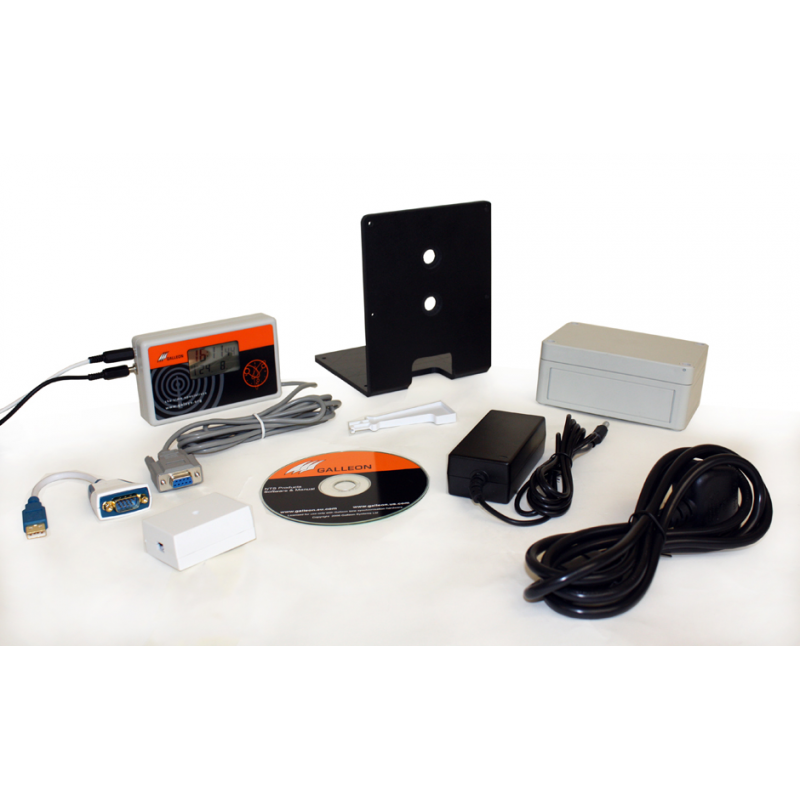

What is included with the MSF radio clock

MSF Radio Clock with Remote Antenna (IP65)

The MSF radio clock is an advanced radio time code receiver. The antenna is rated to IP65 and can be wall mounted indoors or outdoors up to 100m from the host computer. The unit is specifically designed to provide good signal reception in areas with a poor radio signal.

TimeSync NTP software can be used to turn any Windows 98, NT or 2000 machine into a stratum 1 NTP time server resource for your network. It can be used to synchronise the time on clients on a TCP/IP network to within milliseconds of the correct time.

Key Benefits

  • Provides accurate timing for any number of network time clients
  • Reliable, accurate and secure timing resource, inside your firewall
  • Ideal for transaction processing, time & attendance and access control applications

Technical specification for AC-700 MSF Radio Clock

Power supply Mains
Antenna Remote (up to 100m)
Interface PC interface
Reception sensitivity <50uV>
Start of the time signal synchronisation a. Automatically
b. Command from the PC
Connection and data transfer RS232 Serial interface at 300bps
Operating temperature range 0°C – 50°C
Connector cable 1.5m; 9-pole Sub-D plug

What's in the box

  • AC-700-MSF clock + power supply
  • MSF Antenna
  • Instruction Manual
  • NTP Software CD
  • Junction Box (to extend antenna cable - if necessary)
  • IDC Cable Tool (to insert extension cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the AC-700-MSF:

  • Gold and Premium Support Packages
  • RS232 to USB convertor
  • Digital Wall Clocks
  • Antenna Cable (100 to 1,000 metre rolls available)
  • Additional Power Supply (Recommended from 150 metres onwards)
  • TimeSynch SNTP Client Software (User Licenses available from 5 to 300+)
  • TimeSynch NTP Uni-Cast Software (User Licenses available from 5 to 300+)
