Bestselling Galleon NTP time server

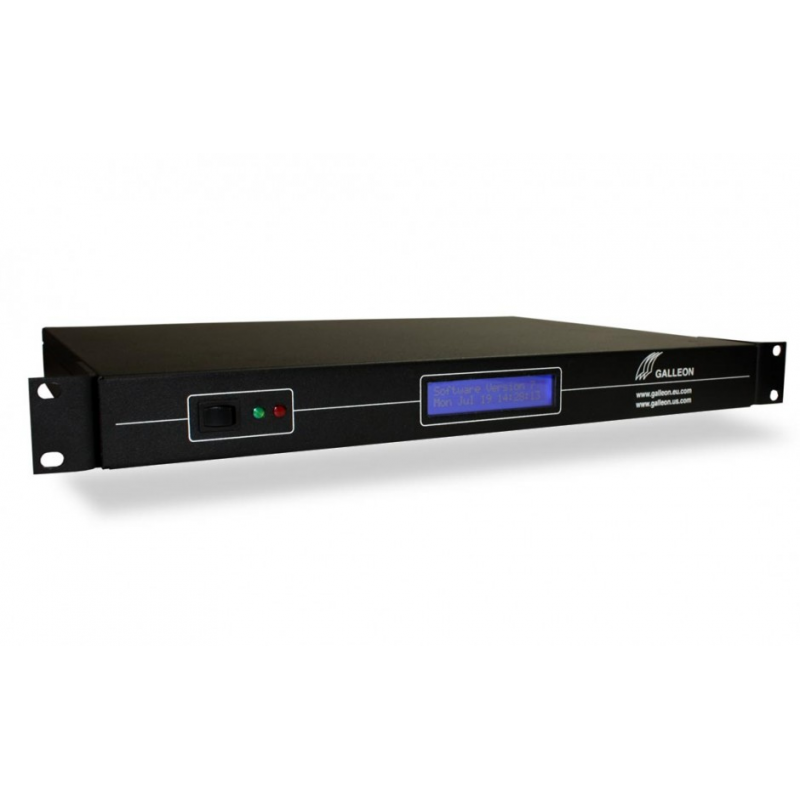

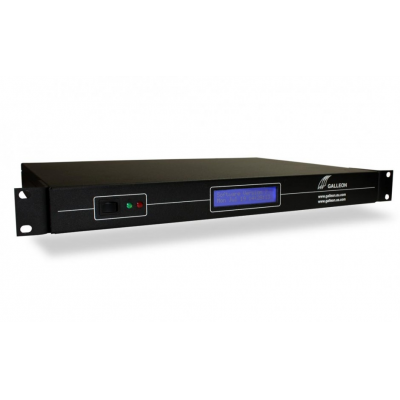

Network time server [NTS-6001-GPS]

The NTS-6001-GPS is the bestselling Galleon NTP time server. The network time server combines a GPS receiver and a Stratum 1 server. The server uses a Linux based operating system, which operates from inside the perimeter of your virtual firewall. This ensures your cyber security stays intact.

Contact us now for more information.


The unit connects to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This GPS NTP server incorporates a GPS computer clock and a GPS antenna that tracks up to 12 satellites for increased precision.

The antenna is fully weatherproof (IP65) as it must be installed externally, preferably on a roof top with a 360° view of the sky. It can be positioned up to 200m (600 ft) away as standard, or up to 1,000m (3,000ft) using an optional antenna extension kit.

Galleon NTP time server

Benefits

  • Secure stratum 1 NTP time server
  • Tracks 12 satellites for increased precision
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Supports both TCP/IP networks
  • Two RJ-45 ethernet interfaces 10/100/1000 Mbit, so can provide time for two independent networks
  • Configured across networks via pre-installed software, TimeSync
  • Can handle more than 4,000 NTP requests per second, per port, ideal for large networks
  • MD5 authentication for advanced security
  • Able to peer with other NTP time servers for enhanced synchronisation security
  • Front panel display for time and satellite time status
  • SNTP and NTP protocol support
  • Syslog error reporting

Features

Product specifications for the Galleon NTP time server

Receiver: Active 12 channel GPS antenna
Timing Accuracy: Network: ± 10 milliseconds, typical
GPS: <1>
NTP Time Requests: >250,000 requests per minute
Supported Networks: Can supply time to 2 separate networks
Power Consumption: 27 Watts
Housing: Standard 19" rackmount (1U)
Dimensions (H × W × D): 45mm × 425mm × 309mm
Display: LC-display, 2 x 20 characters, with backlight
Operating System: Linux
Protocols (NTP & SNTP): NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network Interface:

Dual RJ-45 Network Connection 10/100/1000 MBit

Power supply:

85 - 260V, 47 - 63Hz

Operating Temperature:

0-50°C / 32-122°F

Operating Humidity:

Max. 85%

Galleon Systems

Galleon Systems has over 20 years of international experience in providing network time servers, time synchronisation, and network clocks. Galleon Systems’ products are used by Buckingham Palace, 3M, Rolls-Royce, Vodafone, Tesco, Ford, Bank of England, Sharp, Kellogg’s, Shell, and many more.

Assurances:

  • Six-year warranty
  • GPS antenna sealed to IP65
  • FCC certified
  • CE certified
  • Lifetime support
