Radio and GPS NTP network time server

Dual NTP time server [NTS-6001-GPS-MSF]

GPS NTP network time server, receiver and TimeSync software

Galleon Systems’ GPS NTP network time server can receive time signals from both GPS satellites and radio towers. The server uses a Linux operating system and a simple configuration and management web interface, so you can easily synchronise and provide accurate time to various devices in your network.

The combination of using GPS and radio time sources ensures that your business will always have accurate time.

Contact us now for more information.

Contact Galleon Systems Request a Quote Request Documentation

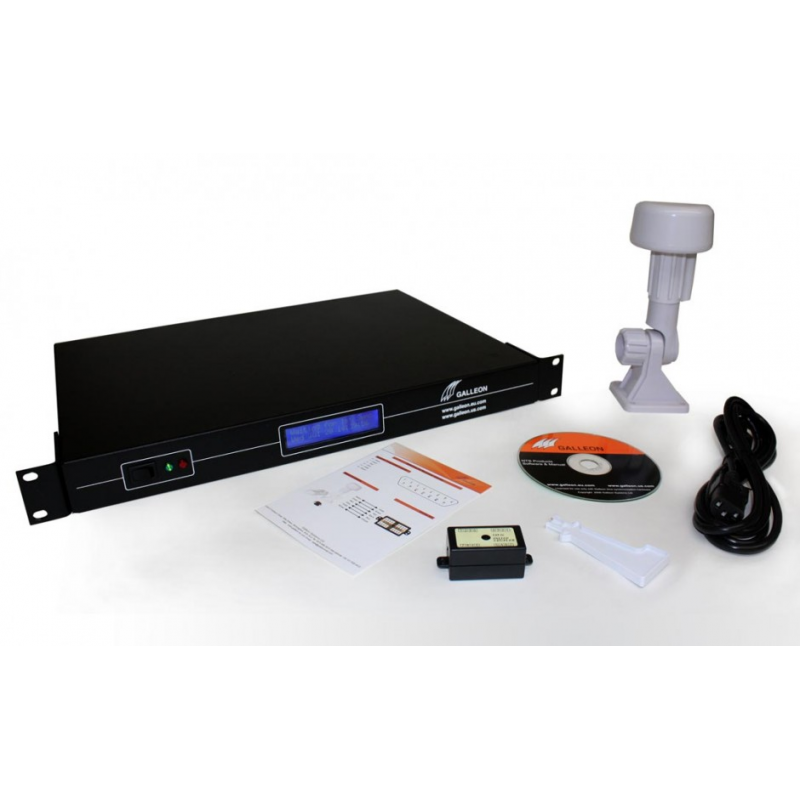

GPS NTP network time server

The time server receives a time signal from the following:

GPS antenna – tracks 12 satellites, should be located outside with 360° view of the sky and is weatherproof to IP65 industry standards
MSF radio time signal receiver – should ideally be located outdoors but can be positioned indoors close to the windows

Benefits of a GPS NTP network time server

Secure stratum 1 NTP time server
Includes GPS antenna and a MSF radio time signal receiver
Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
Configured across your network via a secure browser interface over https (RFC2616)

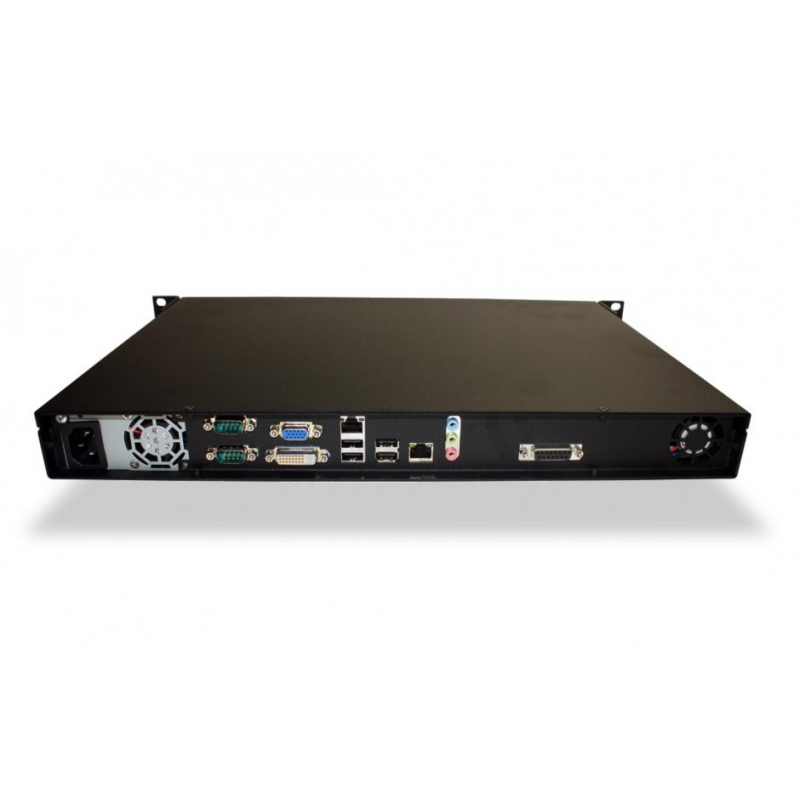

Dual RJ-45 ethernet interfaces 10/100/1000 Mbit, enabling server to synchronise time across two independent networks
Can handle more than 250,000 NTP requests per minute per port, ideal for large networks
MD5 authentication for advanced security
Able to peer with other NTP time servers for enhanced synchronisation security
Solid State Flash memory enables software upgrades and eliminates 'disk failure'

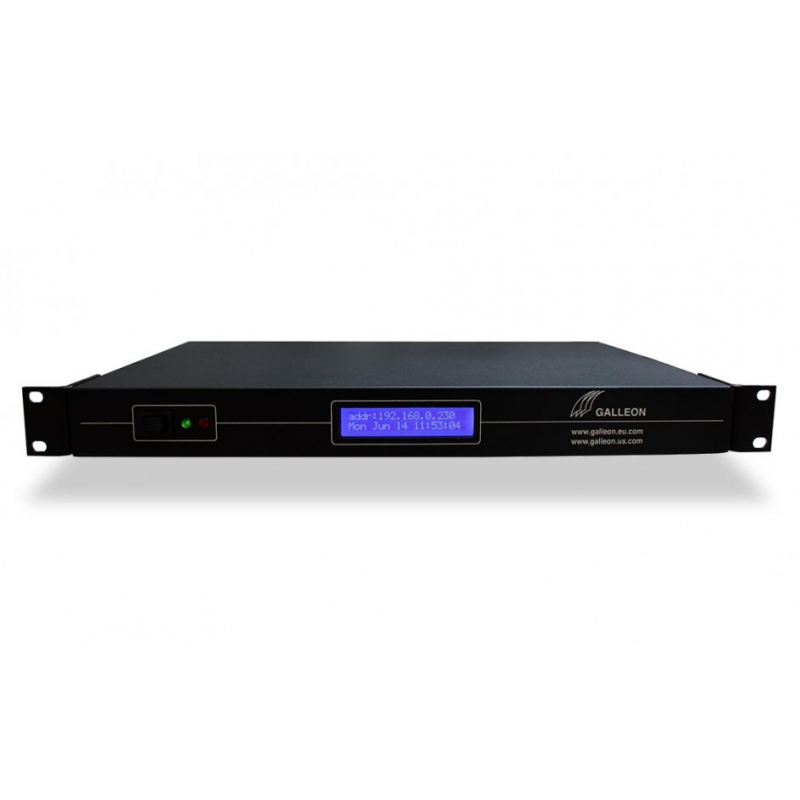

Front panel display for time, and satellite and radio time status
SNTP and NTP protocol support
Syslog error reporting

Galleon Systems

Galleon Systems has over 20 years of international experience in providing network time servers, time synchronisation, and network clocks. Galleon Systems’ products are used by Buckingham Palace, 3M, Rolls-Royce, Vodafone, Tesco, Ford, Bank of England, Sharp, Kellogg’s, Shell, and many more.

Galleon System offers:

Six-year warranty
Lifetime support
CE certificate
FCC certificate
