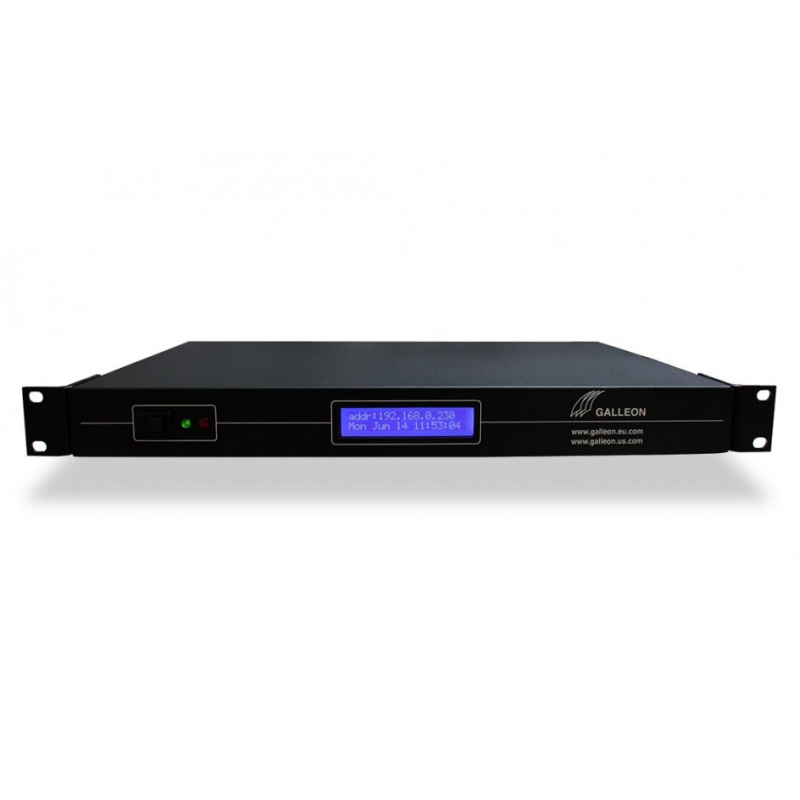

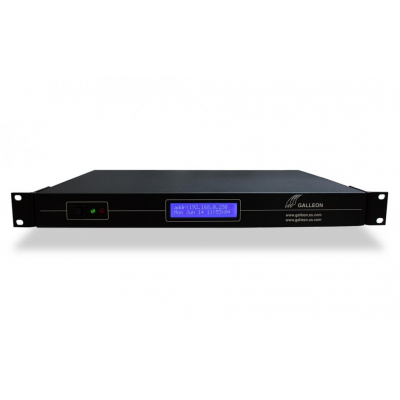

ethernet time synchronization [NTS-6002-GPS-MSF & NTS-8000-GPS-MSF]

Galleon ethernet time synchronization

Galleon Systems uses ethernet time synchronization to produce accurate time. The NTP time servers receive accurate time from both a GPS and radio source, ensuring that the time sent to your computers and clocks is reliable and exact.

Accurate and reliable time is essential for a wide range of businesses and applications, including offices, banks, and schools.

Contact Galleon Systems for more information on NTP time servers.


What is ethernet time synchronization?

NTP time servers can receive accurate time from a GPS (satellite) and MSF (radio) source. This makes them reliable, as they receive accurate time from more than one source.



To receive accurate time, place your radio antenna either inside or outside and your GPS antenna outside. Your GPS antenna can then pick up the time signal from 12 satellites, while your radio antenna receives time from the nearest radio tower.

An additional extension kit can be provided, which enables you to have a distance of 1000m between the antennas and server. This means you can place the antenna in the most convenient location.

The NTP time server connects to your internal network via ethernet so that it can send the most reliable and accurate time possible to your clocks and computers.

This makes NTP time servers ideal for:

  • Offices
  • Banks
  • Hospitals
  • Transport hubs
  • Factories
  • Schools
  • Warehouses

The ethernet time synchronization tools available

Galleon Systems has worked with major companies to ensure they receive accurate time, including Vodafone and Ford.

There are two models of NTP time server on offer:

  • NTS-6002 – Uses a Linux operating system and supplies two networks
  • NTS-8000 – Uses a Windows operating system and supplies six networks

Both are available with a six-year warranty and lifetime customer support.

Ethernet time synchronization server specifications

NTS-6002 NTS-8000

Receiver

GPS antenna

Radio antenna

GPS antenna

Radio antenna
Timing accuracy Network: ± 10 milliseconds, typical
GPS: <1>
Network: ± 12 milliseconds, typical
GPS: <1>

NTP time requests

>500,000 requests per minute >3,000 requests per minute

Supported networks

Two networks Six networks

Mount

19 inch rackmount 19 inch rackmount

Dimensions (height x width x depth)

45mm × 425mm × 309mm

Operating system

Linux Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections Multiple (up to 6) RJ-45 Network Connection 10/100 MBit
Product code NTS-6002-GPS-MSF NTS-8000-GPS-MSF

For more information on the range of NTP appliances Galleon Systems has to offer, contact us now.
