NTP time sync [NTS-6002-GPS-MSF & NTS-8000-GPS-MSF]

Galleon NTP time sync
Galleon NTP time sync

Accurate time is essential for a wide range of businesses and applications.

Schools, transport hubs, banks, and many other companies require a reliable time source to operate properly.

Galleon provides accurate time with NTP time sync. The NTP time servers receive accurate time from a GPS and radio source, ensuring your company’s clocks and computers are running on time.

Contact Galleon for more information on how an NTP time server can help you.


What is NTP time sync?

NTP time servers receive time from a radio (MSF) and satellite (GPS) source. Because the server can take time from either source, your time will be much more reliable and accurate.

To work, the radio antenna and GPS antenna need to gather the signal. A radio antenna can be placed inside or outside, whereas a GPS antenna needs to be outside.

Once ready, the GPS antenna can pick up a signal from up to 12 satellites, ensuring accurate time is always provided. The radio antenna receives time from the nearest radio tower.

An additional extension kit can also be provided. This means you can gather data from the antenna when it is up to 1000 metres away from the server. This way, you can place the antenna in a convenient place.

The NTP time server connects to your internal network via ethernet. It can then deliver reliable and accurate time to the clocks and computers within your business.

Because time from NTP servers is so accurate, they are ideal for:

  • Banks
  • Offices
  • Transport hubs
  • Hospitals
  • Schools
  • Factories
  • Warehouses

The NTP time sync tools available

Galleon Systems has worked with major organisations to ensure they receive accurate time, including Ford and Vodafone.

The company offers two models of NTP time server:

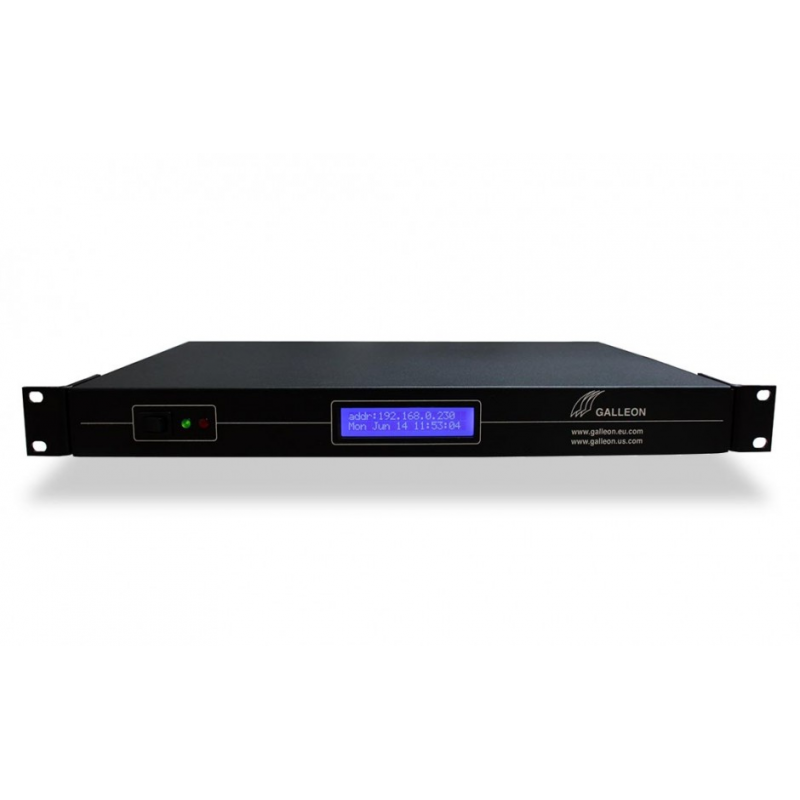

  • NTS-6002 – This can supply time to two networks, and uses a Linux operating system

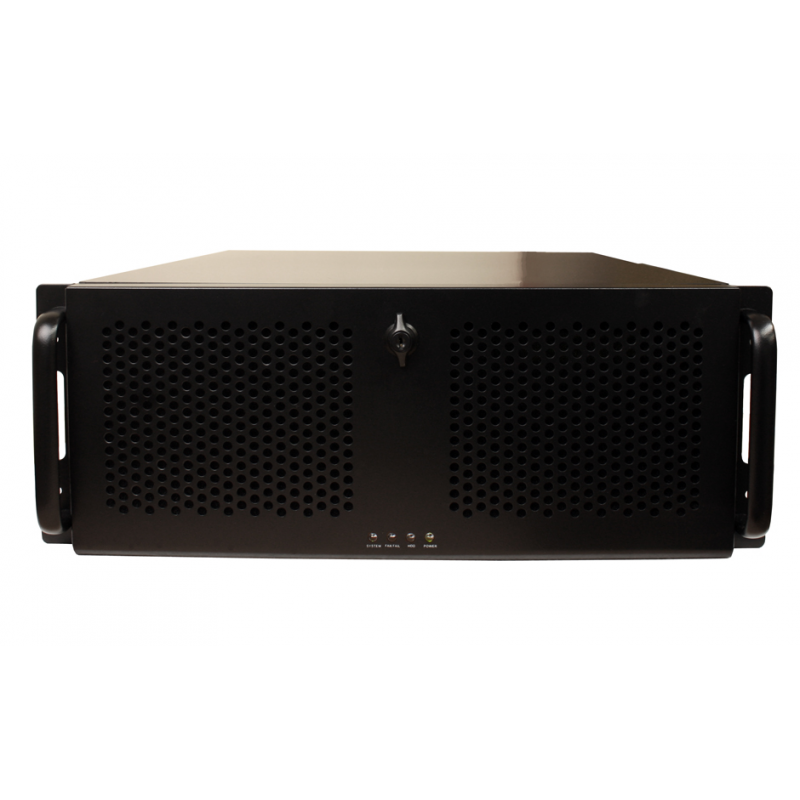

  • NTS-8000 – This can supply time to six networks, and uses a Windows operating system

Both are available with a six-year warranty, as well as lifetime customer support.

NTP time sync server specifications

NTS-6002 NTS-8000

Receiver

GPS antenna

Radio antenna

GPS antenna

Radio antenna
Timing accuracy Network: ± 10 milliseconds, typical
GPS: <1>
Network: ± 12 milliseconds, typical
GPS: <1>

NTP time requests

>500,000 requests per minute >3,000 requests per minute

Supported networks

Two networks Six networks

Mount

19 inch rackmount 19 inch rackmount

Dimensions (height x width x depth)

45mm × 425mm × 309mm

Operating system

Linux Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections Multiple (up to 6) RJ-45 Network Connection 10/100 MBit
Product code NTS-6002-GPS-MSF NTS-8000-GPS-MSF

For more information on the range of NTP appliances Galleon Systems has to offer, contact us now.
