Reliable GPS Receiver

GPS Antenna [GPS Antenna]

Standard GPS receiver shipped with Galleon GPS NTP servers, network time servers and time receivers

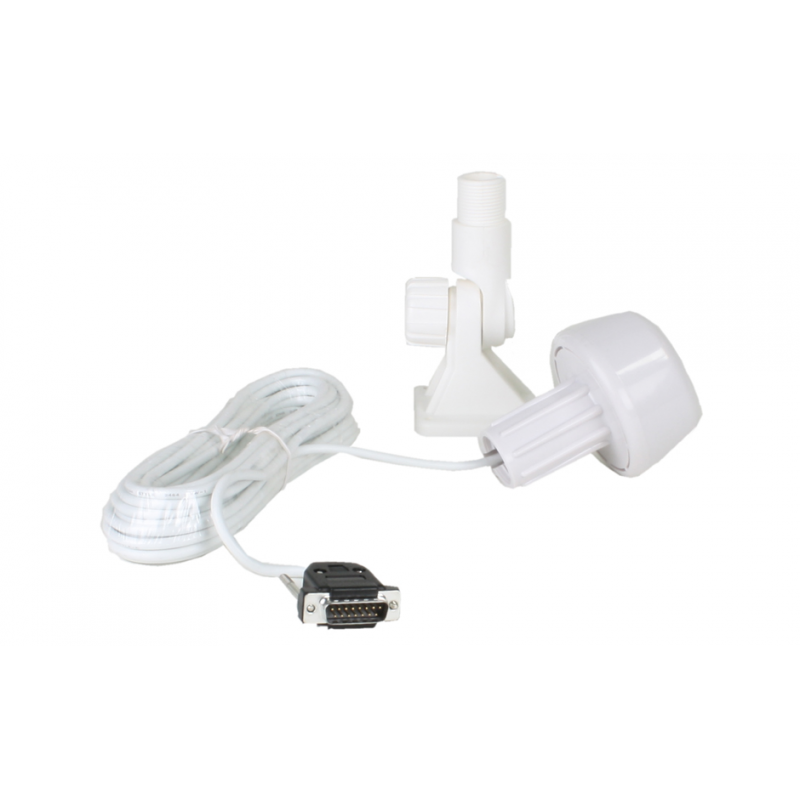

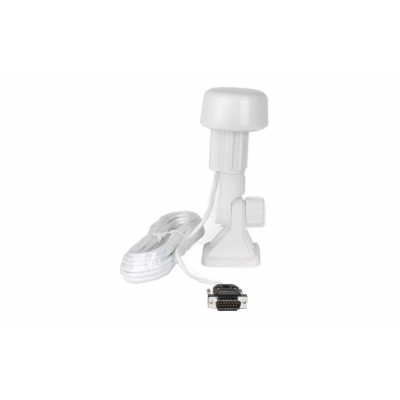

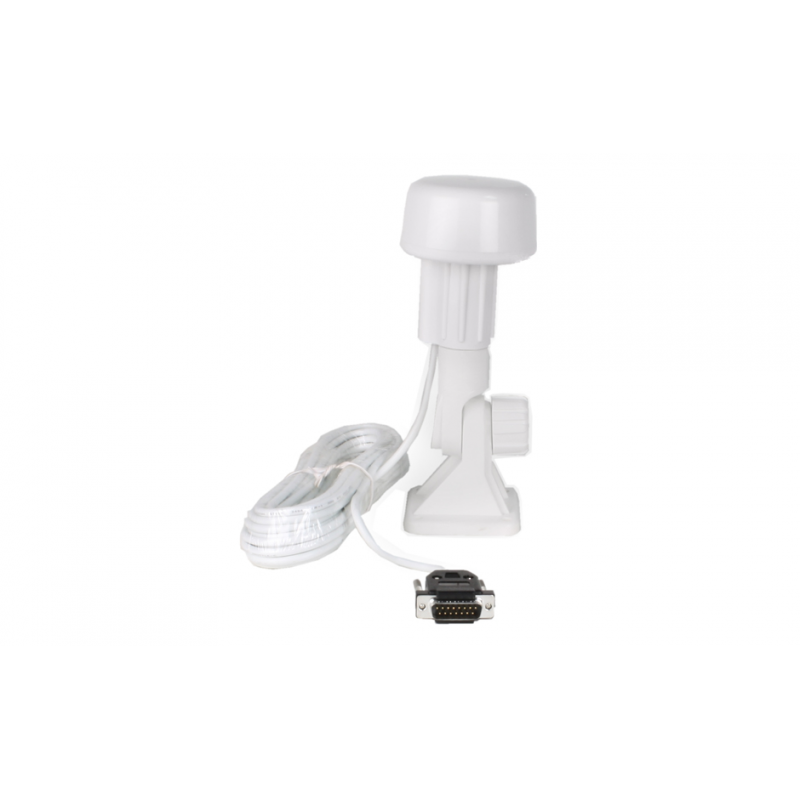

Reliable and accurate GPS Receiver

A waterproof (IP65) 12 channel, high sensitivity (-143dBm) GPS receiver and decoder accurate to <100 nanoseconds. Suitable for worldwide operation and has support for 1 pulse per second (PPS) output.

The GPS antenna is shipped with 10m of cable however, additional cable is available.

Key Benefits

  • 12 Channel satellite tracking
  • High Sensitivity unit
  • Waterproof unit for external mounting
  • 10m of included cable with option to extend it
  • 1 pulse per second (PPS) output supported

General L1 1575.42MHz, C/A code, 12-channel all in view tracking
Sensitivity -143dBm minimum
Update Rate 1Hz
Accuracy Position: <15m (95%) without S/A
Velocity: 0.1m/sec without S/A
Time: ±100ns synchronised to GPS time
WAAS Accuracy Position: 3m CEP
Velocity 0.05m/sec
Aquisition Cold start: 45 sec average
Warm Start: 38 sec average
Hot start: 8 sec average
Re-aquisition 0.1 sec
Data WGS-84
DGPS WAAS/EGNOS
Dynamics Altitude: 18000m Max.
Velocity: 500m/s
Acceleration 4gMax
Antenna Built in patch antenna
Operating temperature -30°C - 80°C
Operating humidity 5% - 95%
Input Current 150mA Max.
Protocols NMEA-0183 v2.20 at 4800 baud rate, 8-None-1
Interface RS-232 or RS-422
Power Input 9V - 34V DC
Cable Length 10m (can be extended)
