GPS clock NTP server for synchronised time

NTS-8000-GPS GPS NTP Time Server [NTS-8000-GPS]

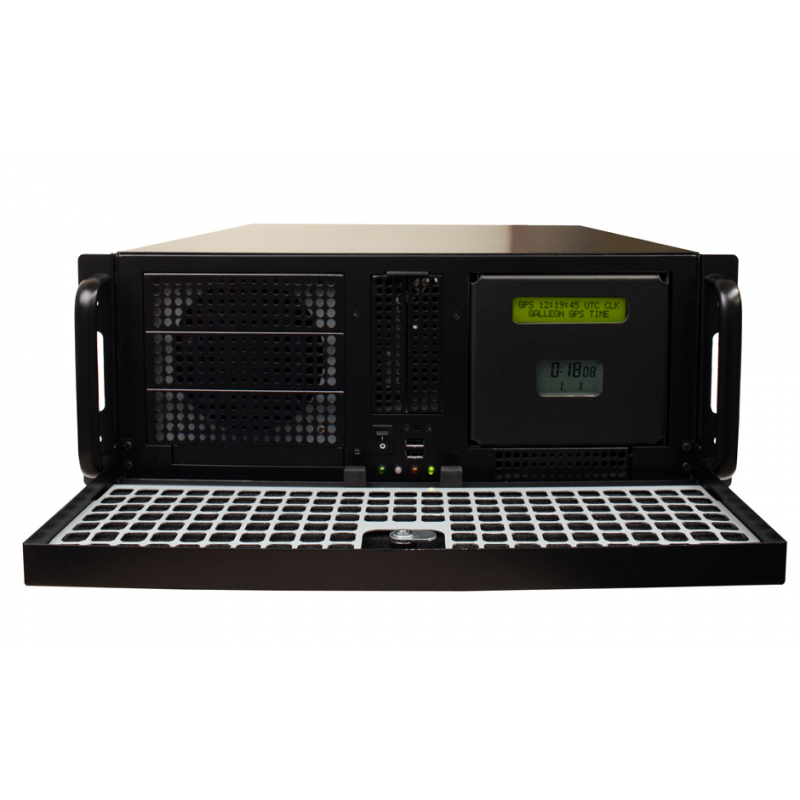

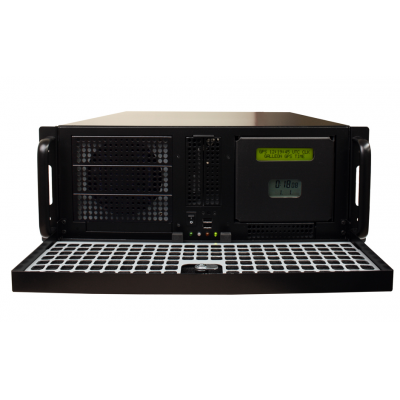

gps clock ntp server front view open

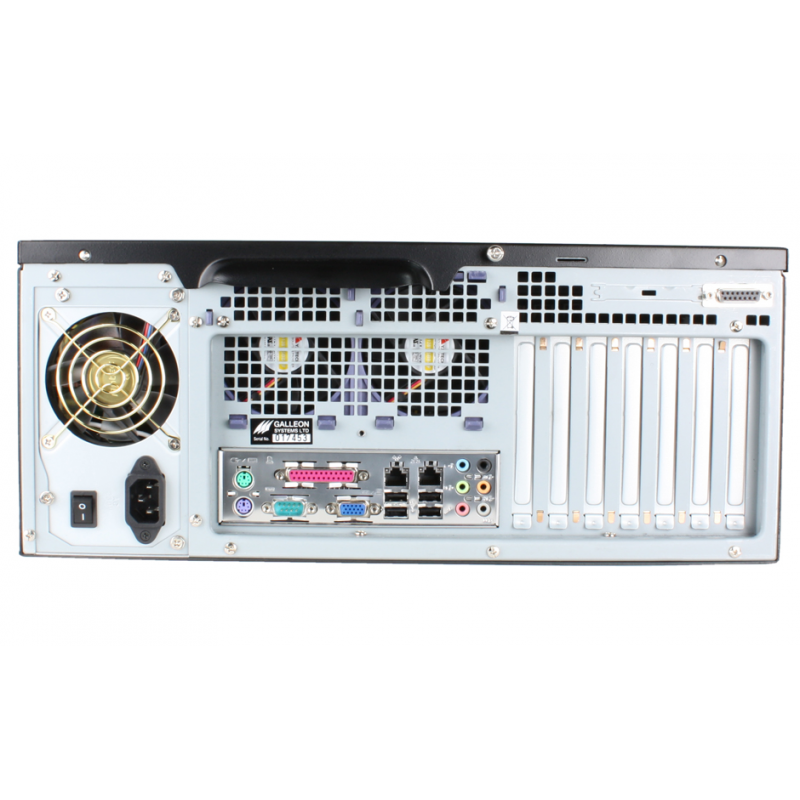

GPS clock ntp server rear view

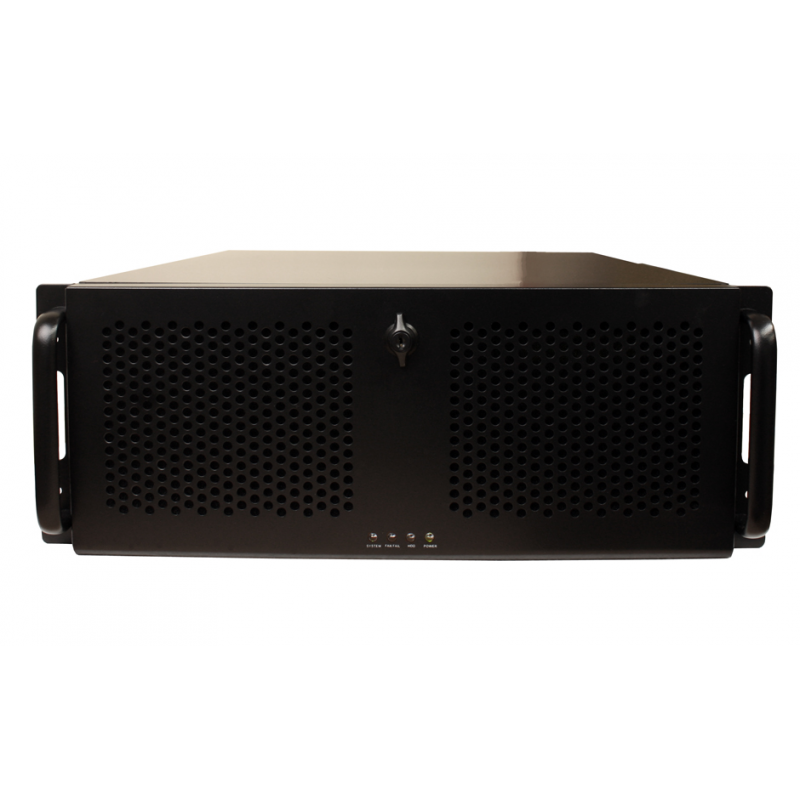

GPS clock ntp server front view closed

Precise and reliable Windows server stratum 1 GPS clock NTP server for large networks.

  • True stratum 1 NTP time server
  • GPS time reference input
  • Easily configured via a proprietary windows configuration utility pre-installed on the server
  • Handles >3,000 NTP requests per minute
  • Syslog error reporting
  • Industry leading 6 year warranty Free product lifetime support

Contact Galleon for more information.


GPS clock NTP server for accurate time

The NTS-8000-GPS is a dedicated NTP time server for TCP/IP networks, which combines a GPS clock/receiver with a Windows server-based computer allowing all the standard options available with Windows.

The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This NTP server incorporates a GPS clock and remote GPS antenna. The antenna tracks up to 12 (of 24) satellites for increased precision and is fully weather proof (IP65) as it must be installed externally. The antenna can be mounted up to 1,000m (3,000ft) from the unit using an appropriate (optional) antenna extension kit.

The NTS-8000-GPS has a backlit LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP V4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a network interface. The IP address of the unit can be configured by using DHCP to assigning an IP address automatically or a fixed IP address can be used.

The NTS-8000-GPS can be built with multiple (currently up to six) Ethernet ports enabling it to serve time to multiple independent networks and can handle more than 3,000 NTP requests per minute per network, making it the first choice for providing accurate time information to very large networks with thousands of clients!



Key Benefits of the GPS clock NTP server

  • Ready-to-operate secure stratum 1 NTP time server
  • Includes active GPS antenna
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Easily configured via a proprietary windows configuration utility pre-installed on the server
  • Multiple RJ-45 Ethernet interfaces 10/100 MBit
  • Can handle more than 3,000 NTP requests per minute per port, ideal for large networks
  • MD5 authentication for advanced security
  • Able to peer with other NTP time servers for enhanced synchronization security
  • Front panel display for time and satellite and radio time status
  • SNTP and NTP protocol support
  • Syslog error reporting
  • 6 year warranty

Product Specification for the GPS clock NTP server

Receiver: Active 12 channel GPS antenna
Timing accuracy:

Network: ± 10 milliseconds, typical
GPS: <1>

NTP time requests: >3,000 requests per minute
Supported networks: Can supply time to 6 separate networks
Housing: Standard 19" rackmount (1U)
Display: LCD panel, 2 x 20 characters, with backlight
Operating system: Windows server 2012 R2
Protocols (NTP & SNTP): NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface: Multiple (up to 6) RJ-45 network connection 10/100 MBit
Power supply: 85 - 260V, 47 - 63Hz
Operating temperature: 0-50°C / 32-122°F
Operating humidity: Max. 85%

What's in the box?

  • NTS-8000-GPS unit
  • GPS mushroom antenna (with a 10m/8 Core Cable)
  • Instruction manual
  • Power lead
  • NTP software CD
  • Junction box (used to extend antenna cable - if necessary)
  • IDC cable tool (used to insert cable into the junction box- if necessary)

Contact Galleon using the form below for more information about the GPS clock NTP server.
