GPS NTP server appliance provides accurate time

GPS NTP servers [NTS-4000-GPS, NTS-6002-GPS, NTS-8000-GPS]

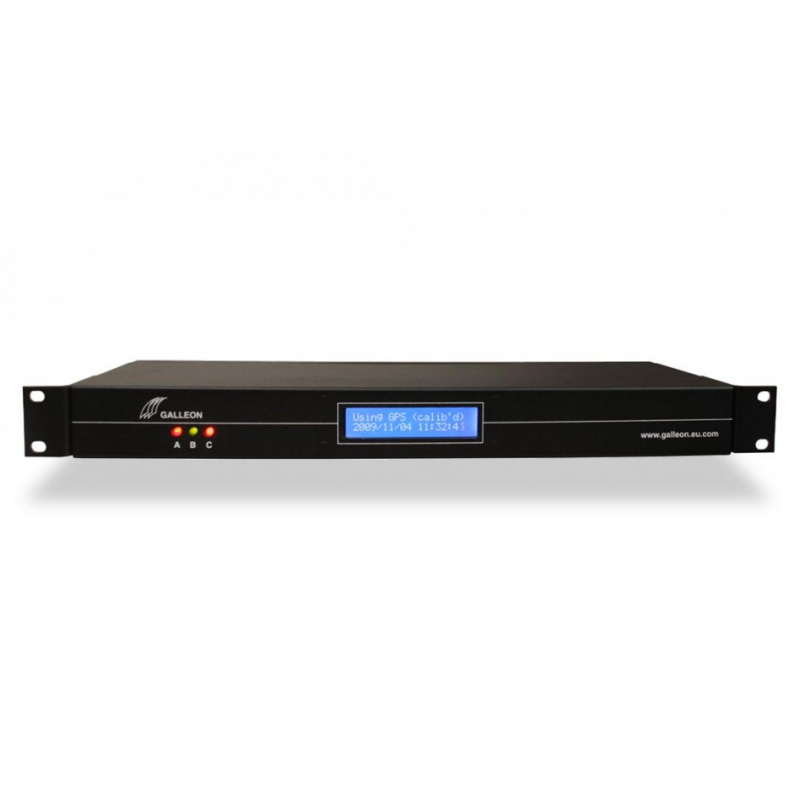

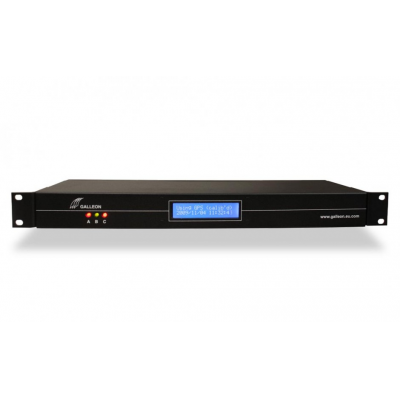

GPS NTP server appliance - NTS-4000 front view

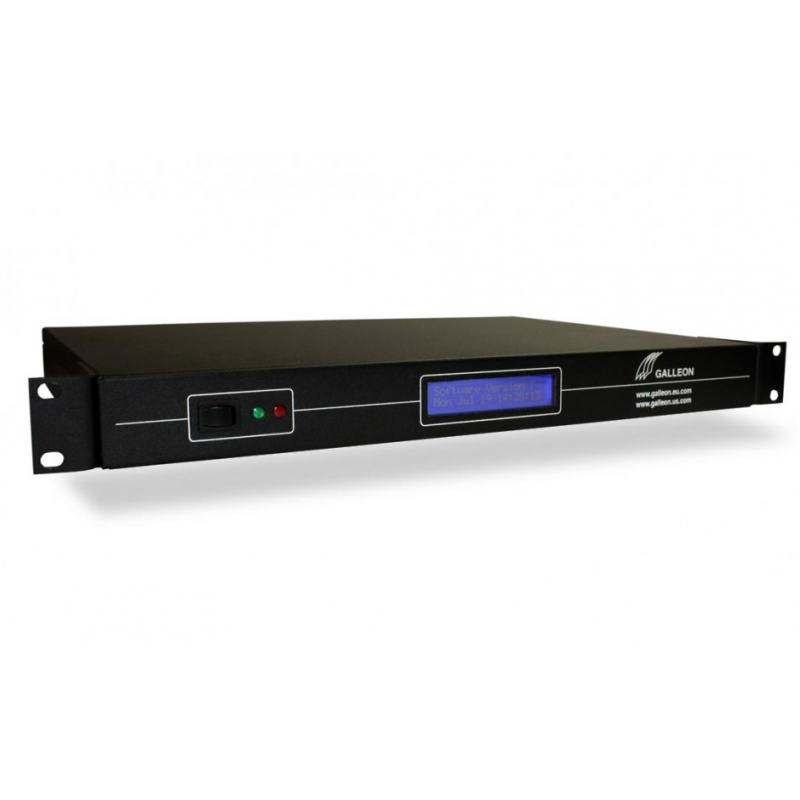

GPS NTP server appliance - NTS-6002 side view

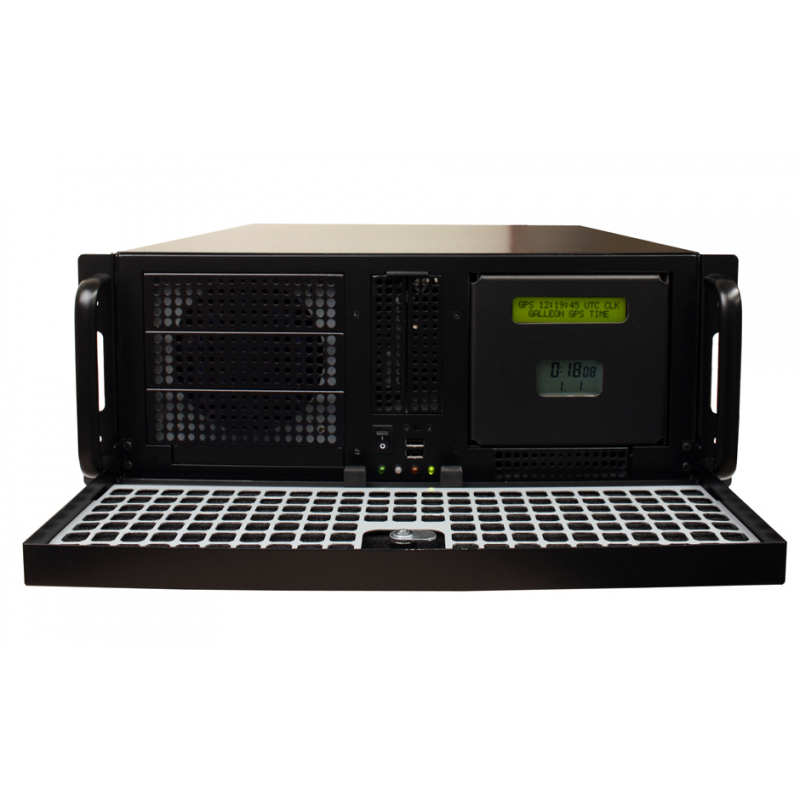

GPS NTP server appliance - NTS-8000 front view

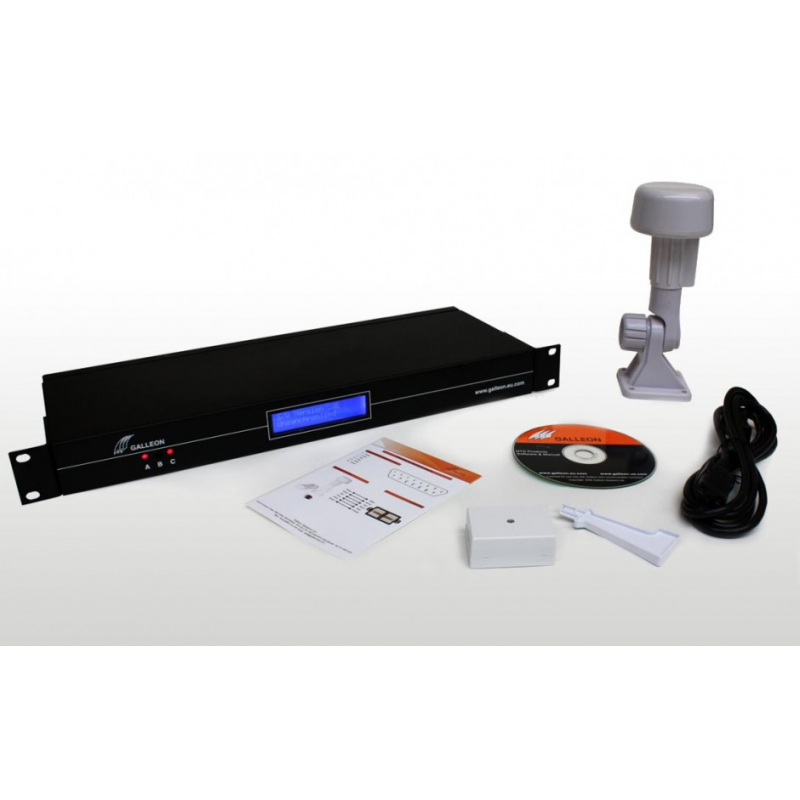

GPS NTP server appliance - contents in the box

Does your business or organisation depend on synchronised time? A Galleon Systems GPS NTP server appliance receives highly accurate time from up to 12 satellites. An NTP server then delivers that time to the clocks, PCs and phones that your employees use. You benefit from greater employee productivity and synchronised business operations.

Three NTP servers are available, so you can find the ideal one for your needs.

Contact Galleon Systems for more information.


GPS NTP server appliance: accurate and easy to use

A GPS NTP server appliance can receive accurate time from up to 12 satellites for the utmost reliability. The server connects to your network via an Ethernet connection and delivers accurate time to other devices on the network. Hundreds of devices can be synchronised from a single server.  Your employees can access synchronised time throughout your business.

A Galleon Systems GPS server fits into a 19 inch rack, so you can easily install it. The GPS antenna must be placed outside with a clear view of the sky. However, you can use an optional extension kit to position the antenna up to 1000 metres from the NTP server. The extension kit ensures that you can achieve the best position for the antenna.

Galleon Systems GPS servers are far more secure than a public, Internet time server. An Internet time server requires you to open a hole in your firewall, which makes your network vulnerable to attack. However, a Galleon Systems server is positioned within your firewall. Your network is protected from hackers, and your business is secure.

All Galleon servers come with a six year warranty and lifetime product support.

Three GPS servers are available:

  • NTS-4000-R: Supports one network. Galleon operating system.
  • NTS-6002: Supports two networks. Linux operating system.
  • NTS-8000: Supports six networks. Windows operating system.

NTP servers are ideal for a range of locations

Galleon Systems NTP servers are used worldwide by companies such as Ford, Rolls Royce, HP, Shell and Vodafone. Galleon NTP servers are suitable for any location that needs accurate time, such as:

  • Offices
  • Warehouses
  • Factories
  • Transport hubs
  • Shipping depots
  • Schools
  • Hospitals
  • Banks
  • Datacentres

GPS NTP server appliance specifications

NTS-4000-R NTS-6002 NTS-8000

Receiver

12 channel GPS antenna 12 channel GPS antenna 12 channel GPS antenna
Timing accuracy Network: ± 12 milliseconds, typical
GPS: <1>
Network: ± 10 milliseconds, typical
GPS: <1>
Network: ± 12 milliseconds, typical
GPS: <1>

NTP time requests

>3,000 requests per minute >500,000 requests per minute >3,000 requests per minute

Supported networks

One network Two networks Six networks

Mount

19 inch rackmount

19 inch rackmount

19 inch rackmount

Dimensions (height x width x depth)

45mm × 423mm × 163mm 45mm × 425mm × 309mm

Operating system

Galleon Linux Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC1305)
SNTP: v3 (RFC 1769)
NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Single RJ-45 network connection 10/100 MBit Standard 10/100/1000 Base-T, Dual RJ-45 network connections Multiple (up to 6) RJ-45 network connection 10/100 MBit
Product code NTS-4000-GPS NTS-6002-GPS NTS-8000-GPS

Contact Galleon Systems for advice about the best GPS NTP server appliance for your organisation.
