GPS NTP server for time synchronisation

NTS-6002-GPS NTP Time Server [NTS-6002-GPS]

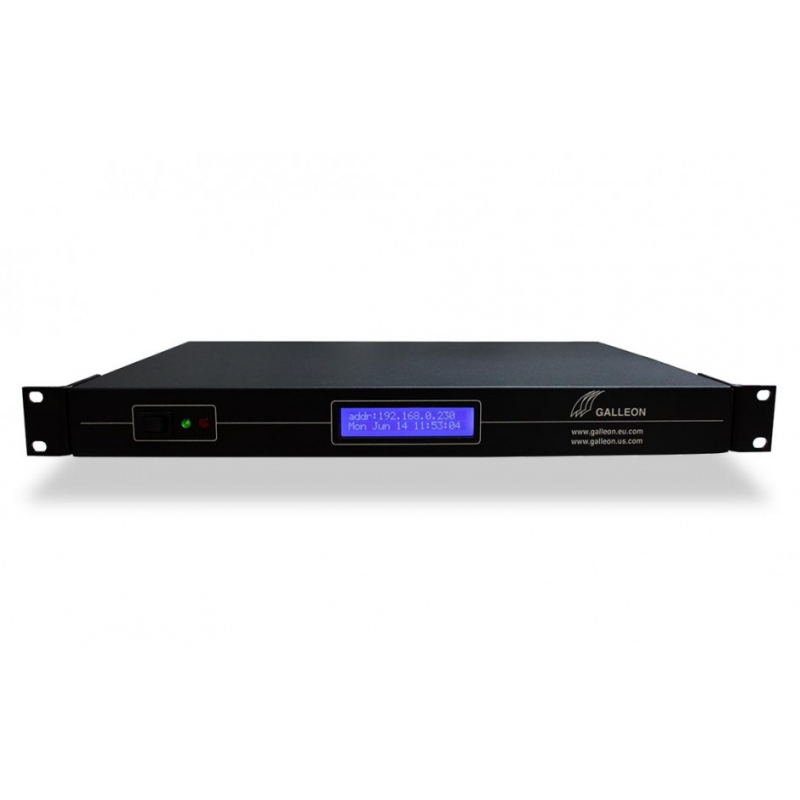

Galleon gps ntp server 6002 front view

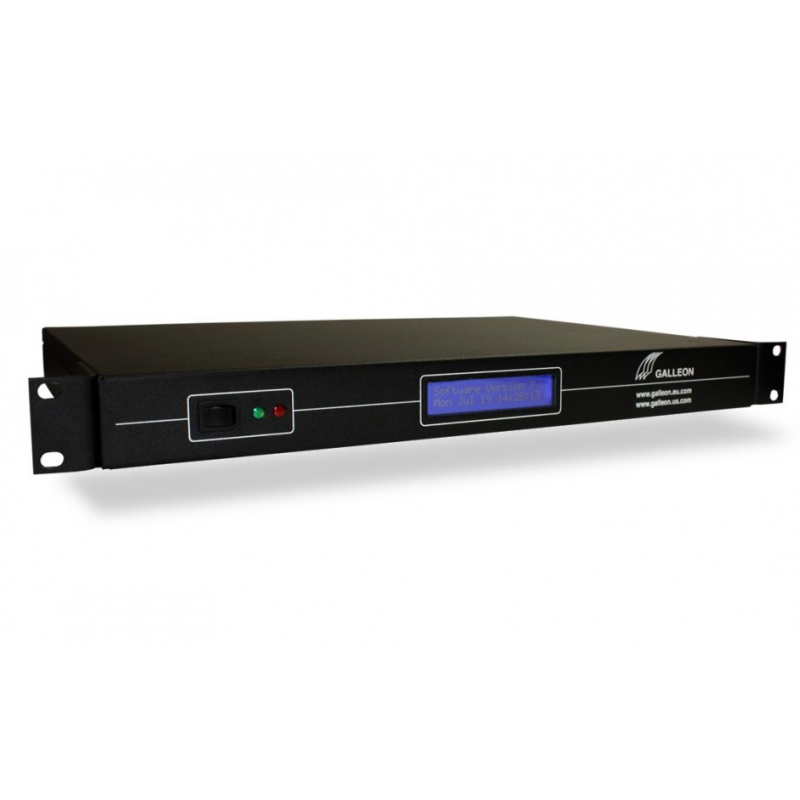

GPS NTP server 6002 side view

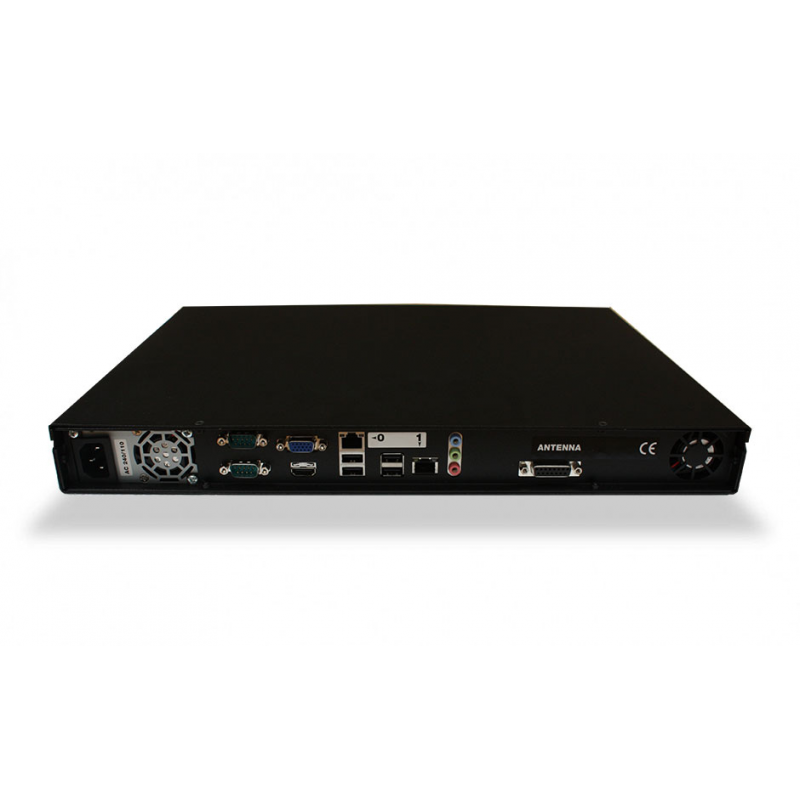

GPS NTP server 6002 rear view

Consistent and reliable Stratum 1 GPS NTP Server

  • True stratum 1 NTP time server
  • GPS time reference input
  • Web based configuration interface
  • Handles >500,000 NTP requests per minute
  • Solid state memory eliminates 'disk failure'
  • Syslog error reporting
  • Industry leading 6-year warranty
  • Free product lifetime support

Contact Galleon for more information.


NTP Network Time Server with GPS time receiver

The NTS-6002-GPS is an update to our bestselling NTS-6001-GPS. The Hardware has been upgraded to include a quad core CPU and reduce the power consumption of the unit.

As with its predecessor, the Galleon NTS-6002-GPS NTP Time Server combines a GPS receiver with an embedded solid-state computer running the Linux operating system.

The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This GPS NTP server incorporates a GPS computer clock and a highly accurate remote antenna that tracks up to 12 satellites for increased precision. The antenna is fully weather proof (IP65) as it must be installed externally, preferably on a roof top with a 360° view of the sky. It can be positioned up to 200m (600 ft) away as standard, or up to 1,000m (3,000ft) using an optional antenna extension kit.

The NTS-6002-GPS has a backlit LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP V4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straightforward via a web interface. The IP address of the unit can be configured by using DHCP to assign an IP address automatically or a fixed IP address can be used.

The NTS-6002-GPS has dual Ethernet ports enabling it to serve time to two independent networks and can handle more than 500,000 NTP requests per minute per network, making it the first choice for providing accurate time information to large networks with thousands of clients!

Key benefits of the GPS NTP server

  • Ready-to-operate Secure stratum 1 NTP time server
  • 6-year warranty
  • Includes GPS active antenna and can support a secondary time receiver for the MSF radio time signal
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Supports both IPv4 and IPv6 networks
  • Configured across network via a secure browser interface by HTTPS (RFC2616) and Secure Shell (SSH)
  • Dual RJ-45 Ethernet interfaces 10/100/1000 Mbit
  • Supports NIC teaming for fail over and redundancy
  • Can handle more than 500,000 NTP requests per minute per port, ideal for large networks
  • MD5/SHA authentication for advanced security
  • Able to peer with other NTP time servers for enhanced synchronization security
  • Solid state flash memory enables software upgrades and eliminates 'disk failure'
  • Front panel display for time and satellite and radio time status
  • SNTP and NTP protocol support
  • Syslog error reporting

GPS NTP server technical specifications

Receiver:

Active 12 channel GPS antenna

Timing accuracy:

Network: ± 10 milliseconds, typical
GPS: <1>

NTP time requests: >500,000 requests per minute
Supported networks:

Can supply time to 2 separate networks

Power consumption:

27 Watts

Housing:

Standard 19" rackmount (1U)

Dimensions (H × W × D):

45mm × 425mm × 309mm

Display:

LCD Panel, 2 x 20 characters, with backlight

Operating system: Linux

Protocols (NTP & SNTP):

NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)

Network interface:

Standard 10/100/1000 base-t, dual RJ-45 network connections

Power supply:

85 - 260V, 47 - 63Hz

Operating humidity:

Max. 85%

What's in the box?

  • NTS-6002-GPS unit
  • GPS mushroom antenna (with a 10m/8 Core Cable - not shown)
  • Power lead
  • NTP software & instruction manual on a USB Stick
  • Junction box (used to extend antenna cable - if necessary)
  • IDC cable tool (used to insert cable into the junction box- if necessary)

For pricing and more information about the GPS NTP server, contact Galleon using the form below.
