TS-500-GPS Network Time Server [TS-500-GPS]

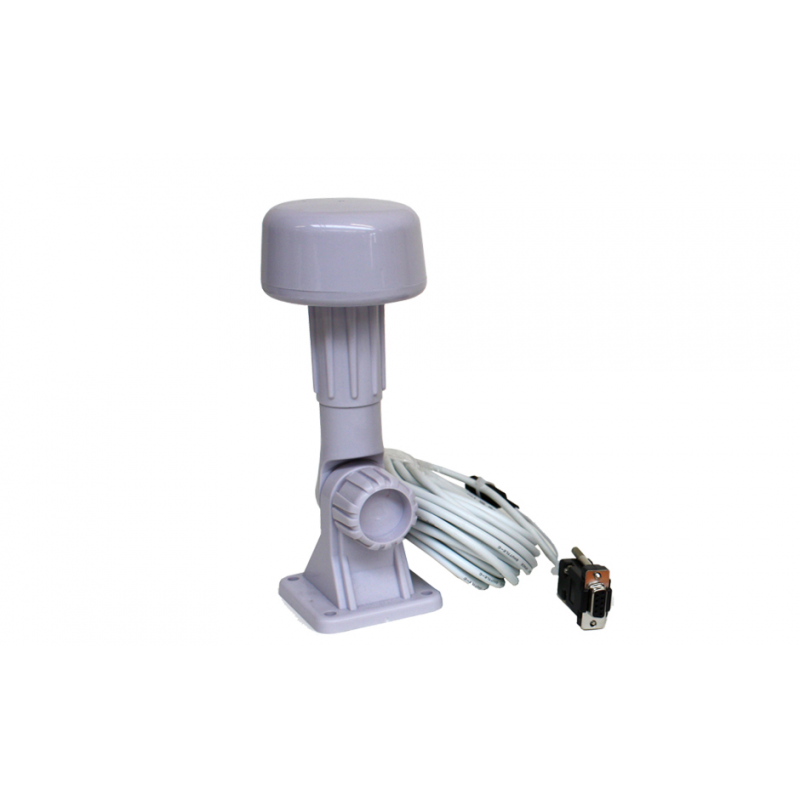

network time system hardware front view

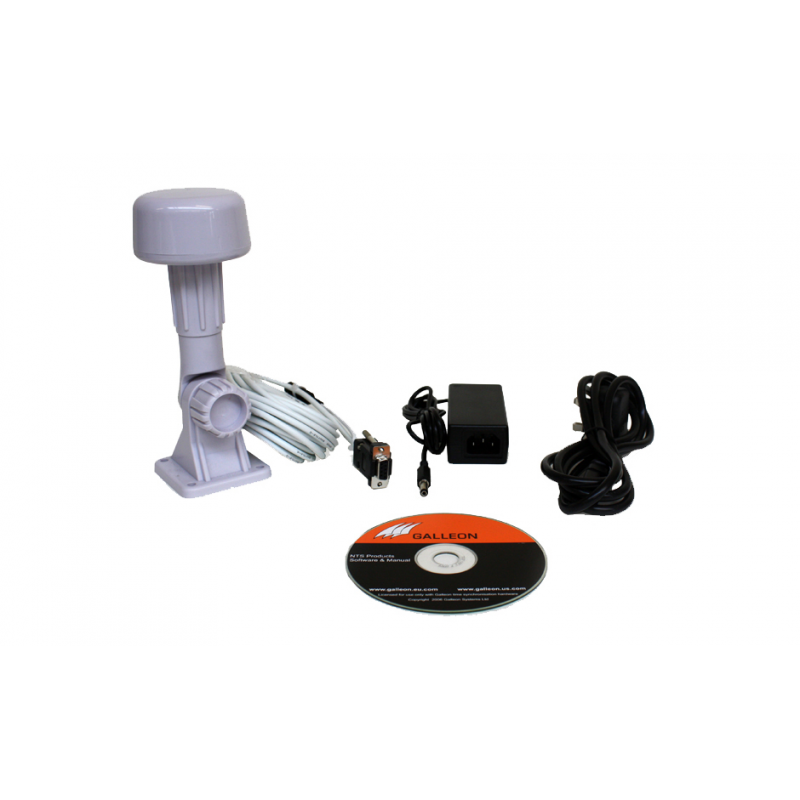

network time system hardware what's included

Accurate GPS network time system hardware

Similar to the TS-400-GPS unit, the TS-500-GPS time server is supplied as an active GPS antenna and software to convert a Windows workstation or server into a stratum 1 NTP time server. However in contrast to the TS-400-GPS, the TS-500-GPS can track up to a maximum of 12 satelites and utilises a pulse per second (PPS) output for added accuracy.


Key Benefits for network time system hardware

  • External GPS antenna
  • Tracks up to 8 satellites
  • PPS line for increased accuracy
  • Accuracy ±20ms
  • Mains powered
  • Three year warranty

Technical specification for TS-500-GPS network time server

Antenna Signal Satellite - Active 12 Channel GPS
Power Supply 85-260V, 47-63Hz
Protocols SNTP via Time-Sync Software
Connections RS232 Serial Interface
Mounting Must be mounted externally (preferably with 360° view of sky)
Operating System Requires MS Windows (version dependent on existing system)
Humidity Max. 85%
Operating Temperatures 0-50°C (32-122°F)
Network Accuracy ± 20 ms, Typical
Signal (GPS) Accuracy <1>

What's in the box?

  • TS-500-GSP antenna with 10m (15m max. of cable)
  • Instruction manual
  • Power lead
  • NTP software CD

Additional Extras

The following products are also available for use with the TS-500-GPS:

  • Gold and premium support packages
  • Digital wall clocks
  • Additional software licenses (available from 5 to 300+ clients)
