Network Time Server GPS Receiver - TS-700-GPS

Network Time Server [TS-700-GPS]

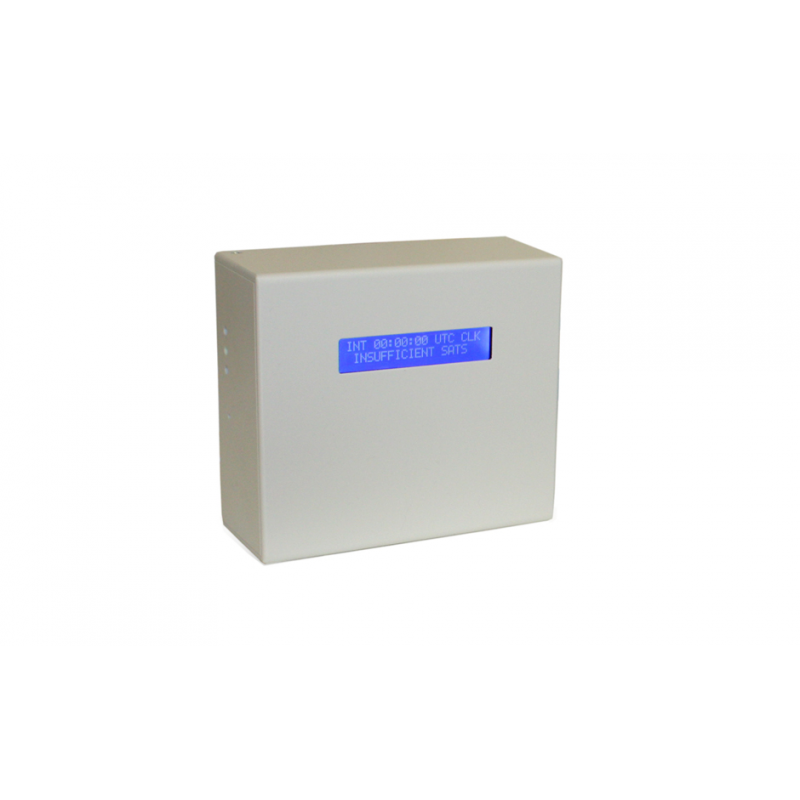

Network Time Server GPS Receiver view of front display

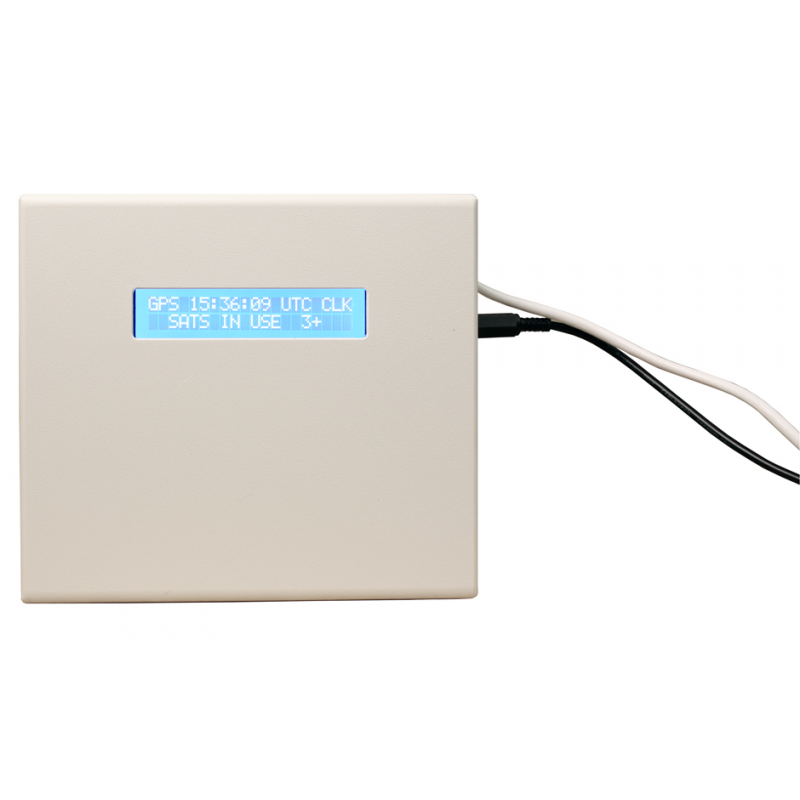

Network Time Server GPS Receiver front with cable connected

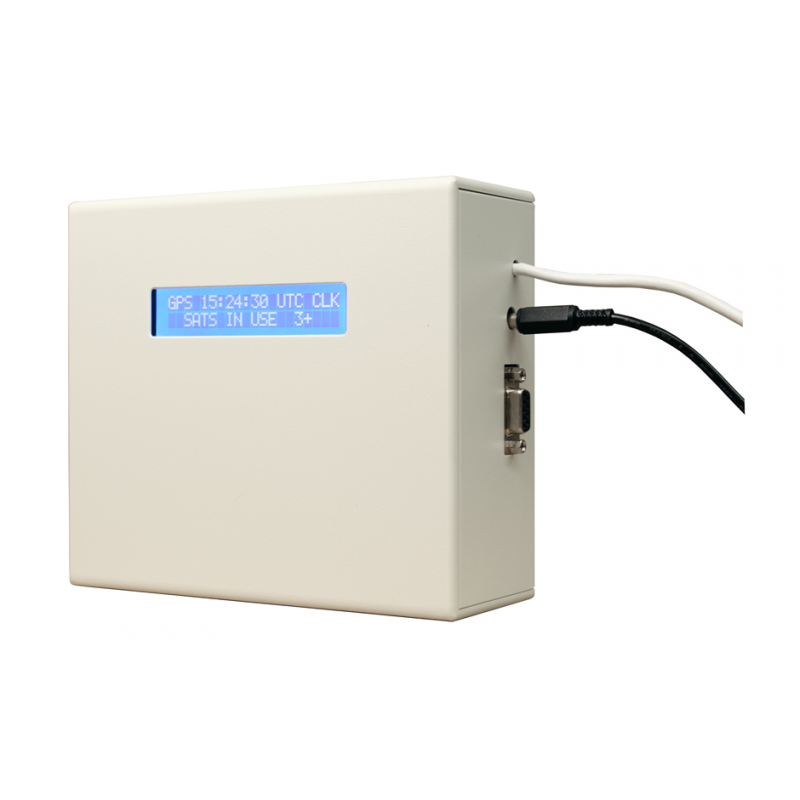

Network Time Server GPS Receiver side display

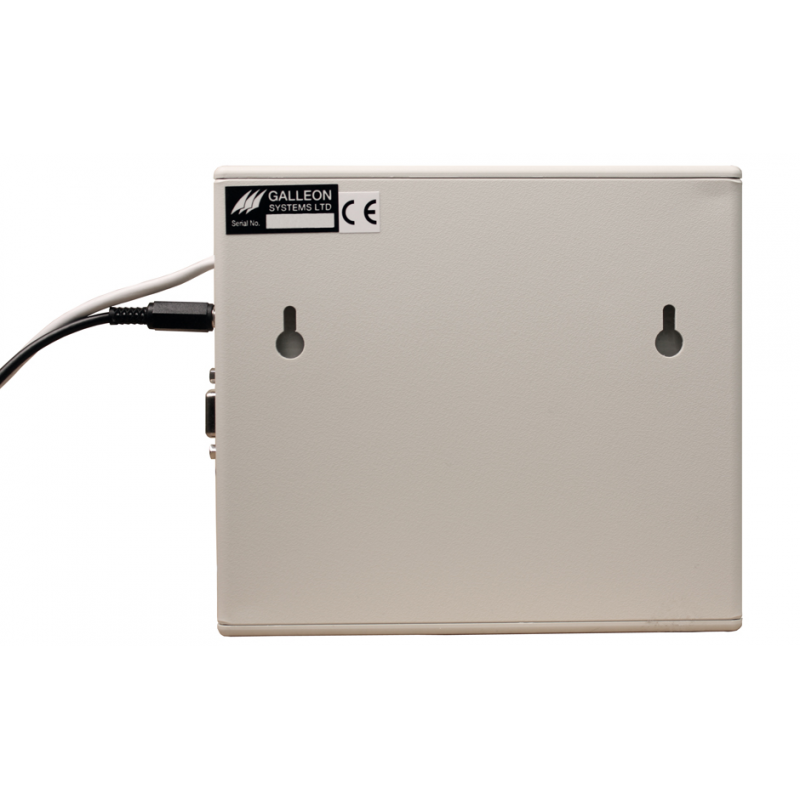

Network Time Server GPS Receiver back view

The Network Time Server GPS Receiver features a GPS clock which supplies time to the computer via a serial interface and TimeSync software driver. The TS-700-GPS will synchronize the time across a Windows PC.

Precise Network Time Server GPS Receiver

The TimeSync software conforms to the Network Time Protocol, runs as a service and configures as a Stratum 1 NTP Timeserver supplying NTP time to any other machine on the network. A two line display on the TS-700-GPS unit shows run-time information for the GPS subsystem and UTC time. The TS-700-GPS provides an elegant solution ensuring that a Windows Server or a Domain Controller has accurate secure time behind the company firewall.

Key Benfits

  • Easy to set up - Installs as a service on a Windows Server
  • Converts existing Windows Server to a Stratum 1 NTP Time Server
  • Provides accurate timing for computers and computer networks
  • Accuracy ±20ms to UTC
  • World-wide operation
  • Three years warranty

Technical specification for TS-700-GPS Network Time Server

Type of receiver Active Antenna GPS 12 channel
Mounting (GPS Clock) Wall mountable or free standing
Mounting (Antenna) Wall mounting bracket
Display LCD, 2 x 20 characters, with backlight
Network Interface Via a Windows server or workstation
Interface to Server RS232 serial interface (USB optional)
Power supply 85 - 260V, 47 - 63Hz
Working Temperature 0 - 50°C / 32 - 122°F
Working Humidity Max. 85%
Timing Accuracy Network: +/- 20 milliseconds, typical
GPS: 1 microseconds, relative to UTC
Signal (GPS) Accuracy <1>

What's in the box

  • TS-700-GPS clock + power supply
  • GPS Antenna (with a 10m/8 Core Cable - not shown) + power supply
  • Instruction Manual
  • NTP Software CD
  • Junction Box (to extend antenna cable - if necessary)
  • IDC Cable Tool (to insert extension cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the TS-700-GPS :

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Antenna Cable (100 to 1,000 metre rolls available)
  • Additional Power Supply (Recommended from 150 metres onwards)
  • Additional Software Licenses (available from 5 to 300+ clients)
