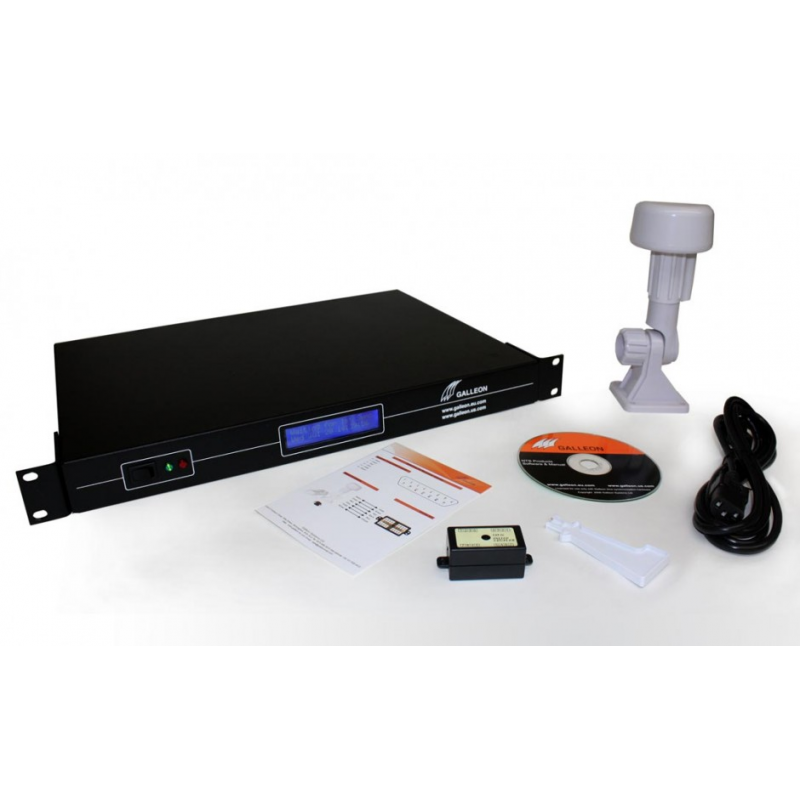

network time sync box contents
network time sync server
network time sync server

Does your business or organisation depend on time synchronised operations?

Galleon manufactures network time sync servers, which supply accurate time to the devices on your network. Galleon NTP servers receive time from up to 12 satellites and deliver that time to the clocks, phones and PCs that your employees use every day.

Galleon time servers sit within your firewall, which makes them more secure than Internet time servers and ideal for settings where security is a priority.

Contact Galleon to find out more.


NTP servers are accurate and secure

Galleon network time sync servers receive the time from satellite sources via a GPS antenna. The antenna communicates with up to 12 satellites for maximum accuracy and reliability. The NTP server then delivers that time to the devices on your network via an Ethernet connection. Thousands of devices can be synchronised from a single server, which allows you to benefit from accurate time across your entire organisation or premises.

Galleon time servers are also far more secure than public, Internet time servers. Public time servers require you to open a port in your firewall, which compromises the security of your network. Galleon servers, on the other hand, sit within your firewall and maintain your security. Galleon time synchronisation servers are ideal for banks and financial organisations for which security is a high priority.

Galleon NTP servers come with a six-year warranty and lifetime customer support.

For more information about Galleon servers, contact us using the form below.

Network time sync servers are ideal for a range of locations

Galleon’s NTP servers are used worldwide by companies such as Ford, Rolls Royce, HP, Shell and Vodafone. Galleon servers are suitable for any location that needs secure, accurate time, including:

  • Offices
  • Warehouses
  • Factories
  • Transport hubs
  • Shipping depots
  • Schools
  • Hospitals
  • Banks
  • Datacentres

Network time sync server specifications

NTS-4000-R NTS-6002 NTS-8000

Receiver

12 channel GPS antenna 12 channel GPS antenna 12 channel GPS antenna
Timing accuracy Network: ± 12 milliseconds, typical
GPS: <1>
Network: ± 10 milliseconds, typical
GPS: <1>
Network: ± 12 milliseconds, typical
GPS: <1>

NTP time requests

>3,000 requests per minute >500,000 requests per minute >3,000 requests per minute

Supported networks

One network Two networks Six networks

Mount

19-inch rackmount 19-inch rackmount 19-inch rackmount

Dimensions (height x width x depth)

45mm × 423mm × 163mm 45mm × 425mm × 309mm

Operating system

Galleon Linux Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC1305)
SNTP: v3 (RFC 1769)

NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)

NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Single RJ-45 network connection 10/100 MBit Standard 10/100/1000 Base-T, Dual RJ-45 network connections Multiple (up to 6) RJ-45 network connection 10/100 MBit
Product code NTS-4000-GPS NTS-6002-GPS NTS-8000-GPS

Contact Galleon for advice about the best network time sync server for you.


Contact Galleon Systems
