NTP GPS time server for accurate time

NTS-4000-R-GPS NTP Server [NTS-4000-R-GPS]

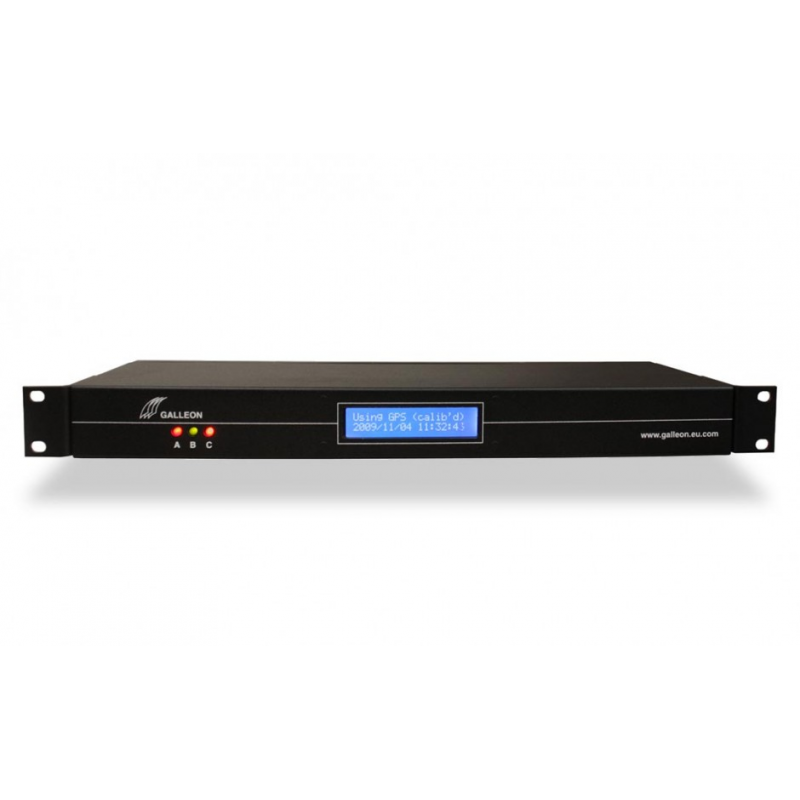

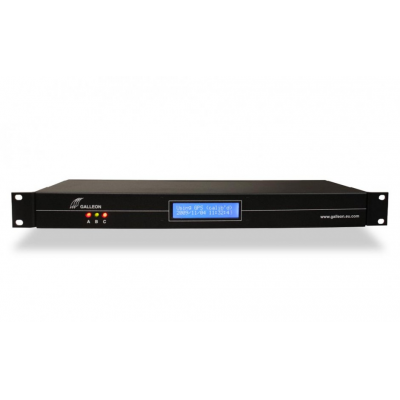

NTP GPS time server

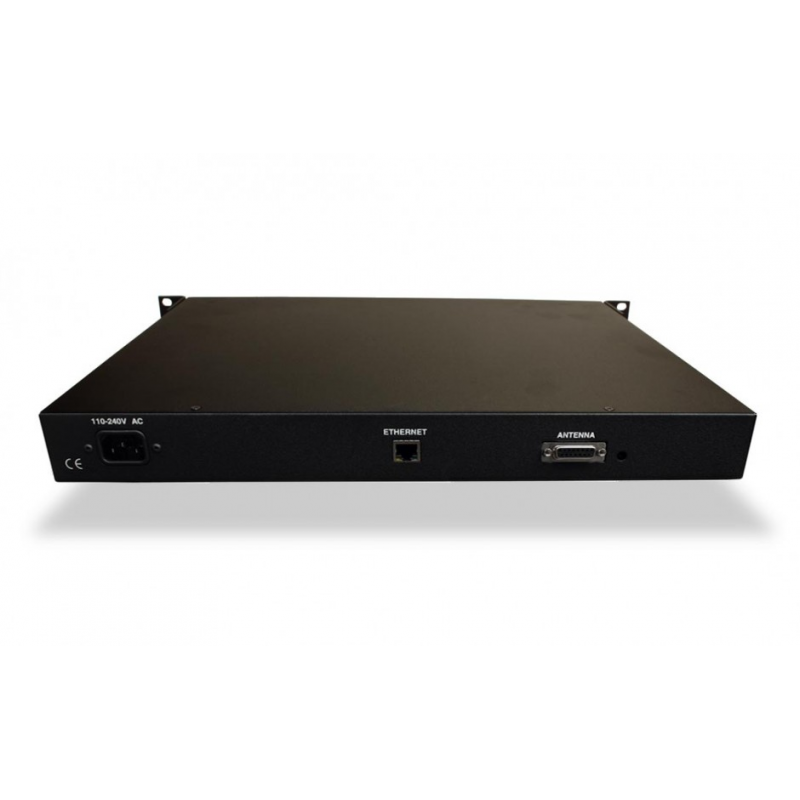

NTP GPS time server rear view
What comes with the NTP GPS time server

Rackmount, dedicated secure Stratum 1 GPS NTP server, active antenna and software for uni-cast or broadcast time synchronisation.

True stratum 1 NTP time server GP time reference input Configured over the network Handles >3,000 NTP requests per minute Solid state memory eliminates 'disk failure' Industry leading 6 year warranty Syslog error reporting Free product lifetime support

Contact Galleon for more information about the NTP GPS time server.


An NTP GPS time server for accurate time

The NTS-4000-R-GPS NTP Time Server combines a GPS receiver with an embedded solid-state computer running Galleon Systems' proprietary, secure operating system.

The unit connects directly to your network via a CAT5 ethernet connection and fits in a standard 19" rack (a standalone version of the NTS-4000-GPS is also available). This GPS network timing solution incorporates a GPS computer clock and a highly accurate remote GPS antenna that tracks up to 12 satellites for greater precision. The antenna is fully weather proof (IP65) as it must be installed externally, preferably on a roof top with a 360° view of the sky, it can be positioned up to 200m (600 ft) away as standard, or up to 1,000m (3,000ft) using an optional antenna extension kit.

The NTS-4000-R-GPS has an LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a network interface. The IP address of the unit can be configured by using DHCP to assigning an IP address automatically or a fixed IP address can be used.

Benefits of the NTP GPS time server

Ready-to-operate Secure Stratum 1 NTP Time Server 6 year warranty Includes GPS active antenna Support for NTP and SNTP compatible clients Can handle more than 3,000 NTP requests per minute, ideal for small to medium networks Easily configured via a windows configuration utility Solid State Flash memory enables software upgrades and eliminates 'disk failure' RJ-45 Ethernet interfaces 10/100 MBit Front Panel display for Time and Satellite Status Syslog error reporting

NTP GPS time server technical specifications

Receiver: Active 12 channel GPS Antenna
Timing accuracy: Network: ± 12 milliseconds, typical
GPS: <1>
NTP time requests: >3,000 requests per minute
Supported networks: Can supply time to a single network
Power consumption: 8 Watts
Housing: Standard 19" rackmount (1U)
Dimensions (H × W × D): 45mm × 423mm × 163mm
Display:

LC-display, 2 x 20 characters, with backlight

Operating system: proprietary
Protocols (NTP & SNTP): NTP: v2 (RFC 1119), v3 (RFC1305)
SNTP: v3 (RFC 1769)
Network interface: Single RJ-45 Network Connection 10/100 MBit
Power supply: 85 - 260V, 47 - 63Hz
Operating temperature: 0-50°C / 32-122°F
Operating humidity: Max. 85%

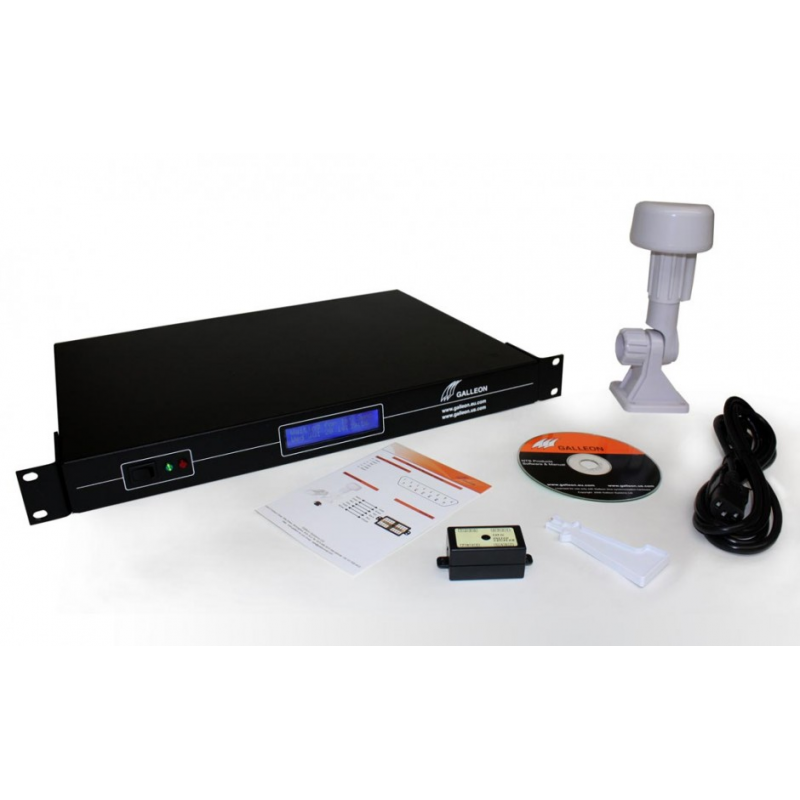

What's in the box?

The Galleon time server comes with:

  • NT-4000-r-gps unit GPS mushroom antenna (with a 10m/8 core cable - not shown)
  • Instruction manual
  • Power lead
  • NTP software CD
  • Junction box (used to extend antenna cable - if necessary)
  • IDC cable tool (used to insert cable into the junction box- if necessary)

Contact Galleon for more information about the NTP GPS time server.
