rackmount dual time server for accurate time

NTS-6002 and 8000 Dual NTP Time Server [NTS-6002-GPS-MSF and NTS-8000-GPS-MSF]

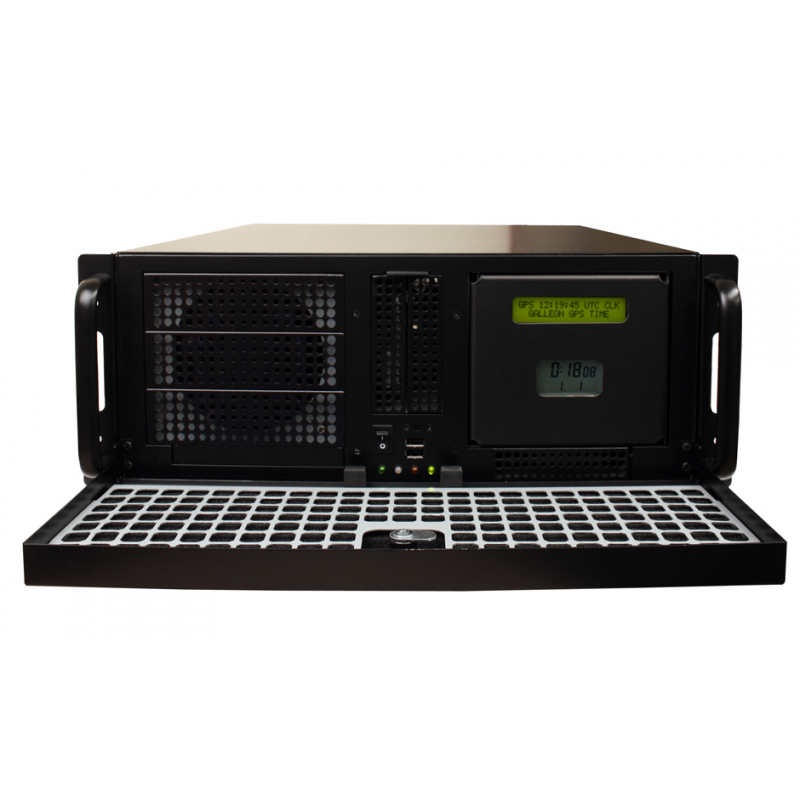

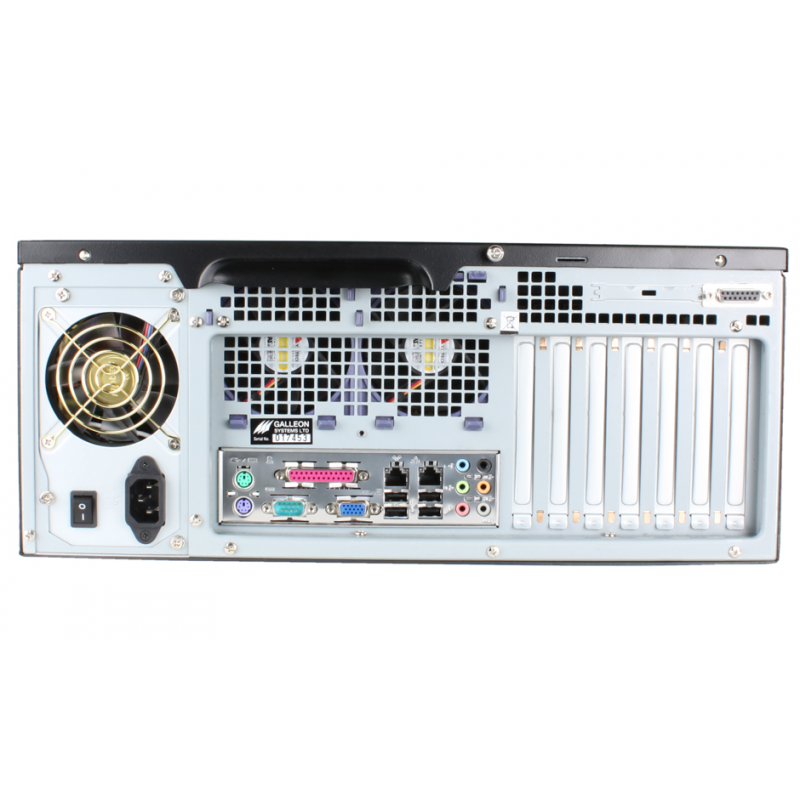

Rackmount dual time server NTS-8000
Rackmount dual time server NTS-8000

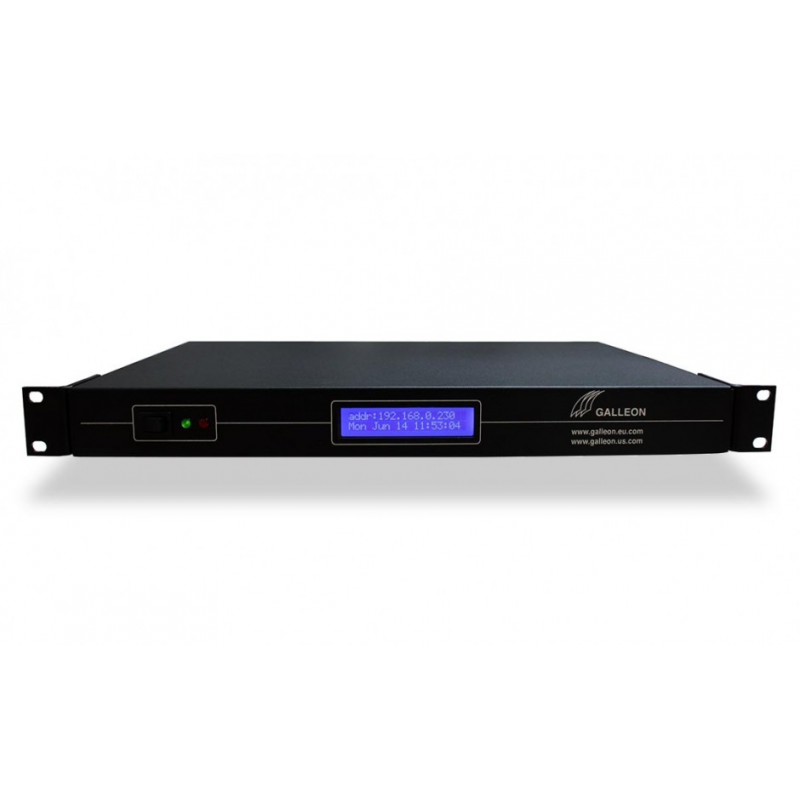

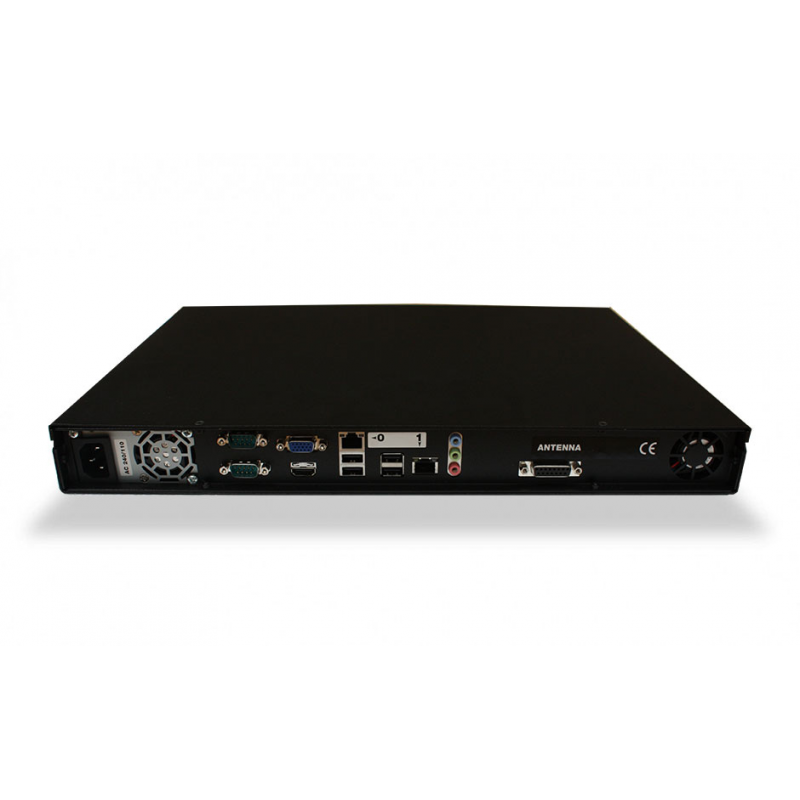

Rackmount dual time server NTS-6002
Rackmount dual time server NTS-6002

A rackmount dual time server receives accurate time from a GPS and radio source. Galleon Systems rackmount NTP servers can fit into a 19 inch rack. Dual time servers automatically receive time from the strongest source. If one source fails, then the other source will compensate. Galleon NTP servers are reliable, accurate and come with lifetime product support.

Contact Galleon Systems to benefit from reliable, synchronised time.


How does a dual time server work?

A rackmount dual time server connects to your network via an ethernet connection. The time server has two antennae. One antenna receives time from a radio source, and the other receives time from 12 satellites. The server then delivers that time to the devices on your network, such as clocks, PCs, phones and more. This ensures that each device displays synchronised time.

The GPS antenna must be placed outside with a clear view of the sky. The radio antenna is ideally placed outside, but it can also be positioned inside, near a window. An optional extension kit allows you to place the antennae up to 1000 metres from your NTP server, which ensures that you are always able to position the antennae in an optimal location.

Two time servers are available:

  • NTS-6002: Supplies time to two networks. Linux operating system.
  • NTS-8000: Supplies time to six networks: Windows operating system.

Contact Galleon Systems to discuss the best rackmount dual time server for your business.

Benefits of a rackmount dual time server

A dual time server is the most reliable time server available, because it receives time from two sources. Additionally, the server is manufactured to fit into a 19 inch rack with your existing equipment. Galleon Systems servers have a six-year warranty and lifetime customer support.

Synchronised time offers a number of benefits to your business or organisation:

  • Improved time-awareness
  • Increased productivity
  • Greater manufacturing efficiency
  • Synchronised business operations

A rackmount dual time server is ideal for a range of locations

Galleon Systems NTP servers are used worldwide by companies such as Ford, Rolls Royce, HP, Shell and Vodafone. They are suitable for any location that needs accurate time, such as:

  • Banks
  • Offices
  • Warehouses
  • Factories
  • Transport hubs
  • Shipping depots
  • Schools
  • Hospitals
  • Datacentres

Technical specifications

NTS-6002 NTS-8000

Receiver

GPS antenna

Radio antenna

GPS antenna

Radio antenna
Timing accuracy

Network: ± 8 milliseconds, typical
GPS/radio: <1>

Network: ± 12 milliseconds, typical
GPS/radio: <1>

NTP time requests

>500,000 requests per minute >3,000 requests per minute

Supported networks

Can supply time to 2 separate networks Can supply time to up to 6 separate networks

Mount

19 inch rackmount 19 inch rackmount

Operating system

Linux

Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections Multiple (up to 6) RJ-45 Network Connection 10/100 MBit
Product code

NTS-6002-GPS-MSF

NTS-8000-GPS-MSF

Contact Galleon Systems for prices and more information about a rackmount dual time server.


Contact Galleon Systems
