Secure NTP network time server

NTP network time server [NTS-8000-GPS]

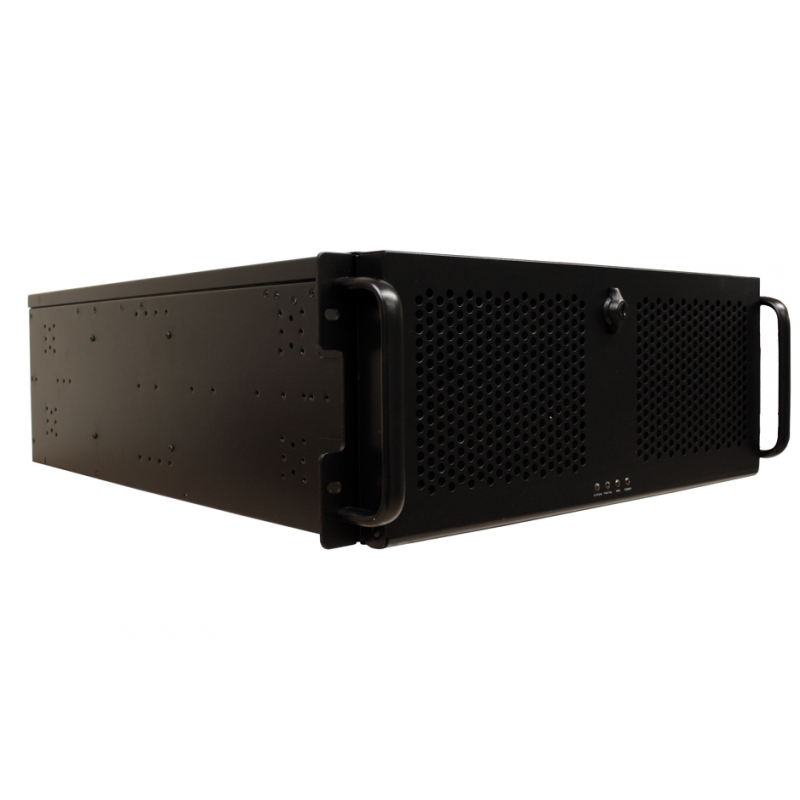

NTP network time server, side view

Galleon Systems’ NTP network time server combines a GPS clock/receiver with a Windows server based computer allowing all the standard options available with Windows.

The unit connects directly to your network via a CAT5 ethernet connection and fits in a standard 19” rack. This NTP server incorporates a GPS clock and remote GPS antenna. The antenna tracks up to 12 (or 24) satellites for increased precision and is fully weatherproof (IP65) as it must be installed externally.

The NTS-8000-GPS can be built with multiple (currently up to 6) ethernet ports enabling it to serve time to multiple independent networks, and can handle more than 3,000 NTP requests per minute per network, making it the first choice for providing accurate time information to very large networks with thousands of clients.

Contact us now for more details.


NTP network time server

Benefits

  • Secure stratum 1 NTP time server
  • Tracks 12 satellites for increased precision
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Supports both TCP/IP networks
  • Up to Six RJ-45 ethernet interfaces 10/100/1000 Mbit, so can provide time for six independent networks
  • Configured across networks via pre-installed software, TimeSync
  • Can handle more than 3,000 NTP requests per minute, per port; ideal for large networks
  • MD5 authentication for advanced security
  • Able to peer with other NTP time servers for enhanced synchronisation security
  • Front panel display for time, and satellite and radio time status
  • SNTP and NTP protocol support
  • Syslog error reporting

For technical specifications, contact us now.

Product specifications for the NTP network time server

Receiver Active 12 channel GPS antenna
Timing accuracy Network: ± 12 milliseconds, typical
GPS: <1>

NTP Time Requests:

>3,000 requests per minute

Supported Networks:

Can supply time to 6 separate networks

Housing:

Standard 19" rackmount (2U)
Display: LC-display, 2 x 20 characters, with backlight
Operating System: Windows Server 2016
Protocols (NTP & SNTP): NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network Interface: Multiple (up to 6) RJ-45 Network Connection 10/100/1000 MBit
Power supply:

85 - 260V, 47 - 63Hz

Operating Temperature:

0-50°C / 32-122°F

Operating Humidity: Max. 85%

The NTP network time server includes the following

  • NTS-8000-GPS unit
  • GPS antenna (with 10m/8 core cable)
  • Power lead
  • NTP TimeSync software
  • Instruction manual on a USB stick

Optional

  • Extended antenna cable (100 to 1,000 metres)
  • Junction box (to extend antenna cable)
  • IDC cable tool (to insert cable in the junction box)
  • Additional antenna power supply (recommended from 150 metres onwards)

Extras

  • Gold and Premium support package
  • Digital wall clock
  • Lightning arrestor
  • Additional software licence (5 to 300+ clients)
