Secure NTP server hardware

GPS NTP time server [NTS-8000-GPS]

NTP server hardware

Galleon Systems’ NTP server hardware offers you a reliable and secure method to synchronise accurate time within your business. The NTP server operates from inside the perimeter of your firewall, meaning it doesn’t breach your cyber security.

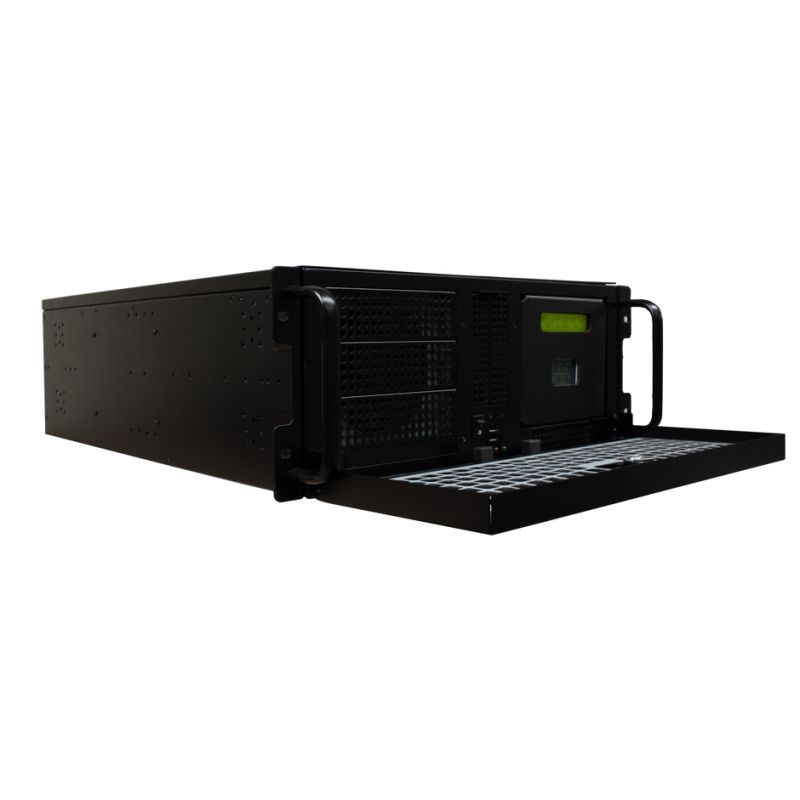

The hardware includes a GPS antenna and a 19-inch server with a Windows-based operating system. The antenna tracks 12 satellites, is weatherproof to IP65 standard, and can be mounted 1,000m away from the server unit (using the appropriate extension).

The NTP sever synchronises and provides accurate time to workstations and PoE digital clocks within the network and can serve six independent networks simultaneously.

Contact us now for more details.

NTP server hardware


  • Secure stratum 1 NTP time server
  • Tracks 12 satellites for increased precision
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Supports both TCP/IP networks
  • Six RJ-45 ethernet interfaces 10/100/1000 Mbit, so can provide time for six independent networks
  • Configured across networks via a pre-installed software, TimeSync
  • Can handle more than 3,000 NTP requests per minute, per port; ideal for large networks
  • MD5 authentication for advanced security
  • Able to peer with other NTP time servers for enhanced synchronisation security
  • Front panel display for time, and satellite and radio time status
  • SNTP and NTP protocol support
  • Syslog error reporting

For technical specifications, contact us now.

The NTP server hardware includes the following

  • NTS-8000-GPS unit
  • GPS antenna (with 10m/8 core cable)
  • Power lead
  • NTP TimeSync software
  • Instruction manual on a USB stick


  • Extended antenna cable (100 to 1,000 metres)
  • Junction box (to extend antenna cable)
  • IDC cable tool (to insert cable in the junction box)
  • Additional antenna power supply (recommended from 150 metres onwards)


  • Gold and Premium support package
  • Digital wall clock
  • Lightning arrestor
  • Additional software license (5 to 300+ clients)

Galleon Systems

Galleon Systems has over 20 years of international experience in providing network time servers, time synchronisation, and network clocks. Galleon Systems’ products are used by Buckingham Palace, 3M, Rolls-Royce, Vodafone, Tesco, Ford, Bank of England, Sharp, Kellogg’s, Shell, and many more.

Galleon System offers:

  • Six-year warranty
  • Lifetime support
  • FCC certificate
  • CE certificate
